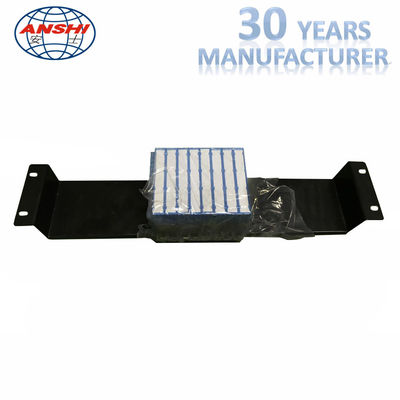

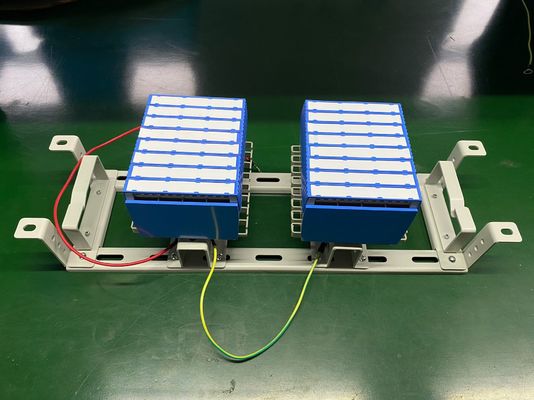

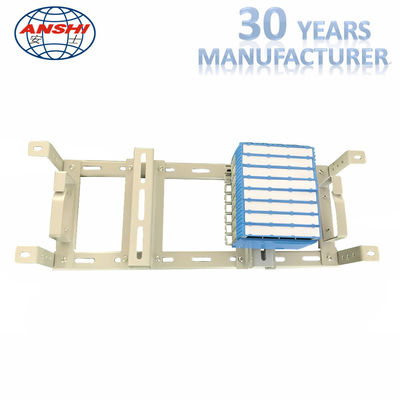

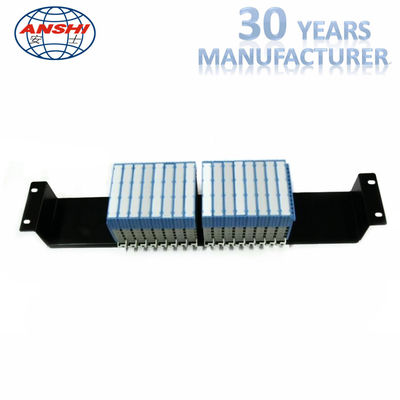

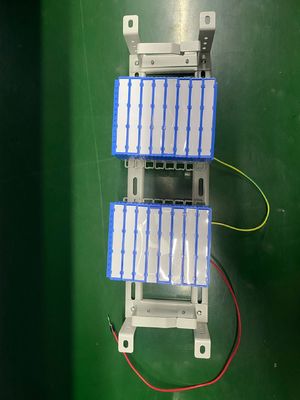

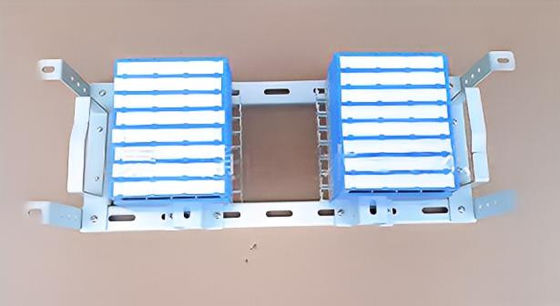

Digital Distribution Frame with 120 Ohm Impedance for Digital Signals Transfer MDF Main Distribution Frame
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | DDF 120 Ohm Unit Module | Color | Blue And White |
|---|---|---|---|
| System | 16 / 32 / 48 / Can Design | Size | 100mm X 120mm X 116mm |
| Weight | 949g | Application | Telecommunication |
| Highlight | Telecommunication Mdf Distribution Frame,120 Ohm Main Distribution Frame |
||
Product Description
Digital Distribution Frame with 120 Ohm Impedance for Digital Signals Transfer MDF Main Distribution Frame
The digital distribution frame (DDF) is a wiring connection device between digital multiplexing devices, digital multiplexing devices, and program-controlled devices or non-voice services. There are 75Ω unbalanced and 120Ω balanced distribution frames. This file is for 120Ω
Feature and benefit
Main technical parameters
1 Environmental requirements
1.1 Conditions of use
Working temperature: +5 ℃ ~ +40℃
Relative humidity: no more than 85% (at +30℃)
Atmospheric pressure: 70kPa ~ 106kPa
1.2 Storage temperature: -40℃~ +55 ℃
2 Appearance and structure
3 Electrical performance
3.1 Working rate: 2Mbit/s
3.2 Characteristic impedance: 120Ω (nominal value)
3.3 Insulation resistance: The insulation resistance between the two terminals of the balanced connector and between any terminal and the casing or fixture shall not be less than that specified in Table 1. The DC voltage of the measuring circuit is 500V ± 50V.
