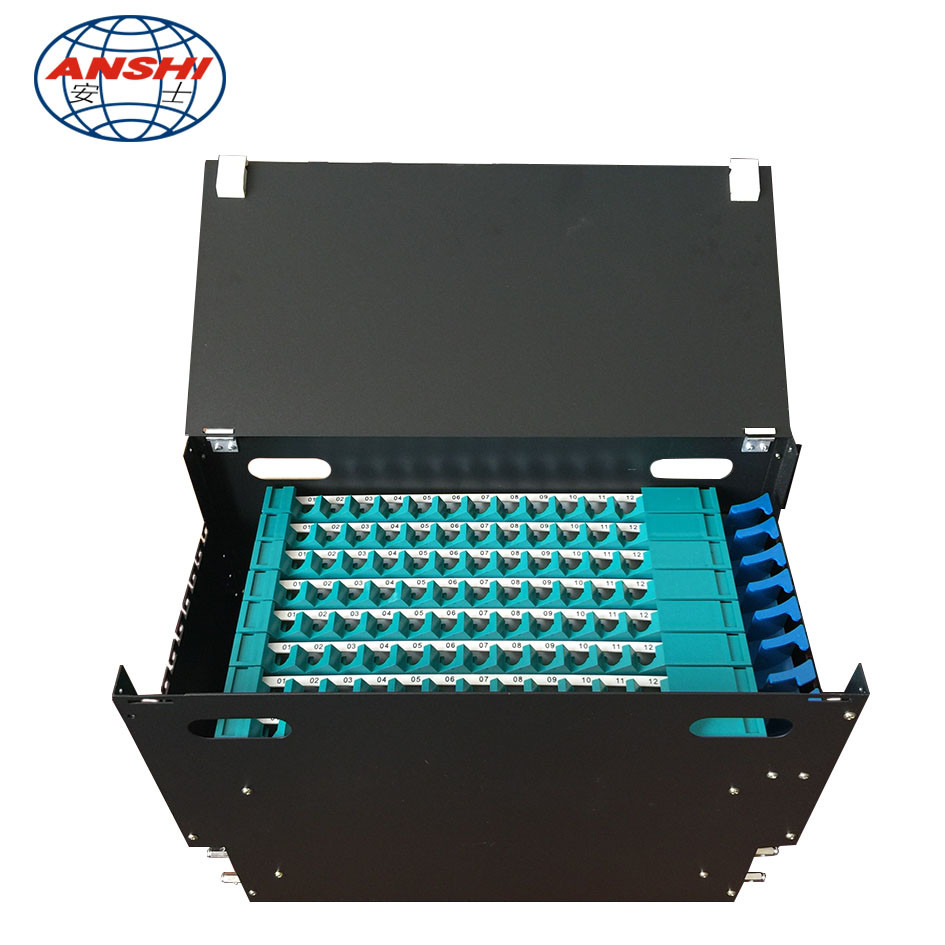

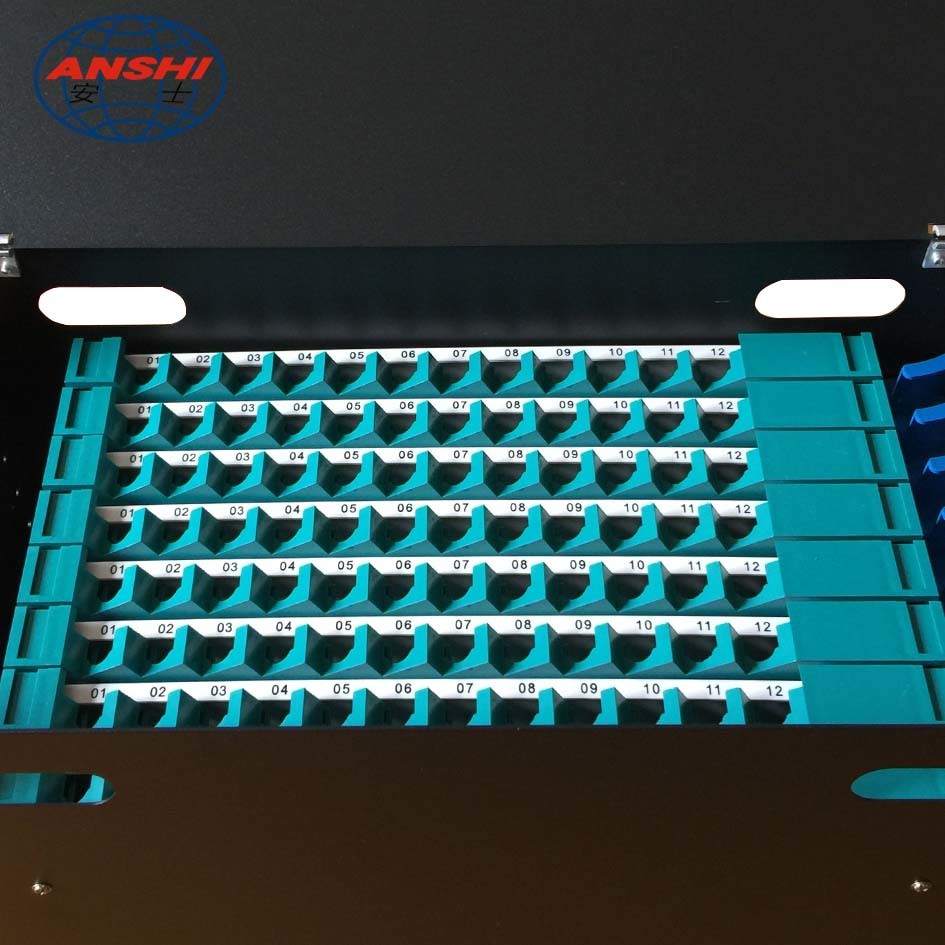

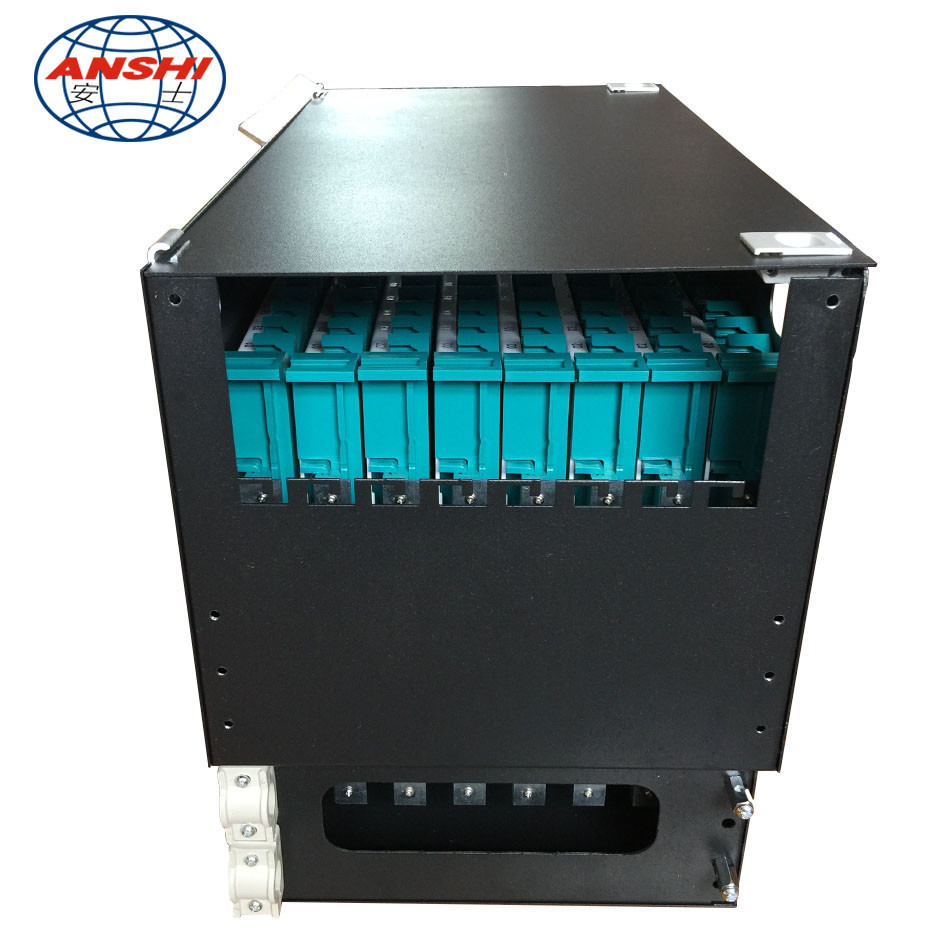

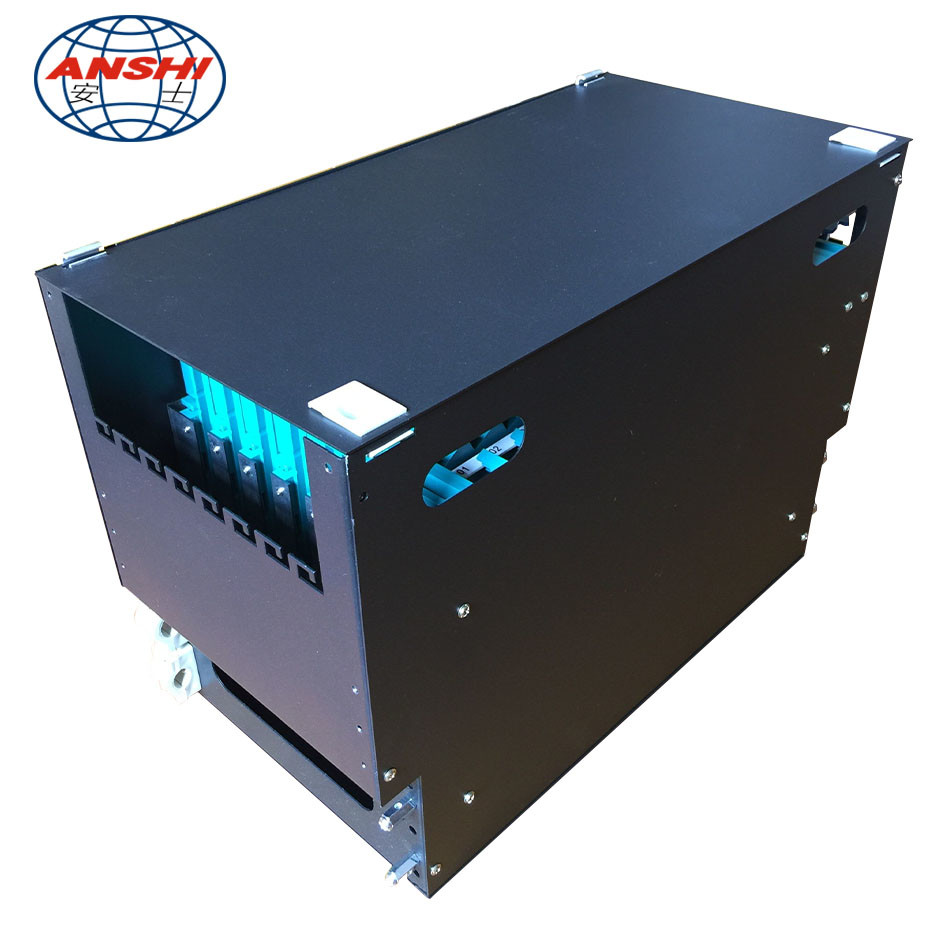

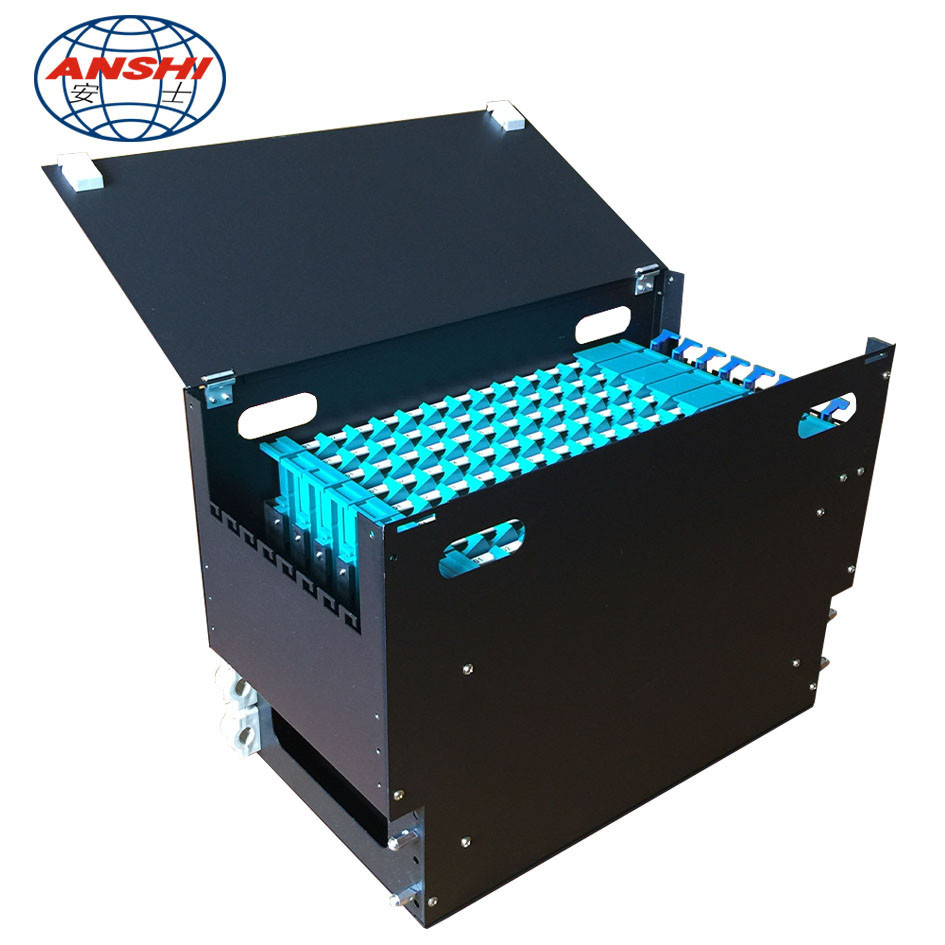

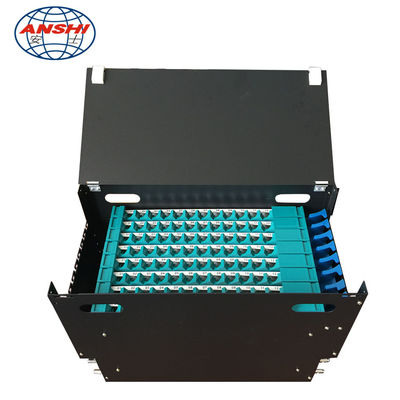

Rack Mount Optical Fiber Distribution Frame

96 Core Optical Distribution Frame Rack Mount Fiber Optic Patch Panel Standard Frame

Features:

1)  19" standard frame is used
2)  Designed by full modulization:
a)  Unit box has such functions as optical fiber fusion, tray storing and
distribution
b)  Each fusion module can be singly taken out to meet the demands for
operating frame
3)  Optical cable, pigtail fiber and patch cords can be clearly monitored
4)  Convenient operation can still be guaranteed even though the capacity
has reached its maximum
5)  Such adaptors as FC, SC can be installed by the fusion module
6)  Working temperature: -5 – 40°C
7)  Relative humidity: ≤85% (30°C)
8)  Air pressure: 70 - 106kPa
9)  Standard working wavelength: 850nm, 1,310nm, 1,550nm
10)  Connector loss: ≤0.5dB
11)  Back wave loss:
a) PC: ≥40dB
b) UPC: ≥50dB
c) APC: ≥60dB
12)  Resistance to voltage between high-voltage protection ground and
frame: ≥3KV (DC) / 1min no puncture or arc
13)  Insulation resistance between high-voltage protection ground and
frame: ≥1,000m&Omega / 500V (DC)
14)  Life: 1,000 times

Properties:

• Suitable for the protective connection between cables and pigtails
• Suitable for the connection between optical cables and optical communication device
• unique structure, easy installation, for indoor use

Classification:

Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

• capacity: 12,24,32,48,64,72,96 splices
• 19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
• Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
• Suitable for ribbon and bunchy fiber cable
