Home ProductsCable Distribution Box

LSA Profile Module Optical Termination Box

LSA Profile Module Optical Termination Box

  • LSA Profile Module Optical Termination Box
  • LSA Profile Module Optical Termination Box

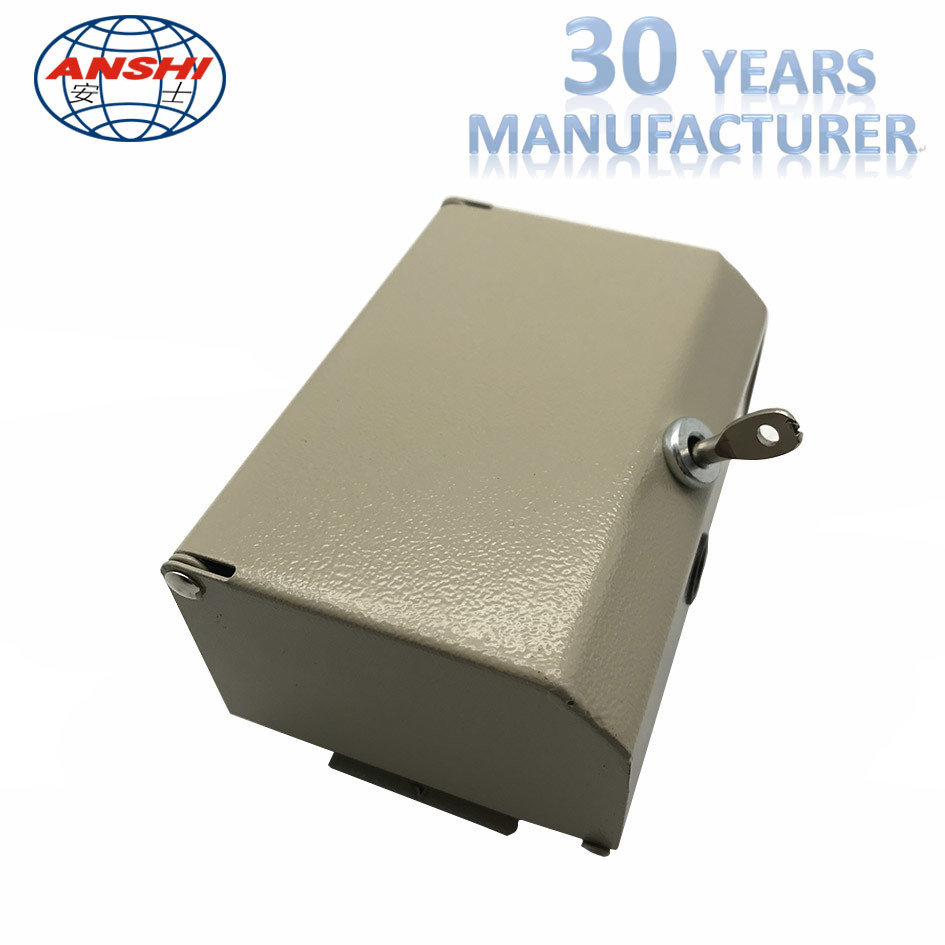

LSA Profile Module Optical Termination Box
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: ISO 90001, SGS, DAS
Model Number: XL-026H-20
Payment & Shipping Terms:
Minimum Order Quantity: Can Discuss
Price: Negotiable
Supply Ability: 5000 Pieces per Month
Contact Now
Detailed Product Description
Product: Copper Outdoor Termination Box Material: Metal
Color: White Type: 20 Pairs
Lock: Key
High Light:

ftth distribution box

,

indoor distribution box

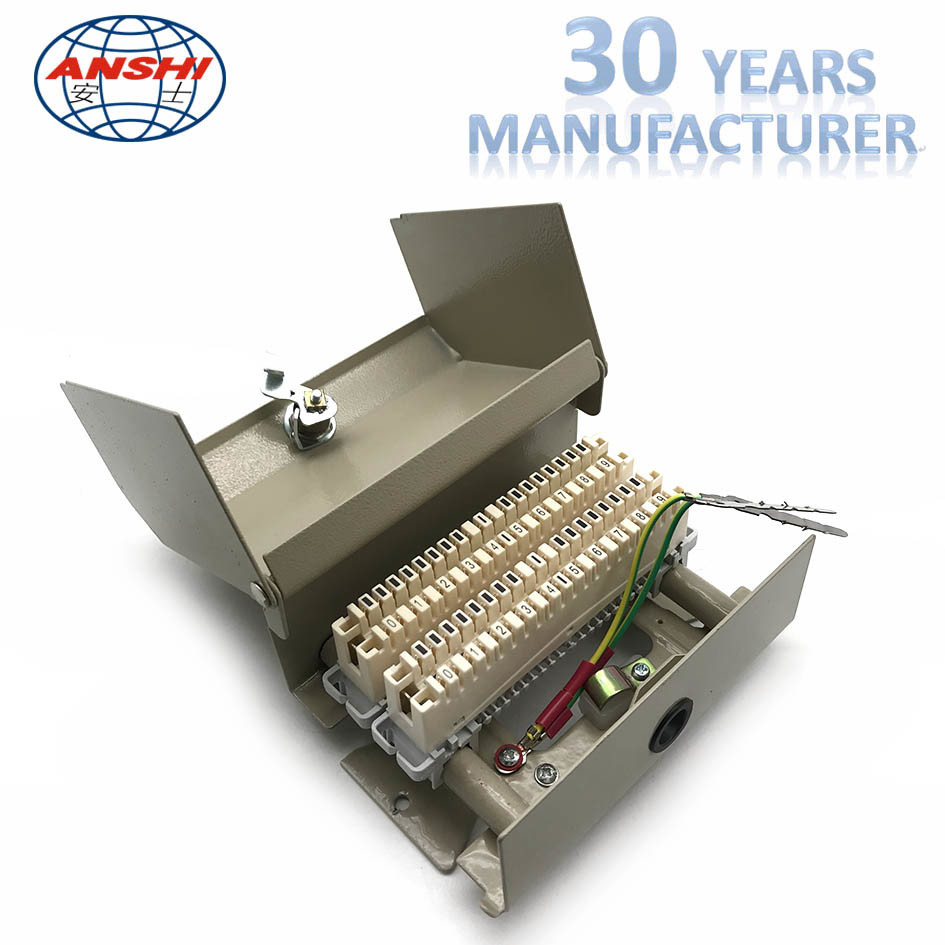

20 Pairs Metal Distribution Box with earthing system with LSA Profile Module




Specifications:

1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
2. The modules are compatible with KRONE LSA-PLUS modules.
3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
5. Internal diameter of connection wire: 0.4-0.6 mm
6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard

7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections
8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition
9. Intermediate resistance: no more than 3m ohm under standard examination condition
10. Dielectric strength: according to industry standard
11. Specification:60-100 pairs,Waterless,every specification has connection or disconnection types
12. Life: durability 200 cycles


LSA Profile Module Optical Termination Box 0LSA Profile Module Optical Termination Box 1

LSA Profile Module Optical Termination Box 2

LSA Profile Module Optical Termination Box 3
