High Speed, High Quality, Best Service
Place of Origin: | China |
Brand Name: | ANSHI |
Certification: | ISO9001 |
Model Number: | AS-FPC-MPO-LC |
Minimum Order Quantity: | CAN DISCUSS |
---|---|
Price: | Negotiable |
Supply Ability: | 100000 pcs per month |
Name: | MPO Fiber Optical Patch Cord | No. Of Fiber: | 12 Core |
---|---|---|---|
Connector Type: | MPO-LC (Can Customize) | Length: | 1m,2m,3m... Can Customize |
Fiber Type: | Multimode | Tensile Strength: | ≥10KGS |
Repeatability: | ≤0.1 | Insertion Loss: | 0.3dB |
High Light: | Fiber Optic Jumper Cables,Duplex Fiber Optic Cable |

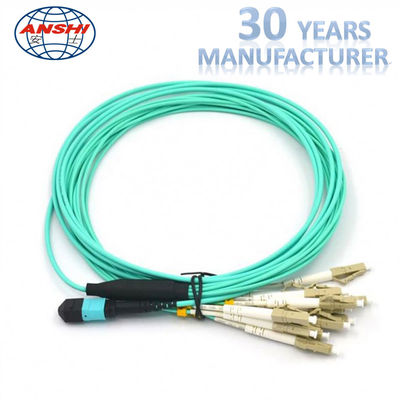

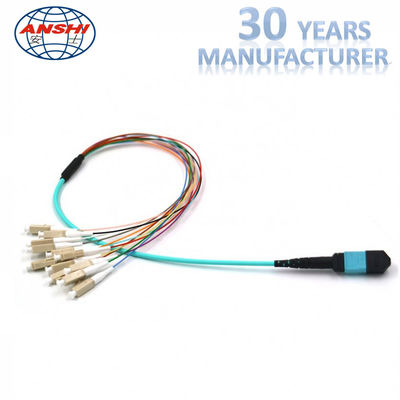

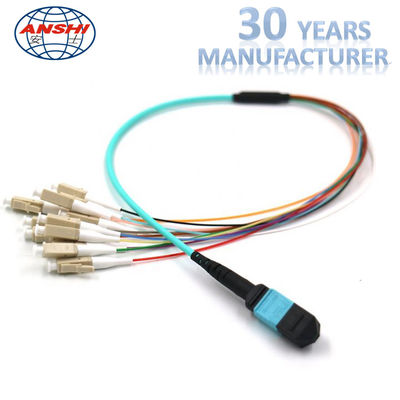

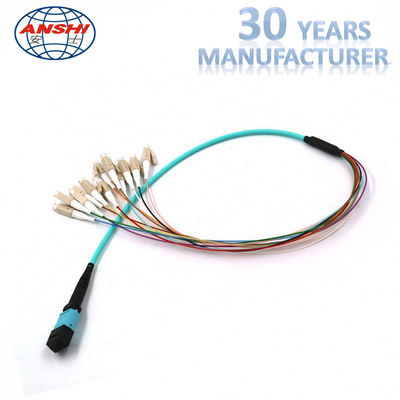

mpo connector Fanout 12 core multimode MPO OM3 Fiber Optical Patch Cord
cable connector
MPO fiber cable is applicable in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing space and cost saving. It used the plug-in lock structure and easy to operate.
Features
Low insertion loss and high reflection loss
Good Durability,High stability
Good exchangeability
Male and female connector type
Muti core optical fiber connecto
Specifications | ||
MTP/MPO Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.70 (Standard) | ≤0.70 (Standard) |
≤0.35 (Elite) | ≤0.35 (Elite) | |
Return Loss (dB)
|
≥60 | ≥20 |
Durability (dB) | ≤0.2 (500 times mating) | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | -20 ~ +70 | |
LC/SC/FC/ST/E2000 Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.30 | ≤0.30 |
Return Loss (dB) | ≥60 | ≥20 |
Durability (dB) | ≤0.2 500 times mating | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | -20 ~ +70 |
Fiber Specification | ||||||
Fiber Type | Multimode | Single Mode | ||||
OM1 | OM2 | OM3 | OM4 | G.652 | G.657 | |
Core Diameter (um) | 62.5/125 | 50/125 | 50/125 | 50/125 | 9/125 | 9/125 |
Wavelengths (nm) | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 1310/1550 | 1310/1550 |
Max. Attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.36/0.25 | 0.36/0.25 |
Min. OFL Bandwidth (MHz·km) | 200/500 | 500/500 | 1500/500 | 3500/500 | - | - |
Min. Effective Modal Bandwidth (MHz·km) | - | 500 | 2000 | 4700 | - | - |
