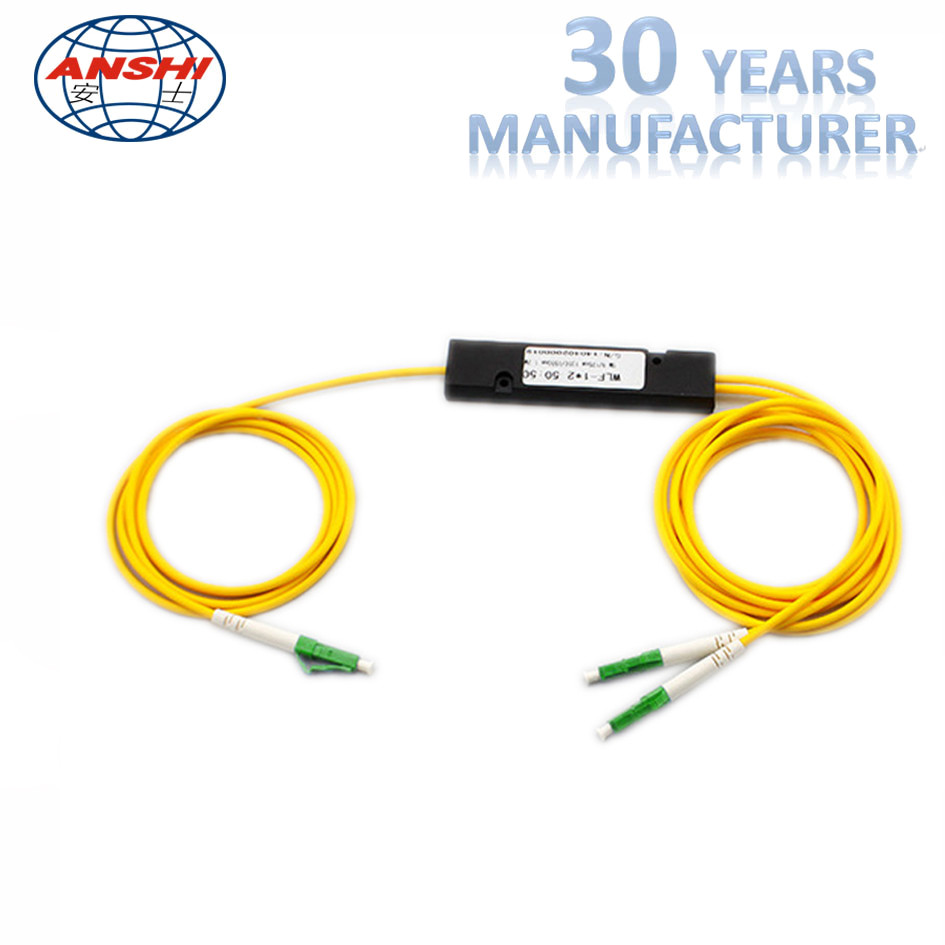

Single Mode FTTH Distribution Box Optical Coupler 1x2 LC APC PLC Splitter FBT

Single Mode FTTH Distribution Box Optical Coupler 1x2 LC APC PLC Splitter FBT

  • Single Mode FTTH Distribution Box Optical Coupler 1x2 LC APC PLC Splitter FBT
Single Mode FTTH Distribution Box Optical Coupler 1x2 LC APC PLC Splitter FBT
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ISO9001, SGS
Model Number: AS-ODF-1X2FLP
Payment & Shipping Terms:
Minimum Order Quantity: Can Discuss
Price: Negotiable
Delivery Time: 10000pcs/week
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Name: 1X2 Optic Plc Splitter Connector Type: LC/APC
Channel Number: 8 Way Insertion Loss: ≤0.20
Wavelength: 1310nm/1490nm/ 1550nm Application: CATV/FTTH/LAN/PON
High Light:

Fiber Optic Distribution Box

,

Outdoor Distribution Box

Single Mode Optical Coupler 1x2 Fiber Optic LC APC PLC Splitter FBT







Optical Characteristics

Category Specification Remarks
Test Wavelength nm 1310&1490&1550

Insertion Loss

( exclude connector loss)

 U Grade MAX dB 7.1
P Grade 7.2
S Grade 7.4

Insertion Loss

(With connector loss)

 U Grade MAX dB 7.4
P Grade 7.5
S Grade 7.7
Channel Uniformity MAX dB 0.6
Polarization Dependent Loss-PDL MAX dB 0.2
Directivity MIN dB 55
Return Loss MIN dB 55
Adapter Insertion Loss MAX dB N/A
Working Wavelength NM 1260~1650
Storage Temperature ℃ -40~+85
Operating Temperature ℃ -40~+85

2.2 Optical cable and other requirements





Category Specification Remarks
Fiber Cable Fiber Type G657A or G652
Outer diameter 900um
Tube Material Hytrel or Requirements
Tube Colour Translucent or Chromatic
Input endface Length:L1 L1±5mm L1≥0.3M
Output endface Length:L2 L2±5mm L2≥0.3M
Connector type Input endface SC,FC,LC
Output endface SC,FC,LC
Number tube NO: IN/Input No./Output





3. Insertion Loss



- Test Wavelength: 1310-1550 nm



- Required Value:P Grade



- Test can be performed on any channel



4. Return Loss



- Test Wavelength: 1310-1550 nm



- Required Value:>55dB



- Test can be performed on any channel



5. Directivity



- Test wavelength: 1310-1550 nm



- Required Value:>55 dB



6. On Dependent Loss-PDL



- Test Wavelength: 1310-1550 nm



- Required Value:< 0.2 dB
