FC / UPC Connector FTTH Distribution Box 8 Way 1310nm / 1490nm Wavelength

  • FC / UPC Connector FTTH Distribution Box 8 Way 1310nm / 1490nm Wavelength
  • FC / UPC Connector FTTH Distribution Box 8 Way 1310nm / 1490nm Wavelength
  • FC / UPC Connector FTTH Distribution Box 8 Way 1310nm / 1490nm Wavelength
Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ODF-1X2FLP
Minimum Order Quantity Can Discuss
Price Negotiable
Delivery Time 10000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 1X2 Optic Plc Splitter Connector Type FC/UPC
Channel Number 8 Way Insertion Loss ≤0.20
Wavelength 1310nm/1490nm/ 1550nm Application CATV/FTTH/LAN/PON
Highlight

Fiber Optic Distribution Box

,

Outdoor Distribution Box
Leave a Message
Product Description

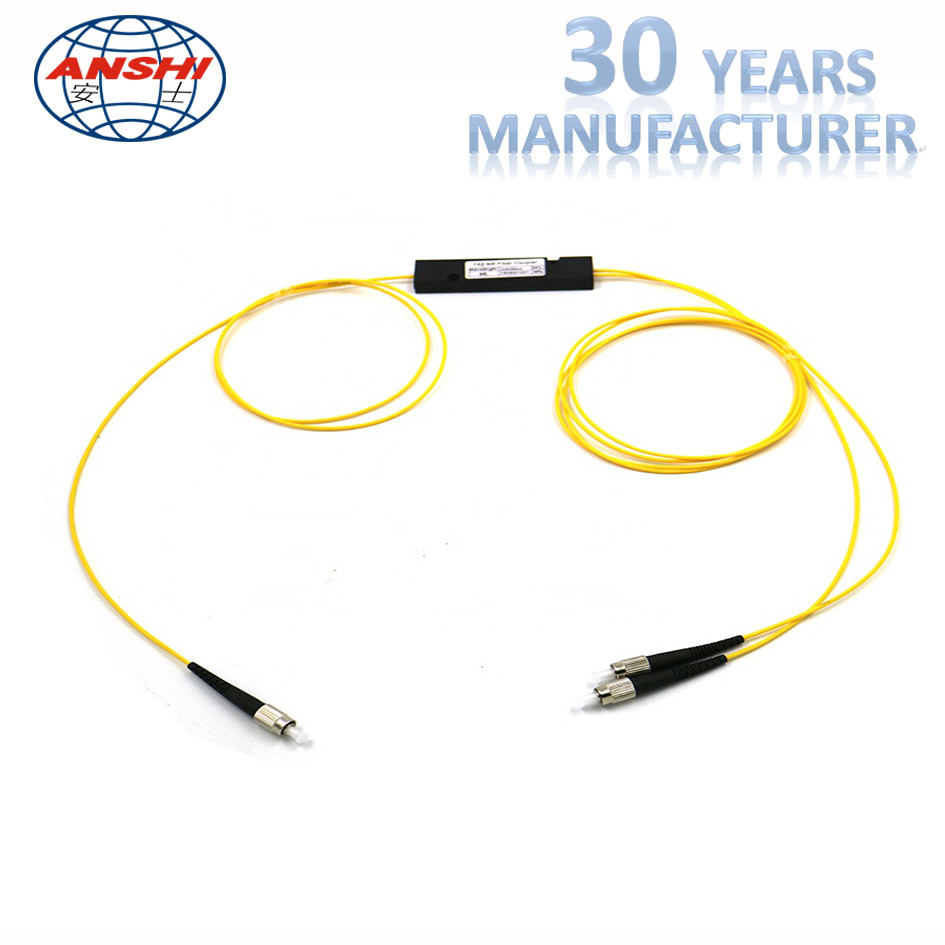

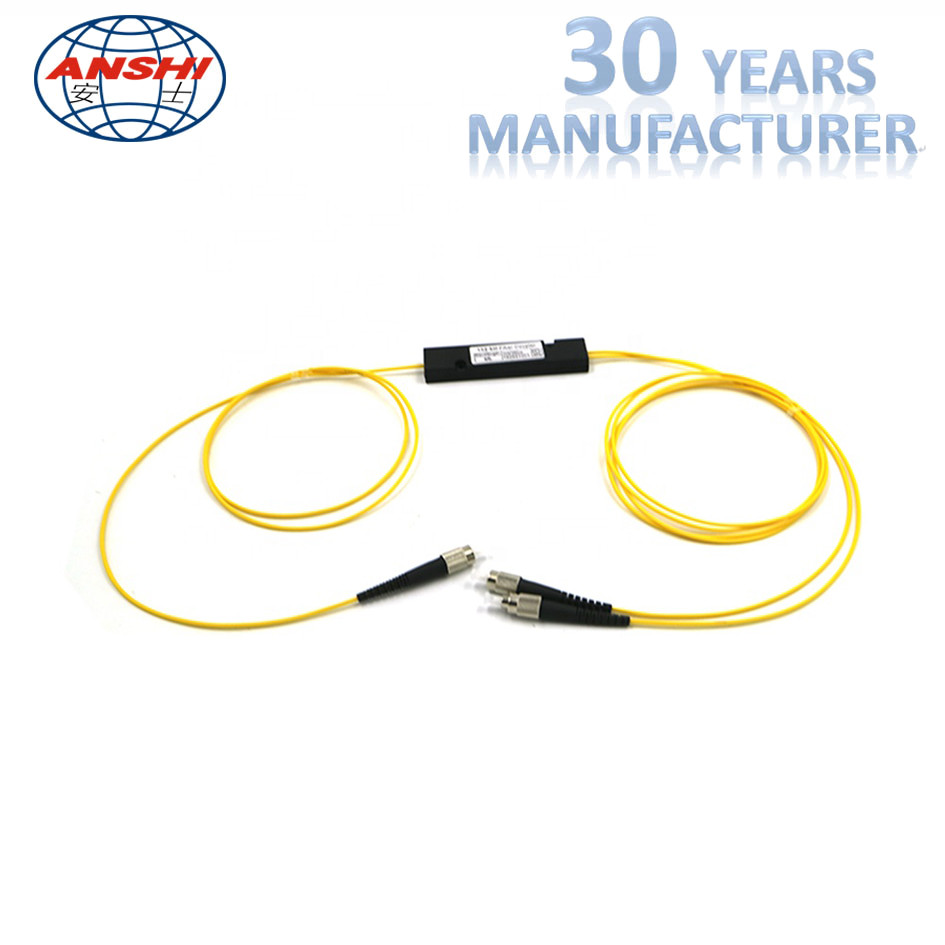

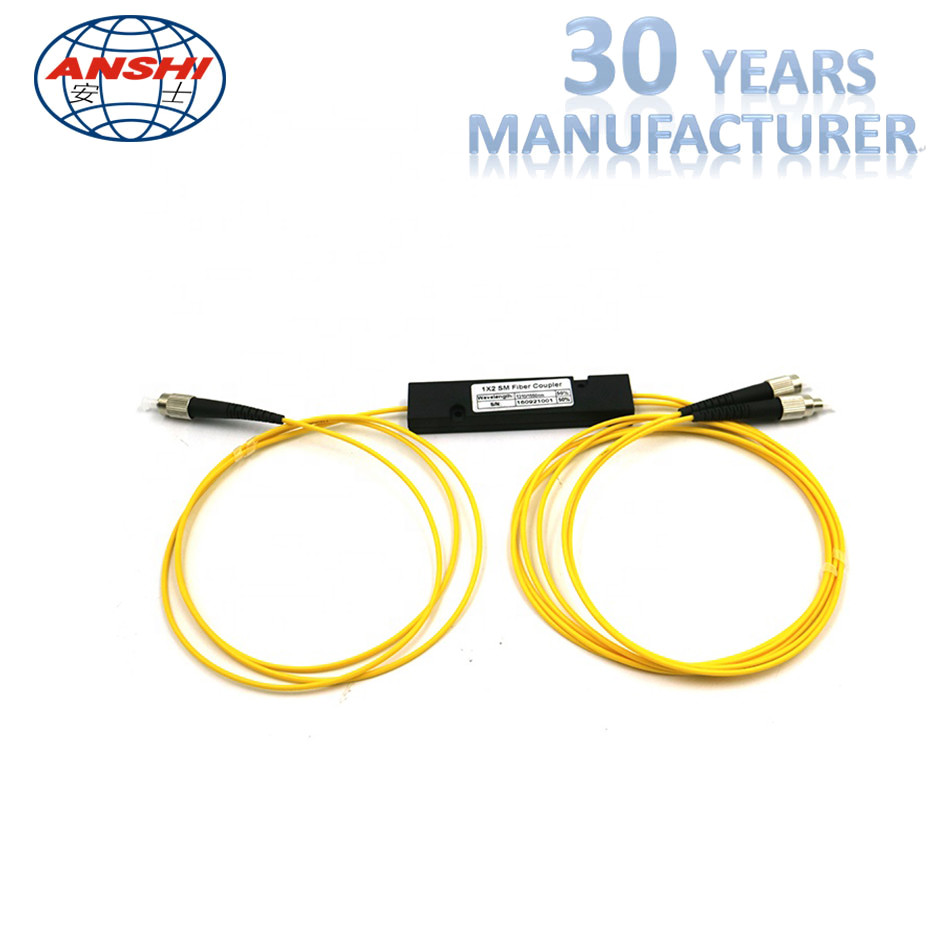

Single Mode Optical Coupler 1x2 Fiber Optic FC UPC PLC Splitter FBT







Optical Characteristics

Category Specification Remarks
Test Wavelength nm 1310&1490&1550

Insertion Loss

( exclude connector loss)

 U Grade MAX dB 7.1
P Grade 7.2
S Grade 7.4

Insertion Loss

(With connector loss)

 U Grade MAX dB 7.4
P Grade 7.5
S Grade 7.7
Channel Uniformity MAX dB 0.6
Polarization Dependent Loss-PDL MAX dB 0.2
Directivity MIN dB 55
Return Loss MIN dB 55
Adapter Insertion Loss MAX dB N/A
Working Wavelength NM 1260~1650
Storage Temperature ℃ -40~+85
Operating Temperature ℃ -40~+85

2.2 Optical cable and other requirements





Category Specification Remarks
Fiber Cable Fiber Type G657A or G652
Outer diameter 900um
Tube Material Hytrel or Requirements
Tube Colour Translucent or Chromatic
Input endface Length:L1 L1±5mm L1≥0.3M
Output endface Length:L2 L2±5mm L2≥0.3M
Connector type Input endface SC,FC,LC
Output endface SC,FC,LC
Number tube NO: IN/Input No./Output





3. Insertion Loss



- Test Wavelength: 1310-1550 nm



- Required Value:P Grade



- Test can be performed on any channel



4. Return Loss



- Test Wavelength: 1310-1550 nm



- Required Value:>55dB



- Test can be performed on any channel



5. Directivity



- Test wavelength: 1310-1550 nm



- Required Value:>55 dB



6. On Dependent Loss-PDL



- Test Wavelength: 1310-1550 nm



- Required Value:< 0.2 dB



FC / UPC Connector FTTH Distribution Box 8 Way 1310nm / 1490nm Wavelength 0
