Small Volume Ftth Fiber Optic Terminal Box SC / APC Connector With ISO9001
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 1X8 Optic Plc Splitter | Connector Type | SC/APC |
|---|---|---|---|
| Channel Number | 8 Way | Insertion Loss | ≤0.20 |
| Wavelength | 1310nm/1490nm/ 1550nm | Application | CATV/FTTH/LAN/PON |
| Highlight | Fiber Optic Distribution Box,Outdoor Distribution Box |
||
Product Description

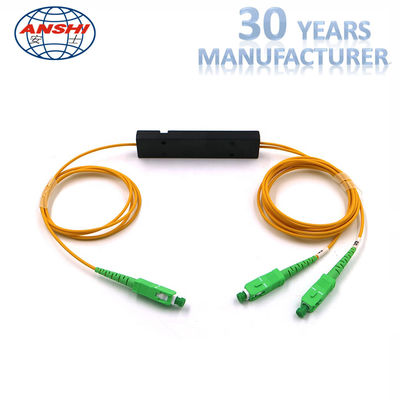

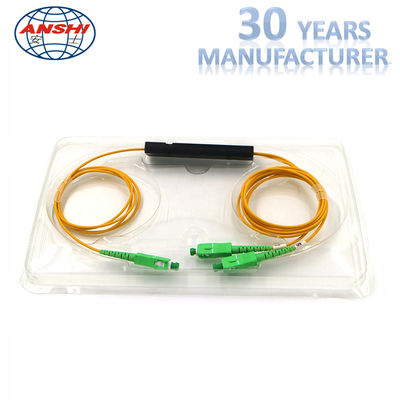

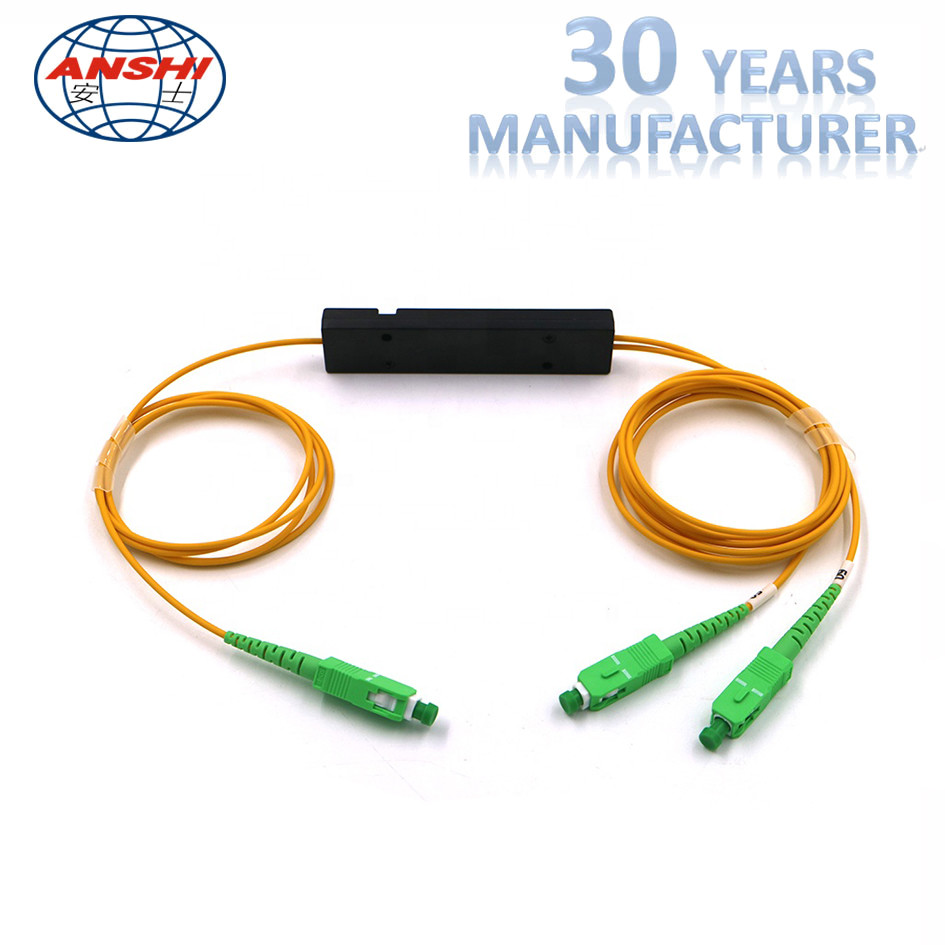

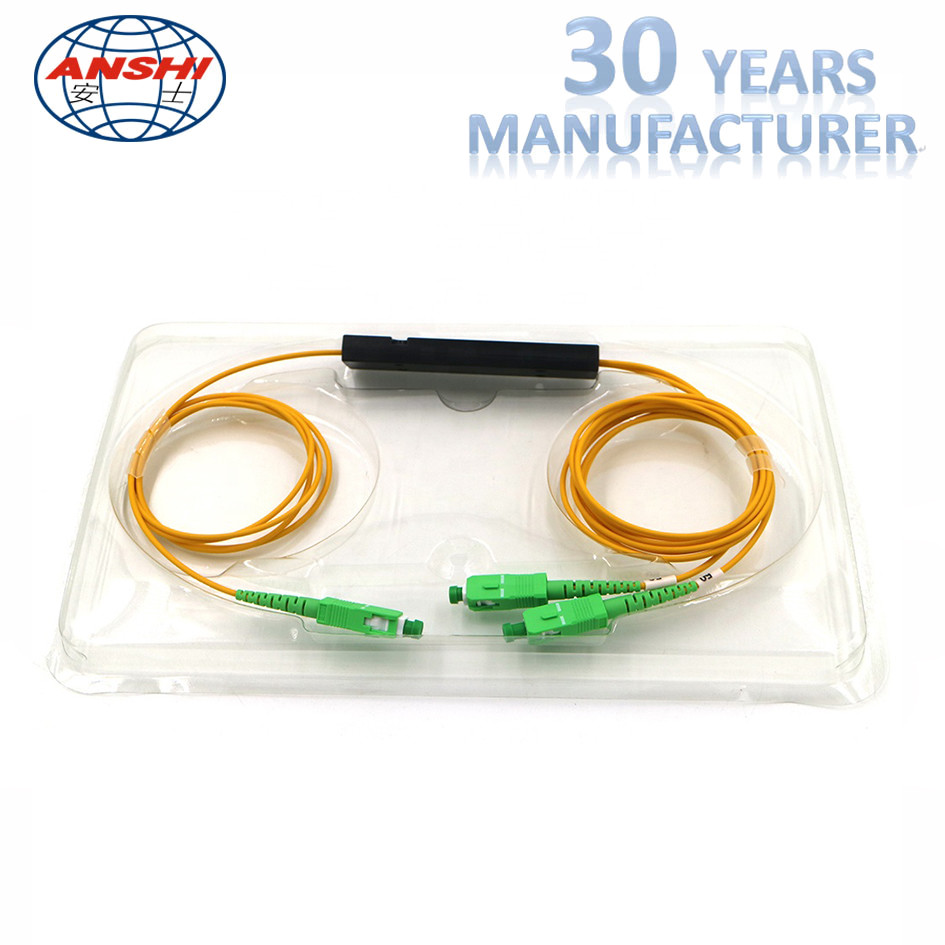

Single Mode Optical Coupler 1x2 Fiber Optic SC APC PLC Splitter FBT
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.
Qingdao APT provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet "YD/T1117-2001 All optical fiber branching device technical conditions","YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter"etc, and are certified by TLC for network deployment.
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | G657A1 or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| (-40~85 ℃)(dB) | ||||||
| Operating Temperature (℃) | -40~85 | |||||
| Storage Temperature (℃) | -40~85 | |||||
| Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 |
| Module Dimension (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) | 50×7×4 | 50×7×4 | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
Features
1)Can be continuously covered with different fibers
2)Full fiber core structure
3)Can be resued
4)Fiber types optional
5)Low additional loss
6)Low insertion loss
7)2*2,1*2,1*4,....1*128 types optional,etc
Application
1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems
