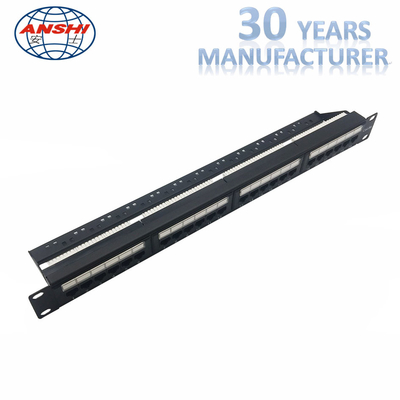

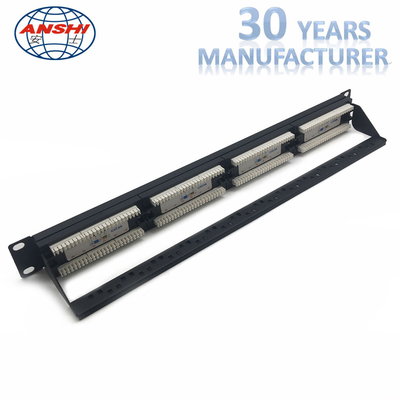

110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color

110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color

  • 110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color
  • 110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color
110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: SGS, DAS, ISO9001
Model Number: XL-4017
Payment & Shipping Terms:
Minimum Order Quantity: CAN DISCUSS
Price: Negotiable
Packaging Details: 1pc/Box, 25 Boxes/Carton
Supply Ability: 5000 Pieces Per Week
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Material: Cold Roll Steel Color: Black
Category: CAT6A UTP Size: 19'', 1U
Type: 110 IDC Application: Networking; Cabling
High Light:

unshielded patch panel

,

1u 24 port patch panel

19 inch 1U RJ45 CAT6 Unshield UTP 110 IDC Rack Mount PATCH PANEL WITH CABLE MANAGER



Standard requirements:

  • Meets ANSI/TIA/EIA-568-B.2 Category 6 requirements.
  • Meets TIA/EIATSB-40
  • Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
  • Meets CENELEC Generic Cabling Standard EN50173-1:2002.

Material :

  • Housing:0.06''(1.6mm) thicknss steel.
  • Cover:0.039''(1mm) thickness steel.
  • PCB(Printed circuit board): FR-4 0.06''(1.6mm) thickness,2/ayers.
  • Contacts: 0.018''(0.45mm) Phosphor bronze wth 50 micro inches(1.27 micron)
  • Gold plating on contact area
  • IDC: PC UL94V-O

Electrical Characteristics:

  • According to UL1863
  • Current rating :1.5A Max
  • Voltage Rating: 150V
  • Contact resistance: 20m-ohm
  • Insulation resistance:500M-ohm
  • Dielectric withstand voltage:1000V AC RMS,60Hz/min.

110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color 0110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color 1110 Idc Cat6a Utp Patch Panel 19 Inch Unshield UTP With Cable Manager Black Color 2

Tag:

unshielded patch panel,

1u 24 port patch panel,

50 port voice patch panel
