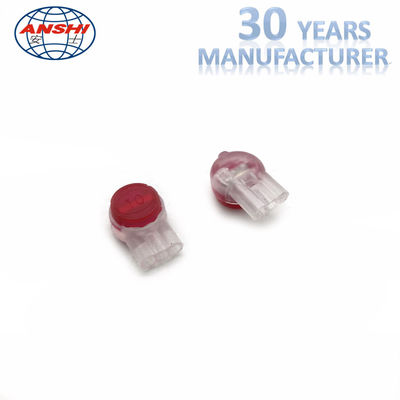

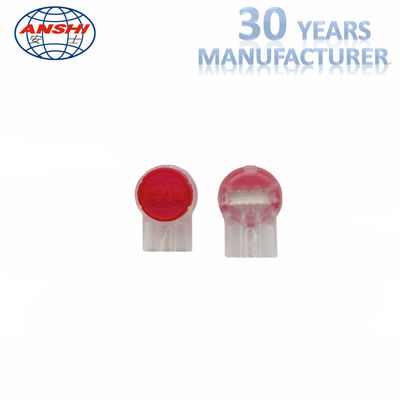

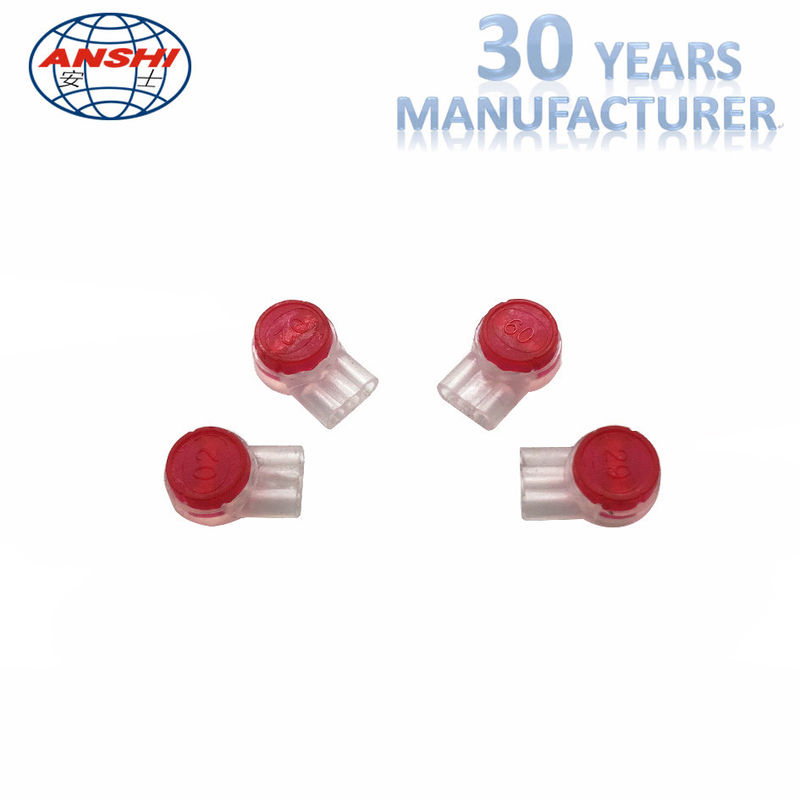

UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication

UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication

    • UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication
    • UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication
    • UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication
  • UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication

    Product Details:

    Place of Origin: CHINA
    Brand Name: ANSHI
    Certification: ISO9001
    Model Number: XL-023UR2

    Payment & Shipping Terms:

    Minimum Order Quantity: 20000
    Price: Negotiable
    Packaging Details: 10000/ctn
    Delivery Time: 1000000pcs/week
    Contact Now
    Detailed Product Description
    Name: 3m Scotchlok Connectors Diameter: 0.4-0.9
    Maximum Insulation: 0.082"(2.08) Gender: Female
    Type: Communication Parts Color: Green
    Application: Wire, All Electric Area

    UR2 3m Scotchlok Wire Connectors 0.9-1.3 Red Lock Joint Connector




    The UR2, solvent resistant connectors, accept two or three solid copper conductors that can be of different wire gauges, for butt splicing. The UR2 connectors are filled with a sealant to provide moisture resistance. The UR2 connector is available in a dry version, UR2-D connector. RUS Listed.



    Cable Type
    PIC
    Composition
    Filled
    Connector Type
    Butt/2 or 3 Conductor
    Family
    Scotchlok
    Flame Retardant
    No
    Insulation Outside Diameter
    0.082 in


    Operating Temperature Range (Celsius)
    -40 °C to +60 °C
    Operating Temperature Range (Fahrenheit)
    -40 °F to 140 °F
    Packaging
    1,000 connectors (10 boxes of 10 cartridges with 10 connectors each), 1,000 connectors (100 per box, 10 boxes per case), 5,000 connectors (500 per jar, 10 jars per case)
    Product Type
    Connector
    Solution for
    Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Wireless Network: Backhaul
    Wire Gauge
    26 - 19 AWG



    UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication



    UR2 3m IDC Terminal Block 0.9 - 1.3 Red Lock Joint Connector For Communication
