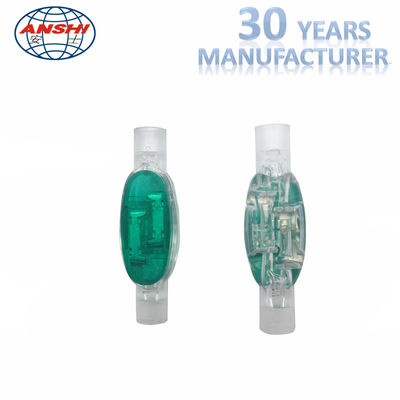

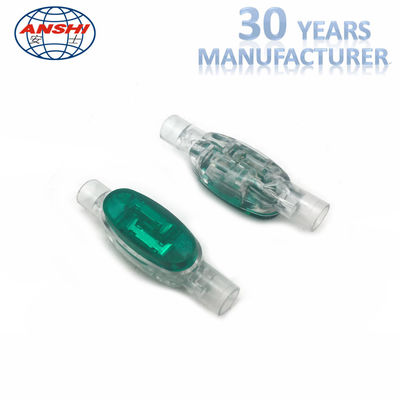

Female Gender 4 Wire Connectors Green Color Moisture Proof 0.091" Maximum Insulation

Female Gender 4 Wire Connectors Green Color Moisture Proof 0.091" Maximum Insulation

    • Female Gender 4 Wire Connectors Green Color Moisture Proof 0.091" Maximum Insulation
    • Female Gender 4 Wire Connectors Green Color Moisture Proof 0.091" Maximum Insulation
  • Female Gender 4 Wire Connectors Green Color Moisture Proof 0.091" Maximum Insulation

    Product Details:

    Place of Origin: CHINA
    Brand Name: ANSHI
    Certification: ISO9001
    Model Number: XL-HJKT9

    Payment & Shipping Terms:

    Minimum Order Quantity: 20000
    Price: Negotiable
    Packaging Details: 10000/ctn
    Delivery Time: 1000000pcs/week
    Contact Now
    Detailed Product Description
    Name: 3m Scotchlok Connectors Diameter: 0.5-0.9
    Maximum Insulation: 0.091”(2.3) Gender: Female
    Type: Communication Parts Color: Green
    Application: Wire, All Electric Area

    3M Standard Scotchlok Connector 1.2-1.5mm Green Lock joint Connector 8





    Product Description:



    1. HJKT8 Tap Connector,enable the user to tap into another wire without interrupting service saving the craftsperson valuable time, two wire inline joints on telephone drop
    wire of 0.4mm-0.9mm(26-19AWG) copper or copper-clad steel connector with insulation diameters 1.67mm(0.066"), and Cat.5 compliant.

    2. The connector is filled with a moisture resistant compound in order to provide moisture proof
    connections.

    3. All materials is suitable for operation in the tropic with maximum temperature up to 70oC.

    4. All materials used in the connectors shall be non-toxic and dermatologically safe.

    5. Connectors can retain the electrical & mechanical properties in the test report over working temperature range -30oC to 70oC and humidity range of 0% to 95%.



    Item No Maximum insulation Wire Range Item Name
    1 1.52mm 0.4-0.7mm UY
    2 2.08mm 0.4-0.9mm UY2
    3 1.67mm 0.4-0.9mm UR
    4 2.08mm 0.4-0.9mm UR2
    5 3.18mm 0.9-1.3mm U1B
    6 3.18mm 0.5-0.9mm U1R
    7 4.45mm 0.9-1.3mm UDW2





    Female Gender 4 Wire Connectors Green Color Moisture Proof 0.091" Maximum Insulation
