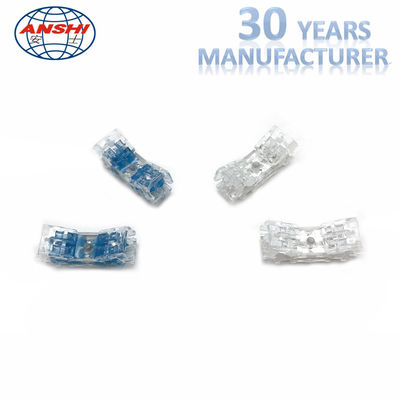

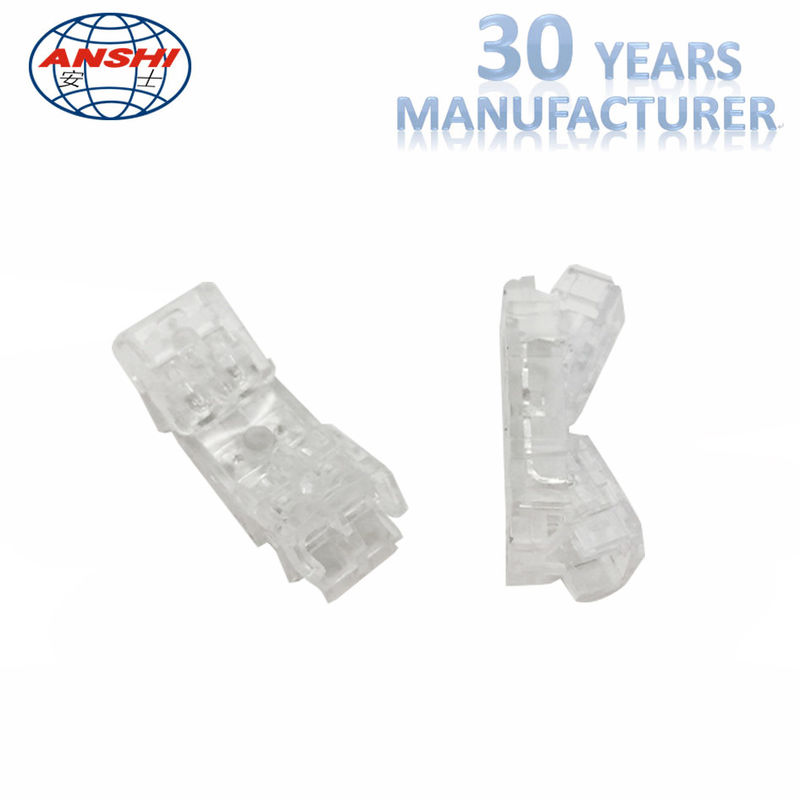

Four Pair Inline IDC Terminal Block Transparent Lock Joint High Impact Material

  • Four Pair Inline IDC Terminal Block Transparent Lock Joint High Impact Material
  • Four Pair Inline IDC Terminal Block Transparent Lock Joint High Impact Material
Place of Origin CHINA
Brand Name ANSHI
Certification ISO9001
Model Number XL-023UR-101I
Minimum Order Quantity Can discuss
Price Negotiable
Packaging Details 10000/ctn
Delivery Time 1000000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HJKT10 Line Diameter 0.4-0.7mm
Maximum Insulation 0.060”（1.52） Gender Female
Wire Gauge 0.4-0.7mm (26-21aAWG) Color Transparent Or Customize
Highlight

krone terminal block

,

Connector wire connectors
Leave a Message
Product Description

Four Pair Inline Connector Wire Connectors 0.4 - 0.7mm Transparent Lock Joint



Product Description:



Application: apply to telephone wiring connection.



  1. wire connector designed for 0.4mm-0.7mm (26-21AWG) cooper or copper-clad steel connector with insulation diameters 1.4mm(0.055’’)
  2. The connector is filled with a moisture resistant compound in order to provide moisture proof connections.
  3. The connector can provide total environmental sealing around IDC-contacts.
  4. Material suitability
  5. The material component
  6. Plastic part: durable polycarbonate with durable, high impact material, Transparent lid and bottom
  7. Contact pin: phosphor bronze with plated tin surface
  8. The filling compound is prepared from fully synthetic dimethylsiliconefluid
  9. All materials is suitable for operation in the tropic with maximum temperature up to 70℃
  10. All materials used in the connectors shall be non-toxic and dermatologically safe
  11. Connectors can retain the electrical & mechanical properties in the test report over working temperature range -30℃ to 70℃ and humidity range of 0% to 95%



Item No Maximum insulation Wire Range Item Name
1 1.52mm 0.4-0.7mm UY
2 2.08mm 0.4-0.9mm UY2
3 1.67mm 0.4-0.9mm UR
4 2.08mm 0.4-0.9mm UR2
5 3.18mm 0.9-1.3mm U1B
6 3.18mm 0.5-0.9mm U1R
7 4.45mm 0.9-1.3mm UDW2





Four Pair Inline IDC Terminal Block Transparent Lock Joint High Impact Material 0
