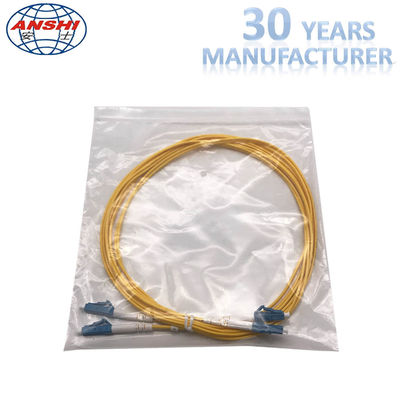

G652D Single Mode Optical Fiber Patch Cord LC - LC UPC Type 0.3dB Insertion Loss

  • G652D Single Mode Optical Fiber Patch Cord LC - LC UPC Type 0.3dB Insertion Loss
Place of Origin China
Brand Name ANSHI
Certification ISO9001
Model Number AS-ODF-LC
Minimum Order Quantity Negotiable
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fiber Optic Jump Cable Return Loss ≥50.00dB(PC) ≥65.00dB(APC)
Connector Type SC/FC/LC/ST/MU/MTRJ Length 1m,2m,3m...
Cable Type Simplex/Duplex Fiber Type SM/MM
Tensile Strength ≥10KGS Repeatability ≤0.1
Insertion Loss 0.3dB Fiber Corning
Highlight

Fiber Optic Jumper Cables

,

Duplex Fiber Optic Cable
Leave a Message
Product Description

G652D Single ModE LC - LC UPC Type Optical Fiber Patch Cord Duplex



Product Description

  • CATV
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX applications



Model NO. LC-LC fiber optic patch cord
Style LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type

9/125 SMF-28 or equivalent (Singlemode) OS1&OS2 50/125, 62.5/125 (Multimode) OM4,OM3,OM2,OM1 50/125,

10G (Multimode) OM3
Cable Type

Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)

UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating Temperature -40C to 85C
Geometry Requirement (For Singlemode) Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1



G652D Single Mode Optical Fiber Patch Cord LC - LC UPC Type 0.3dB Insertion Loss 0
