CAT6 STP Shielded Patch Panel 1U 19 Inch 24 Port IDC PCB Type For Networking

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, DAS, ISO9001
Model Number XL-018C-6
Minimum Order Quantity 300
Price Negotiable
Packaging Details 1pc/Box, 25 Boxes/Carton
Supply Ability 5000 Pieces Per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Cold Roll Steel Color Black
Category CAT5, RJ45, STP(shielded ) Size 19'', 1U
Type Krone IDC Application Networking; Cabling
Highlight

unshielded patch panel

,

1u 24 port patch panel

Leave a Message
Product Description

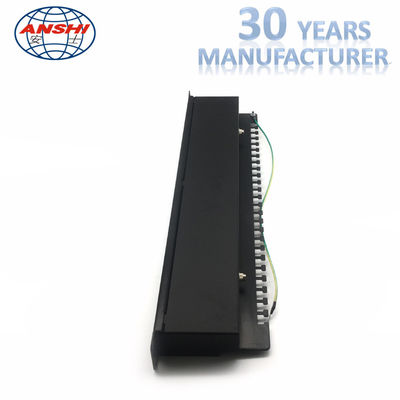

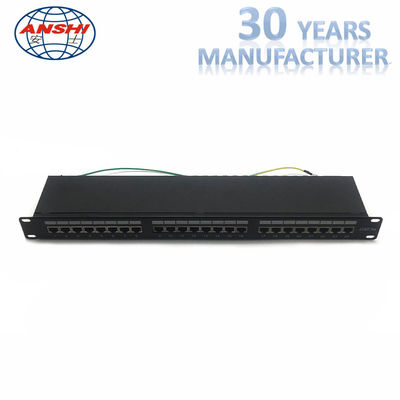

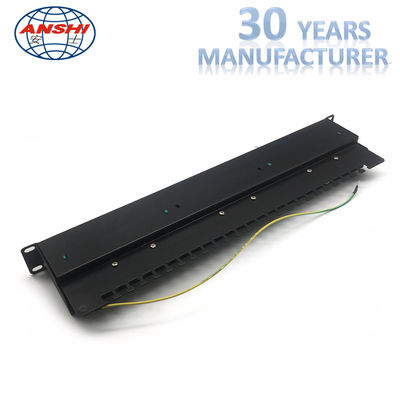

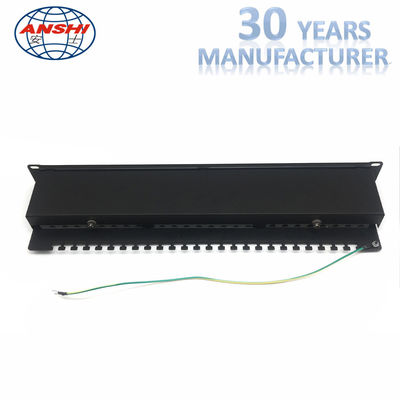

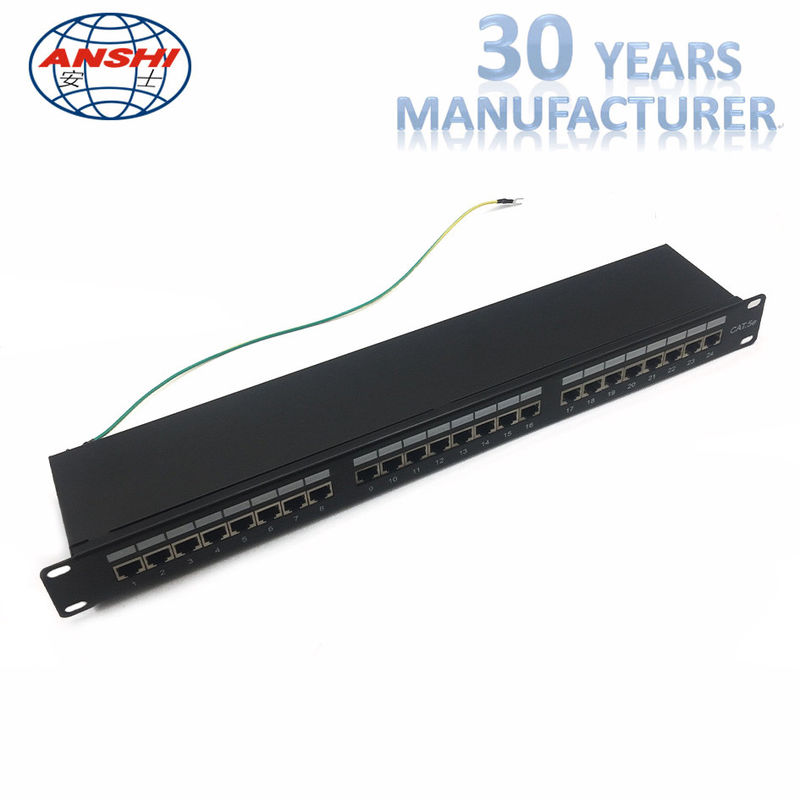

19 Inch 24 Port CAT6 STP Shielded Patch Panel 1U, IDC PCB Type



Quick Detail:



1. Category 5e Category 6 Patch Panel,24ports shielded type

2. 19 inch,1U

3. IDC option: Krone IDC,110IDC,Dual IDC,6port each IDC block,installed with screw,easy to change in case one is failed.

4. IDC contract material : phosphor bronze with tin plating over nickel

5. Thickness of gold plating:3u”,6 u”, 15u”,30 u”, 50 u”

6. With port no.printing,not easily moved.With wiring sticker for operation guide,with label on top of the RJ45 port for users note.

7. Meet or exceed the requirement of ANSI /TIA/EIA 568B.2,UL listed,CE certified.

8.With earth line and cable management





Description:



Material:
Panel: Cold rolling steel with static plastic spraying
Designation-strip holder: ABS (UL94V-0)
Jack: PBT (UL94V-0)
IDC: PC (UL94V-0)
Module Connector: Phosphor Bronze with Gold Plating
IDC Connector pin: Phosphor Bronze with Silver plating
IDC Connector: Insulation slicing of 22 to 26 AWG

Cat.5e and Cat6 character is availabe for this function.



Keep the surface painting perfect,uniform.
