PC Material Tool Free Keystone Jack CAT6A RJ45 Module Customized Color

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, ISO9001, DAS
Model Number AS-KEY-6AA
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 15000 Pieces per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name CAT6A RJ45 Module Tool Toolless
Category CAT6A Jack Type RJ45
Plating Gold Material PC

toolless keystone jack


rj45 punch down jack

Leave a Message
Product Description

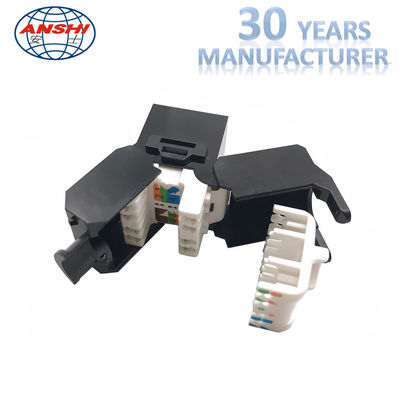

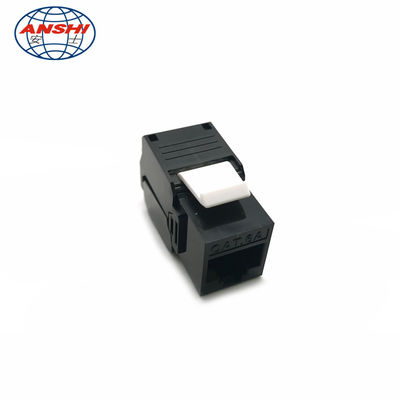

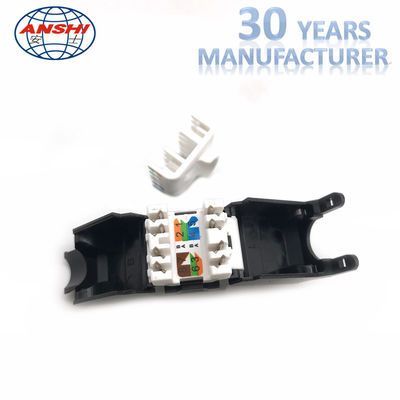

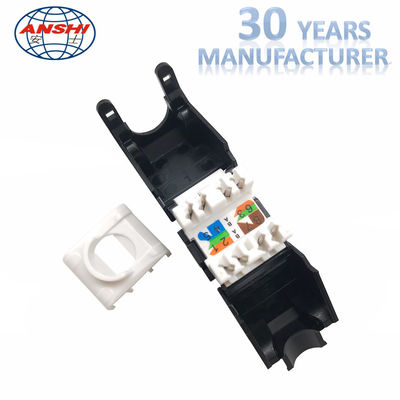

RJ45 Keystone Jack Toolless UTP Unshielded 180 Degree Cat6A Keystone Jack




• Performance:KHA Series completely contains all performance level from Cat 5e to Cat 6A.


• Press-Fit Technology:makes the product more reliable. It also promises a much better quality

of conductivity. A more stable transmission performance is guaranteed

since there is no other medium that takes effect in between PCB and



• Patent (pending) in Taiwan & U.S.:Unique spring contact structure for improving

RL & counteracting NEXT.




1. CE, Lead-free & RoHS2 compliant.


2. Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2.2 edition and CENELEC EN 50173-1 cabling

requirements for Category 6A& Category 6A components performance.


3. Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and Level A reliability

requirements of IEC 60603-7-2 IEC 60603-7-4, and IEC 60603-7-41 for RJ45 8-way

unscreened connector.




• Voltage proof: 1000V DC or AC peak, contact-to-contact.

• Current-carrying capacity: 0.75Amps minimum

• Contact resistance: 20mohm maximum

• Insulation resistance: 500Mohm minimum at 100V DC

• Input to output resistance: 200mohm maximum

• DC resistance: 0.2ohm maximum




• Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular plug

20 cycles minimum for cable re-termination

• Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s.





• Operation Temperature: -10℃~ 60℃

• Humidity: 10% ~ 90%RH
