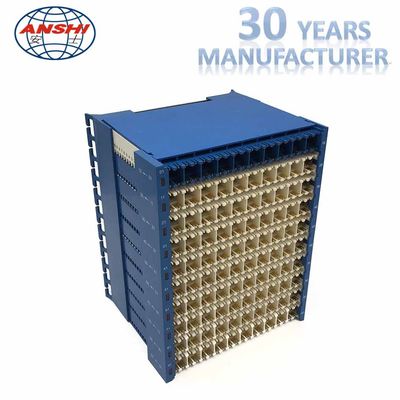

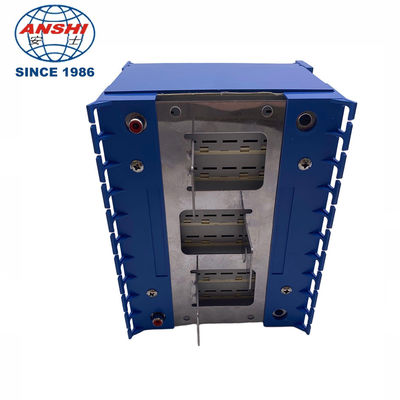

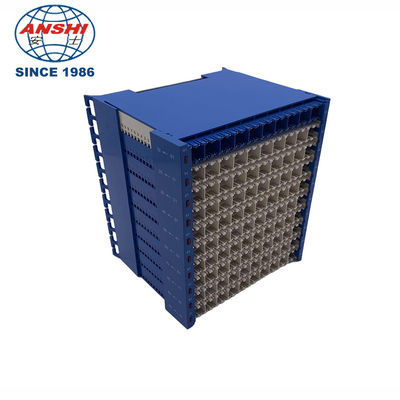

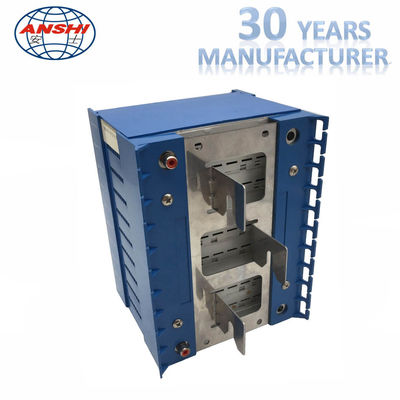

High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection

  • High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
  • High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
  • High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
  • High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
  • High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
  • High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
  • High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-XHW
Document AS-MDF-XHW Catalog.pdf
Minimum Order Quantity 1
Price Negotiable
Payment Terms L/C,D/A,D/P,T/T,Western Union,
Supply Ability 1000pcs/week
Product Details
Material ABS+Phosphor Bronze Printed Silver
Capacity 100 Pair Use MDF Frame
Application Horizontal Type Protect Voltage And Current Protection
Highlight

intermediate distribution frame

,

optical distribution frame
Leave a Message
Product Description
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
Product Overview

MDF Main Distribution Frame High Density 100 Pairs Protection Connection Terminal Block designed for secure and reliable telecommunications distribution.

  • Size (H x W x D): 175mm x 140mm x 152mm (100 Pairs)
  • Environment condition: -5-40°C; Relative humidity <85% (+30°C); Atmospheric pressure: 70-106KPa
  • Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
  • Anti-burn performance: PBT (UL94V-0) or anti-burn ABS (UL94V-0), combustibility achieved GB/T 5169.7-1985 standard
  • Insulated resistance: no less than 1,000M ohm between disjunct connections under standard atmospheric pressure
  • Intermediate resistance between reed terminators: no more than 7m ohm under standard examination condition
  • Intermediate resistance: no more than 3m ohm under standard examination condition
  • Dielectric strength: according to industry standard
  • Specification: 100 pairs
  • Life: durability 200 cycles
Product Images
High Density JPX202 Series Terminal Block front view High Density JPX202 Series Terminal Block side view High Density JPX202 Series Terminal Block internal components High Density JPX202 Series Terminal Block connection details High Density JPX202 Series Terminal Block installation view High Density JPX202 Series Terminal Block complete assembly
High Density MDF Specifications
Specification Dimension (mm)
1200 Pairs 2200*700*1360
3000 Pairs 2200*1350*1360
4000 Pairs 2700*1350*1360
5000 Pairs 3000*1350*1360
6000 Pairs 3500*1350*1360
