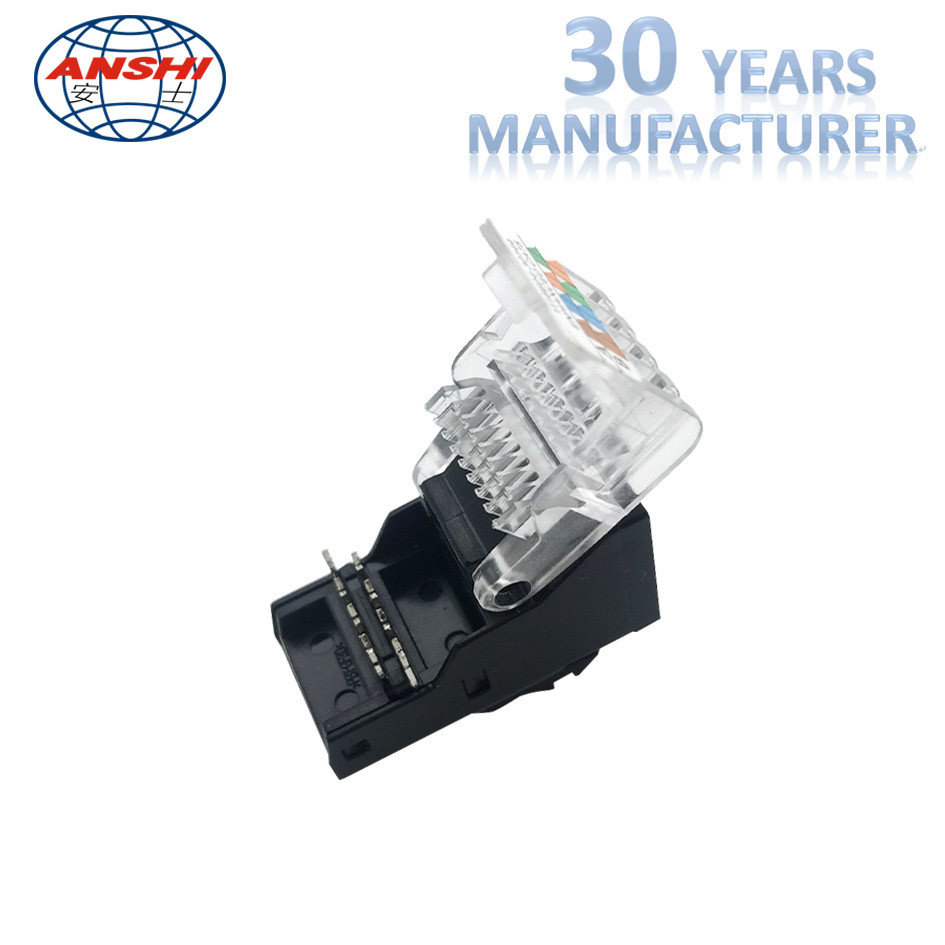

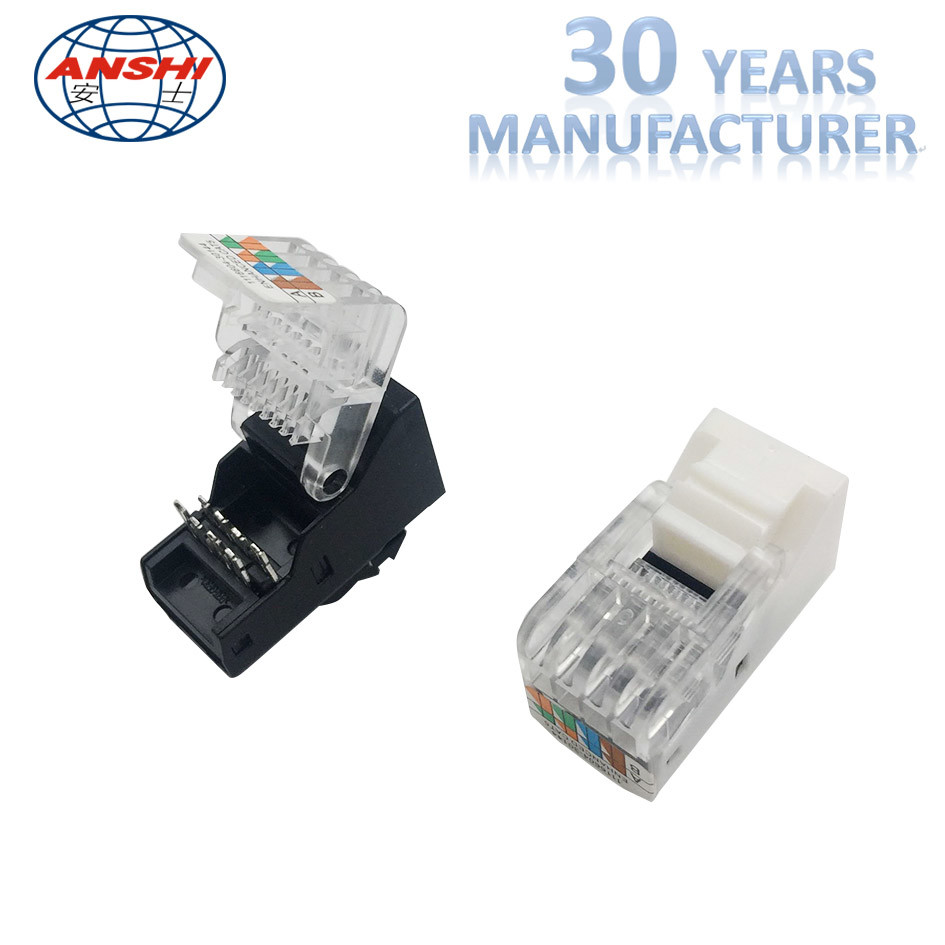

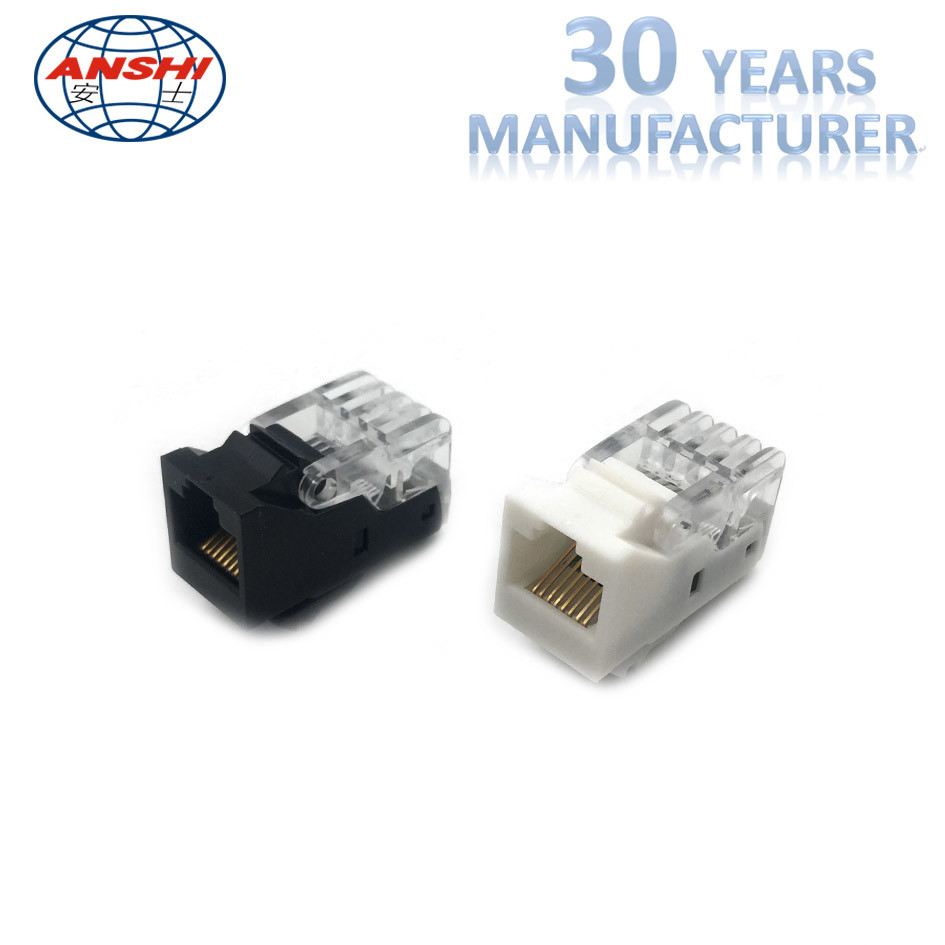

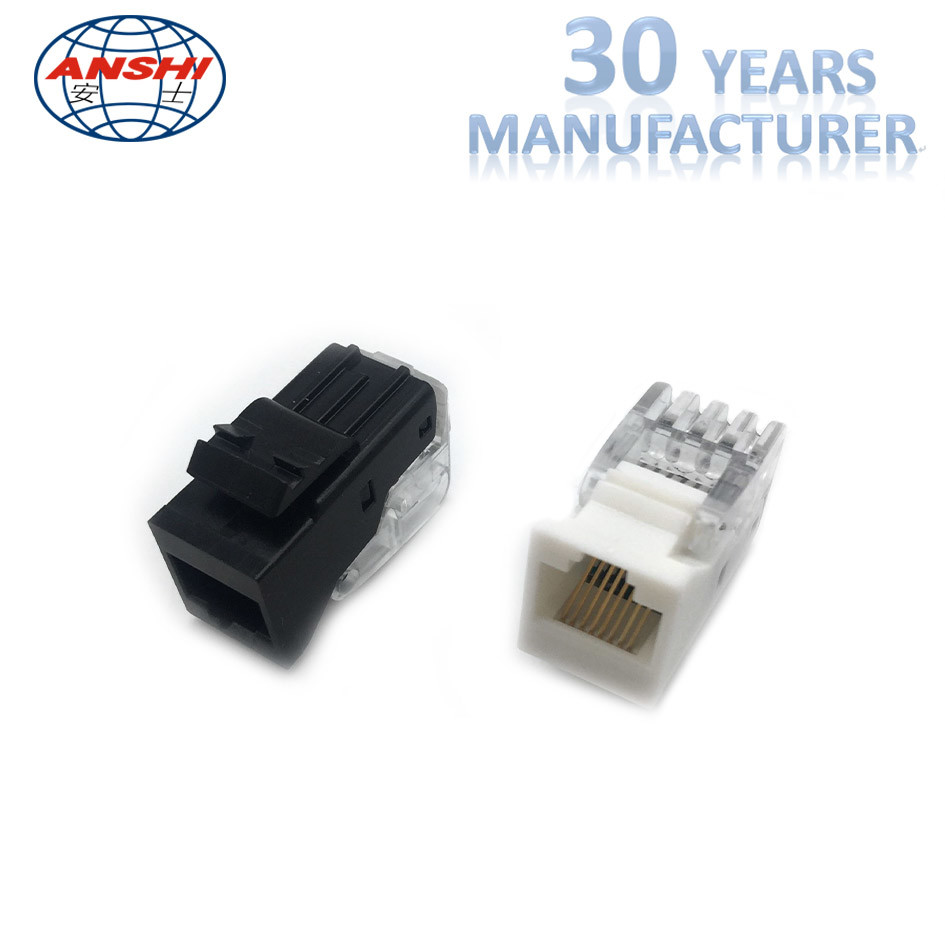

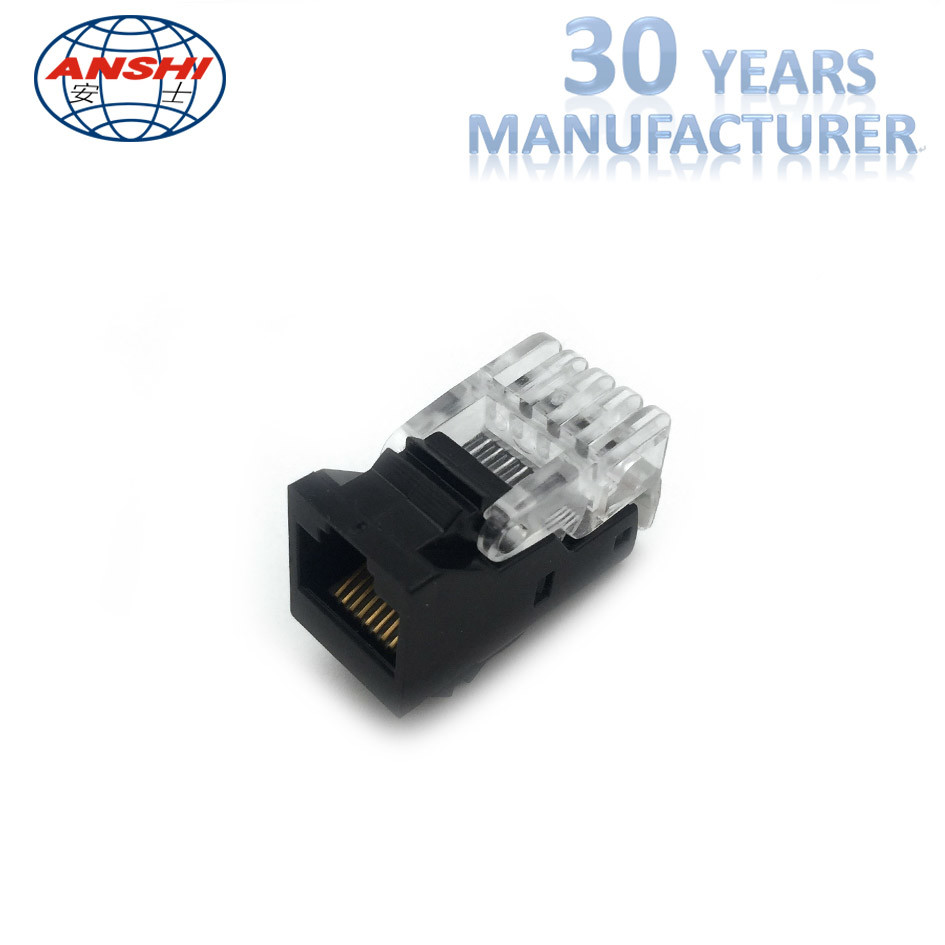

Toolfree RJ45 Cat5e UTP Gold Plating Keystone Jack

Cat5e RJ45 Keystone Jack UTP Punch Down Toolless Keystone Jack

The RJ45 Cat5e keystone jack module is used for network communication in telecommunication field,together with patch panel,faceplate,patch cord,etc.

Features

• Contact resistance: <2.5m Ohm
• Contact resistance of linker and lead: <2.5m Ohm
• Insulation resistance: >1,000M Ohm
• Withstand test voltage: DC 1,000V
• Times of repetitive use: >=750
• Designed and manufactured in accordance with ISO / IEC11801 standards
• Design exceeds normal requirements
• Colored component combinations for convenience of identification and network management
• Many other message modules available for wiring arrangements
• Compatible with AMP keystone
• Colors available: white, yellow, ivory, red, black, blue

Specifications

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

Angle: 90 Degree
Termination: 110 Type

Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.

Detailed Specification
