UTP 19'' 1u Patch Panel 24 Port Cat6 150v With Colored Keystone Modular

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, DAS, ISO9001
Model Number XL-4017-G
Minimum Order Quantity CAN DISCUSS
Price Negotiable
Packaging Details 1pc/Box, 25 Boxes/Carton
Supply Ability 5000 Pieces Per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Cold Roll Steel Color Black
Category CAT6 UTP Size 19'', 1U
Type 110 IDC Application Networking; Cabling

1u 24 port patch panel


50 port voice patch panel

Leave a Message
Product Description

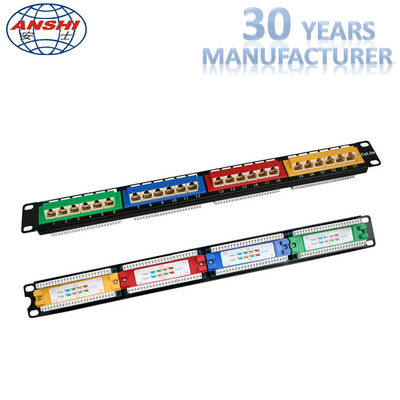

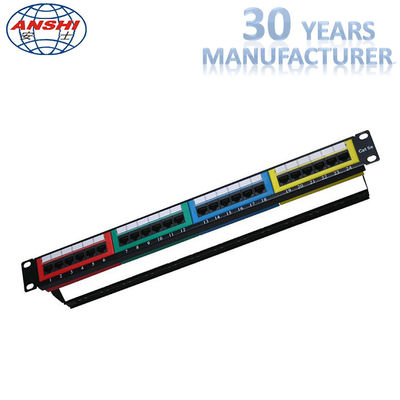

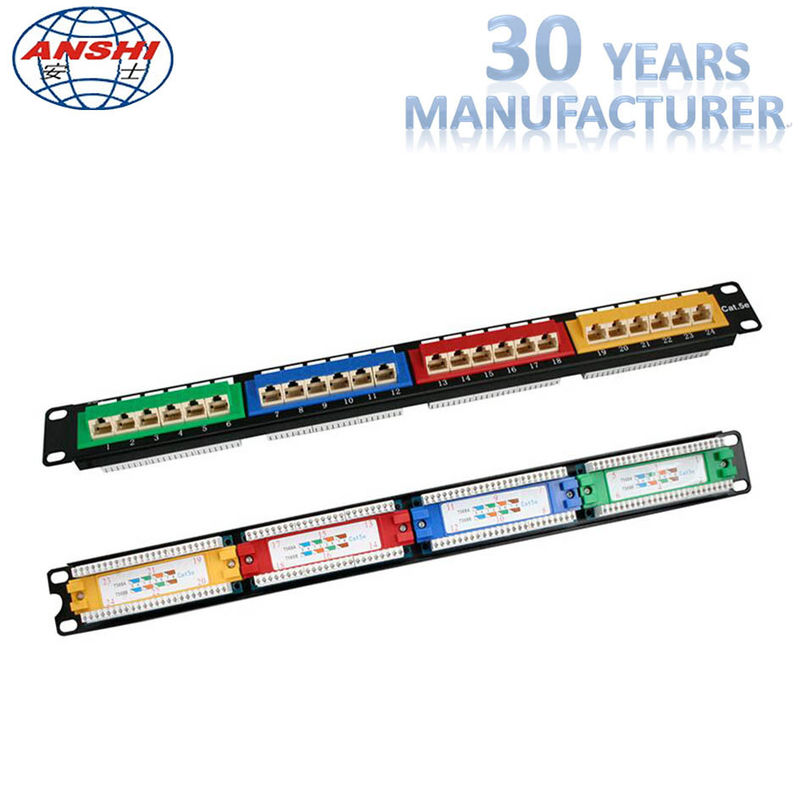

UTP 1u CAT6 Patch Panel 24 Ports Rack Panel with Colored Keystone Modular


Standard requirements:

  • Meets ANSI/TIA/EIA-568-B.2 Category 6 requirements.
  • Meets TIA/EIATSB-40
  • Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
  • Meets CENELEC Generic Cabling Standard EN50173-1:2002.

Material :

  • Housing:0.06''(1.6mm) thicknss steel.
  • Cover:0.039''(1mm) thickness steel.
  • PCB(Printed circuit board): FR-4 0.06''(1.6mm) thickness,2/ayers.
  • Contacts: 0.018''(0.45mm) Phosphor bronze wth 50 micro inches(1.27 micron)
  • Gold plating on contact area
  • IDC: PC UL94V-O

Electrical Characteristics:

  • According to UL1863
  • Current rating :1.5A Max
  • Voltage Rating: 150V
  • Contact resistance: 20m-ohm
  • Insulation resistance:500M-ohm
  • Dielectric withstand voltage:1000V AC RMS,60Hz/min.
Size 19 inch 1u (24 port)
Voltage Rating 125 VAC Max
Current Rating 1.5AMP
Operation 0~70°c
Housing Material PBT-UL90V-0
Panel Fram Carbon Steel, Powder Coating in black color
Contact Material PC-UL90V-0
Contact Phosphor Bronze with Nickel Plating
IDC Life Min 200 Terminations
RJ45 Jack Life Min 750 Insertions
Tia Cat.5e Perm Link Test Worst Pair NEXT Margin ≥3dB
