Customized Network Punch Down Tool , Telephone Network Cable Tester

Customized Network Punch Down Tool , Telephone Network Cable Tester

  • Customized Network Punch Down Tool , Telephone Network Cable Tester
  • Customized Network Punch Down Tool , Telephone Network Cable Tester
  • Customized Network Punch Down Tool , Telephone Network Cable Tester
  • Customized Network Punch Down Tool , Telephone Network Cable Tester
Customized Network Punch Down Tool , Telephone Network Cable Tester
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: SGS, ISO9001, DAS
Model Number: XL-4026B
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: 57.5*30*37.5cm, 100 pcs, 18kgs, Export Carton
Supply Ability: 2000 pieces per week
Contact Now
All Products
Fiber Distribution Box (81)
FTTH Distribution Box (27)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (62)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (79)
Detailed Product Description
Name: Cable Tester Application: Checking Cable
Color: Can Customize Normal Package: Box
High Light:

Cable Crimping Tool

,

Cable Punch Down Tool

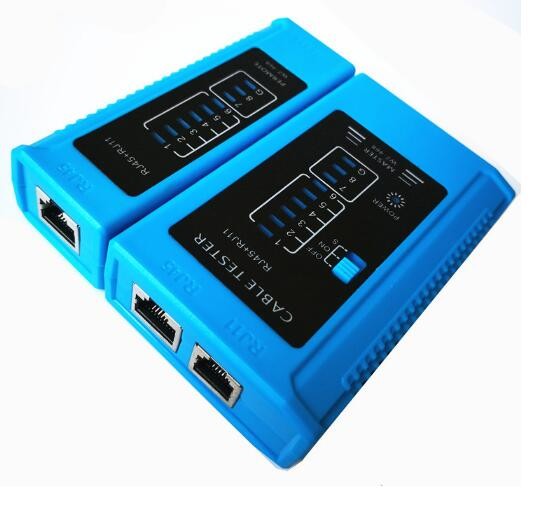

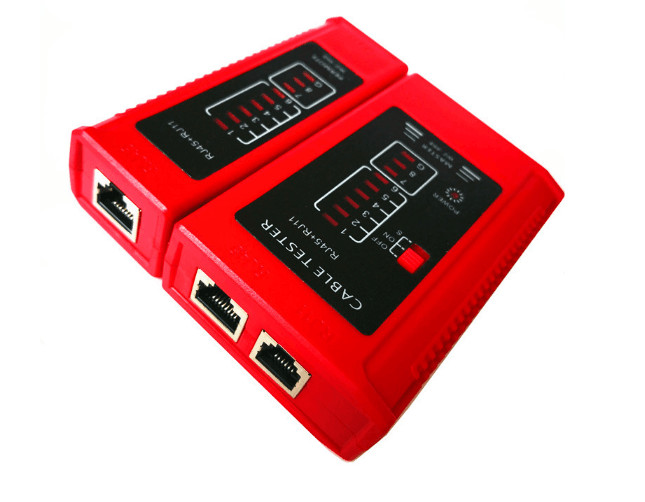

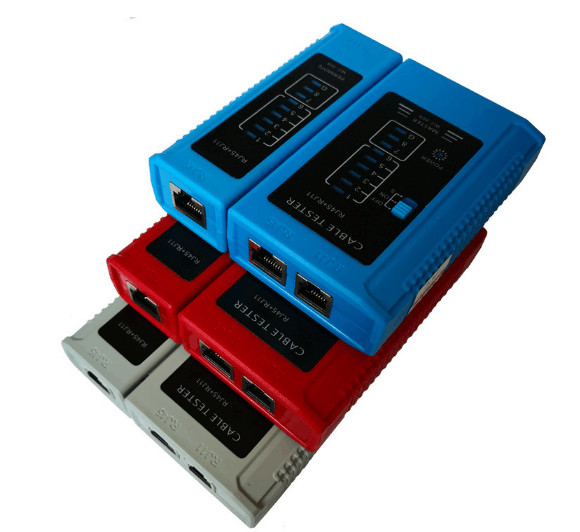

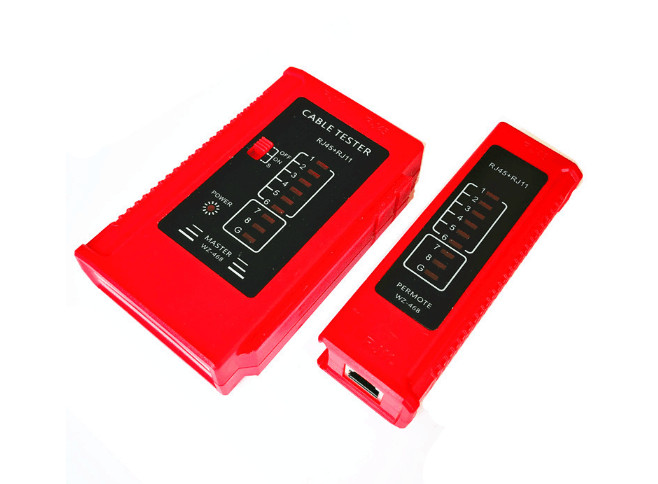

New Type Network Tester RJ45 RJ11 LAN Cat 5 5e Cat 6 Network Telephone Cable Tester





Description:

  • This LAN Network Cable Tester is requisite and needful in network installation and maintenance.

  • Cable Tester for RJ-11, RJ-45, CAT5, CAT5e, 10/100BaseT, TIA-568A/568B, AT&T 258-A

  • RJ45 Network Cable Tester test correspondingly double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and Ground

  • 9 LED lights to indicate wiring connection on both remote and master unit

  • With this RJ12 Network Cable Tester, you can judge wrong connection, short circuit and open circuit

  • Detachable remote tester, test remote cable up to 1000ft. in length

  • Auto scanning function for rapid testing

  • Powered by one 9V battery (included)

  • Compact and light weight RJ11 Network Cable Tester, very practical for home and outside use

I.　Functions:
1.　It can test correspondingly double-twisted cables 1,2,3,4,5,6,7,8 and G,meanwile,can judge wrong 　　connection,short circuit and open circuit.


2.　Switch ON shows the normal grade,S is slow automatic grade,M is manual.

II.　Test of double-twisted cables: Switch on the power,and put cables into both main tester and remote tester.The lights of the main tester will turn on equently from 1 to G.
Main Tester:   1-2-3-4-5-6-7-8-G
Remote Tester:   1-2-3-4-5-6-7-8-G(RJ45)
  1-2-3-4-5-6------(RJ12)
  1-2-3-4----------(RJ11)
Following are erroneous connections:
1.　If one cable, for example cable No.3 is open circuited, the two No.3 lights of the main tester and remote tester will not turn on.
2. 　If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected ,none of the lights is on.
3.　If two ends of a cables is disordered, for example No.2 and No.4,then displays on:

Main Tester:
   1-2-3-4-5-6-7-8-G
Remote Tester:
   1-4-3-2-5-6-7-8-G

4.　If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.

III.　If test patch panels or wall plate outlets, two cables which can match with other (eg 110P4 and RJ45)will ne connected to the tester.

IV.　If test cables of the same axes,BNC turns on when the cables works.

Customized Network Punch Down Tool , Telephone Network Cable Tester 0Customized Network Punch Down Tool , Telephone Network Cable Tester 1





Tag:

Cable Crimping Tool,

Cable Punch Down Tool,

Ethernet Punch Down Tool
