Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication

Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication

  • Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication
  • Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication
  • Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication
  • Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication
Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: SGS, ISO9001, DAS
Model Number: XL-4021-U5E
Payment & Shipping Terms:
Minimum Order Quantity: Can discuss
Price: Negotiable
Supply Ability: 30000 Pieces per day
Contact Now
Detailed Product Description
Contact: Phosphor Bronze Plating: Gold Plating
Dimension: 8P8C Color: Can Be Customized
Category: CAT6 UTP Material: PC
Gender: Male Fork: 2 Forks Or 3 Forks
High Light:

toolless keystone jack

,

rj45 shielded jack

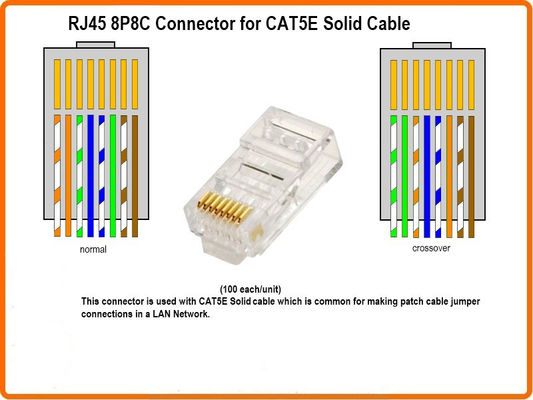

RJ45 8P8C Unshielded Plug Connector for CAT5E Solid Wire




Electrical:
1. UL applications: 250V AC, 2A (max.) .
2. Dielectric withstanding voltage: 500V AC.
3. Insulation Resistance: 100MΩ.
4. Termination: Resistance 20MΩ Max After Environmental Testing.





Mechanical:
1. Cable-to-plug Tensile Strength : 20kg Min.
2. Durability : 200 Mating Cycles.





Material & Finish:
1. Housing: Polycarbonate, UL94V-0 Or UL94V-2.
2. Color: Transparent Or Other Color Are Available.
3. Contact Blade: Phosphor Bronze.
4. Temperature range: -40~60°C.
5. Gold Plating: 3u''~50u",are Available.



Application:Used for network communication in telecommunication field-cabling systems, Gigabit Ethernet, together with Patch Panel, Face Plate, Patch Cord, Cable Management, Cat5e/Cat6 Cables, etc

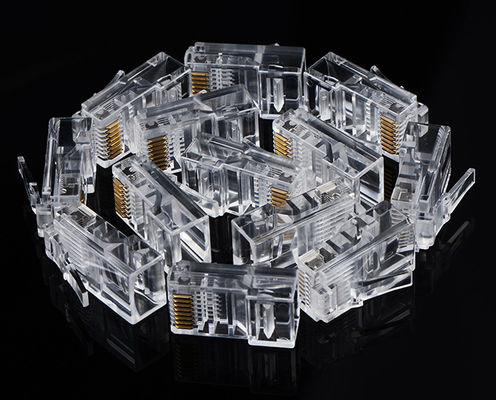

Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication 0

Solid Wire CAT 5e RJ45 Connector 8P8C Unshielded For Network Communication 1
