OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS

  • OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
  • OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
  • OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
  • OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
  • OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
  • OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO 90001, SGS
Model Number AS-DB30W
Minimum Order Quantity Can discuss
Price Negotiable
Supply Ability 35000 Pieces per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Copper Outdoor Termination Box Material ABS Or PC/ABS Alloy
Color Grey Or Semi Yellow Type For 10 / 20 / 30 Pairs Distribution Box
Lock Key Lock Dimension 210*135*85mm
Application 10 Pairs LSA Module Capacity 10 / 20 / 30 Pairs
IP Rating IP30
Highlight

ftth distribution box

,

cable distribution cabinet
Leave a Message
Product Description

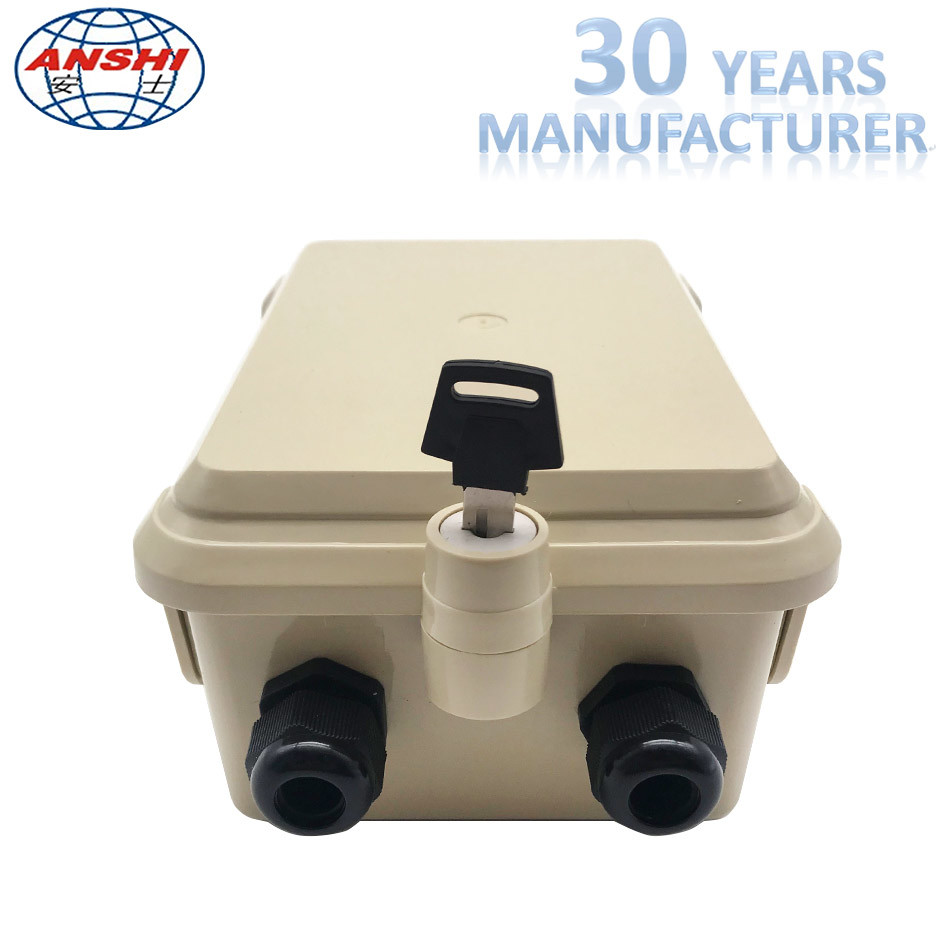

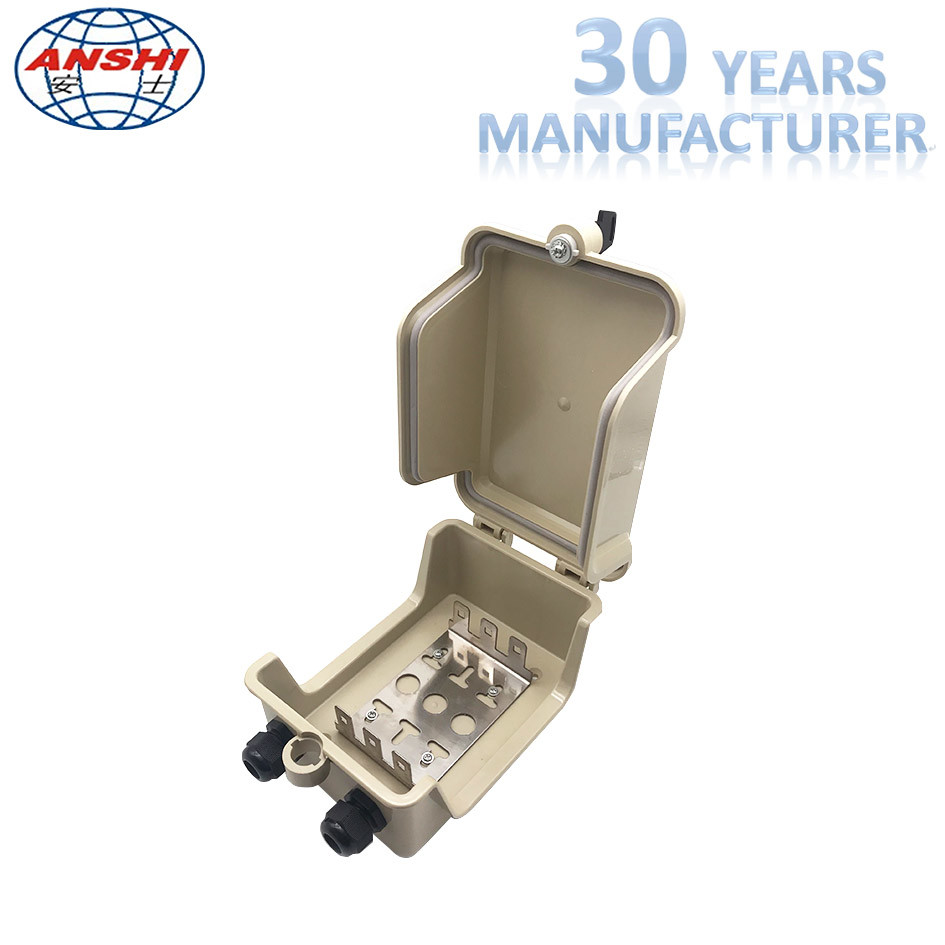

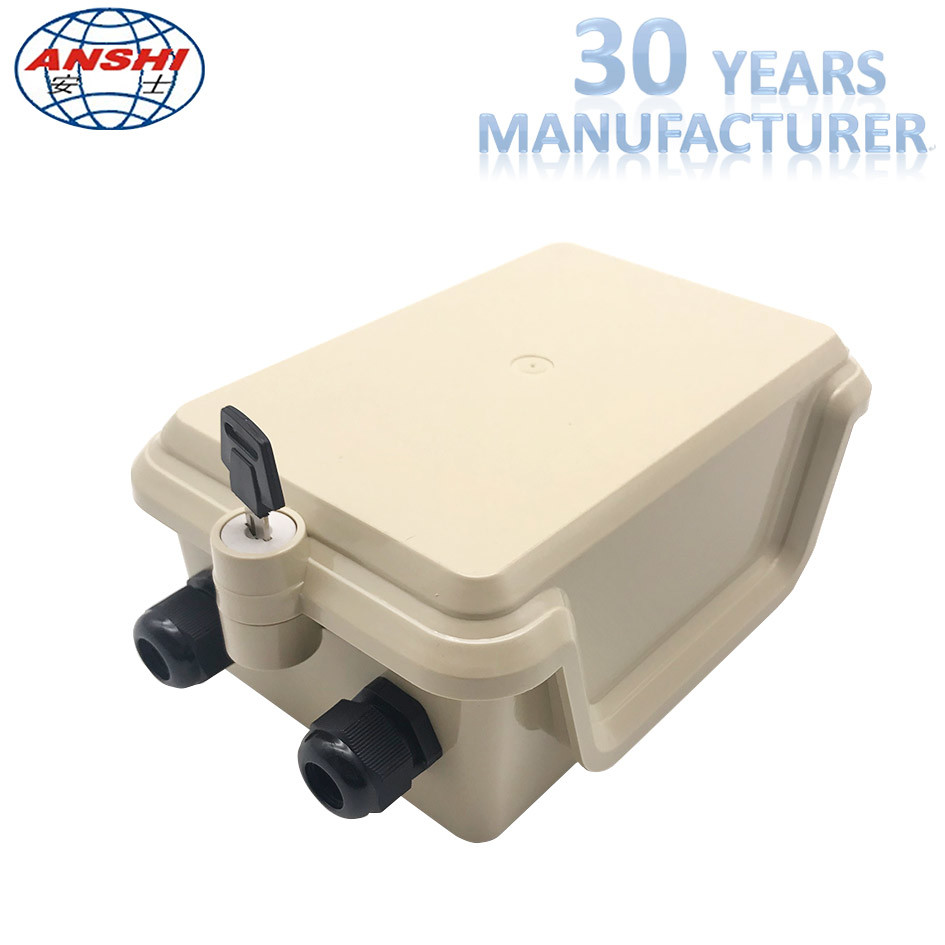

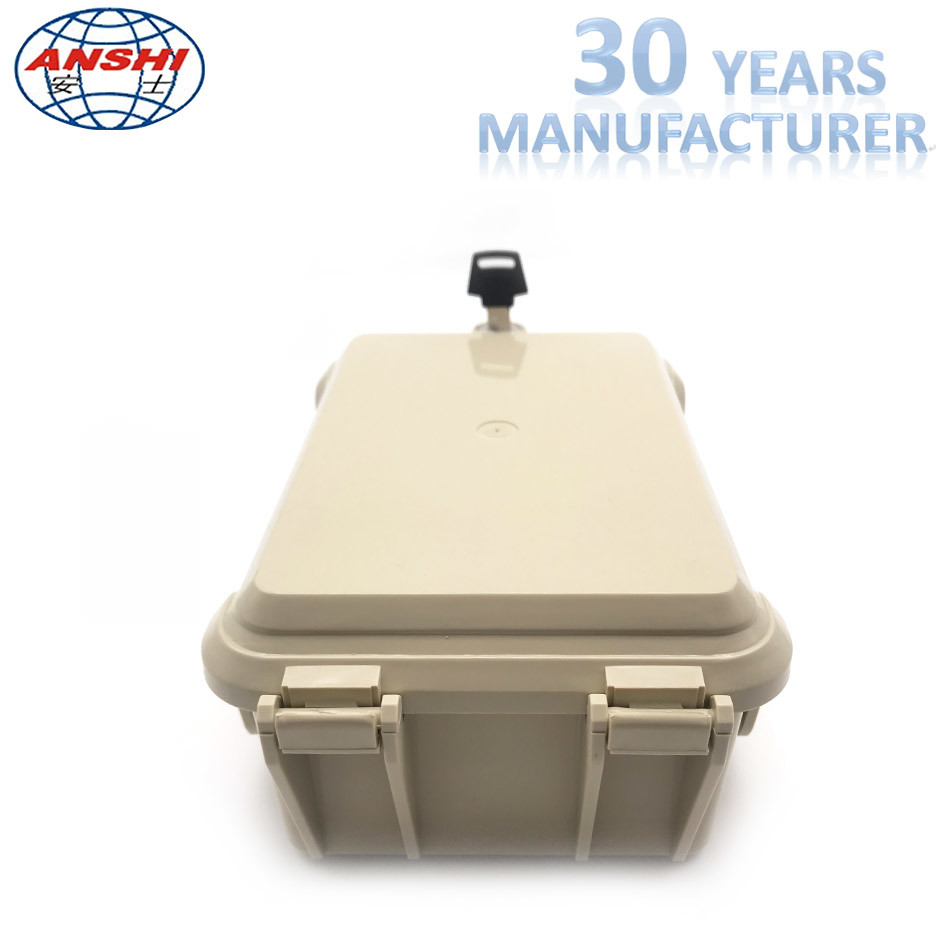

OUTDOOR MDF TELEPHONE BOX FOR 10 20 30 PAIRS
Description:

AS-DB Series Outdoor External Distribution Points (telephone junction box outdoor) are of 10, 20, 30, & 50 & 100 pairs Insulation Displacement. Contact (IDC) type. They are used for Indoor wire termination in buildings.The AS-DB outdoor Distribution Points can be installed in two ways:

1) Direct wall installation

2) Pole Mount

 When it is embedded in the wall, an additional shell is supplied and used.
Models, specifications and dimensions are as follows:

Model Specifications Structural Dimensions (H*W*D)
AS-DB30W 10/20/30P Common wall installation 210*135*85mm
AS-DB50W 50P Common wall installation 220*190*87mm
AS-DB100W 100P Common wall installation 380*185*113mm


50 Pairs with 5 Ways Back Mount Frame

Below image is with 5 Pieces * 10 Pairs Disconnection Module (Assembled)

OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS 0

100 Pairs with 10 Ways LSA back Mount Frame


OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS 1


Optional:
  • Can Install with 10 Pairs Krone Type Module (Disconnection Module, Connection Module, Switching Module
  • Can Install with 10 Pairs 3 Pole Protection Magazine. (With failsafe or without failsafe)
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS 2OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS 3

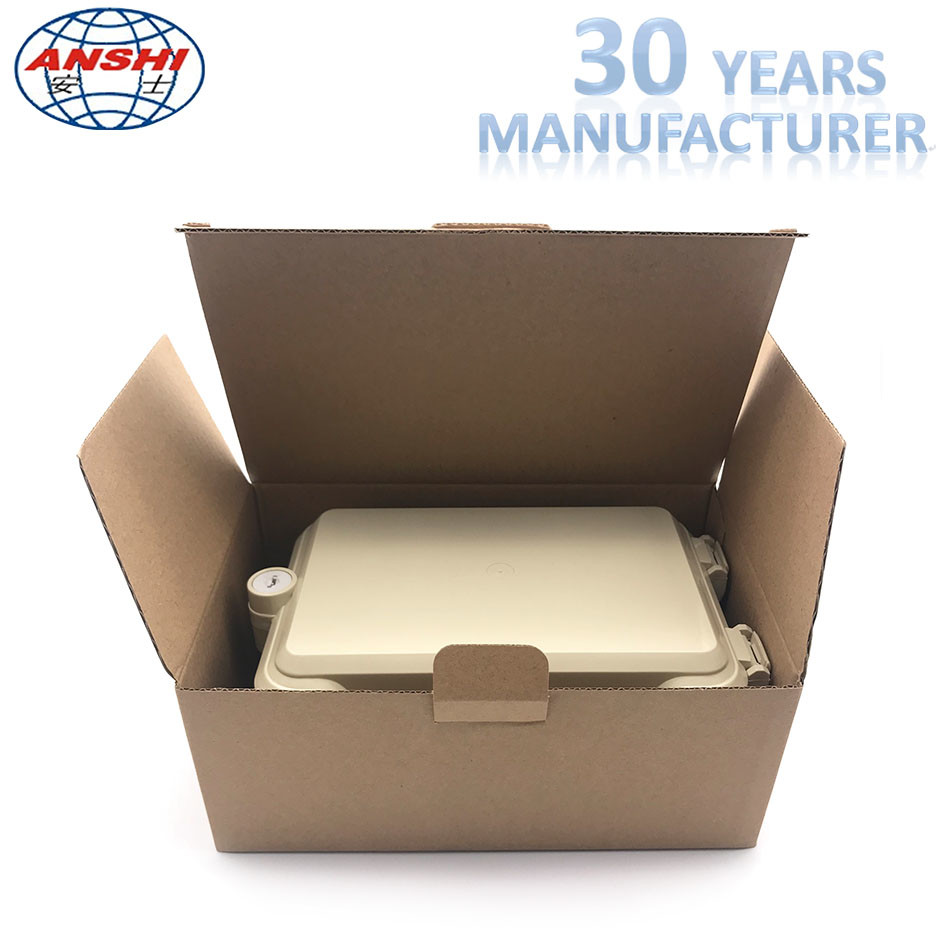

Package: 1 pc/1 inner box, normal export package
