Network RJ45 Keystone Jack , 90 Degree Cat6 Toolless Keystone Jack Customized Color

  • Network RJ45 Keystone Jack , 90 Degree Cat6 Toolless Keystone Jack Customized Color
  • Network RJ45 Keystone Jack , 90 Degree Cat6 Toolless Keystone Jack Customized Color
  • Network RJ45 Keystone Jack , 90 Degree Cat6 Toolless Keystone Jack Customized Color
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, ISO9001, DAS
Model Number XL-4011-C6A
Minimum Order Quantity Can discuss
Price Negotiable
Supply Ability 30000 Pieces per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contact Phosphor Bronze Plating Gold Plating
Dimension 8P8C Color Can Be Customized
Category CAT6 UTP Material ABS Or PC
Highlight

rj45 shielded jack

,

rj45 punch down jack
Leave a Message
Product Description

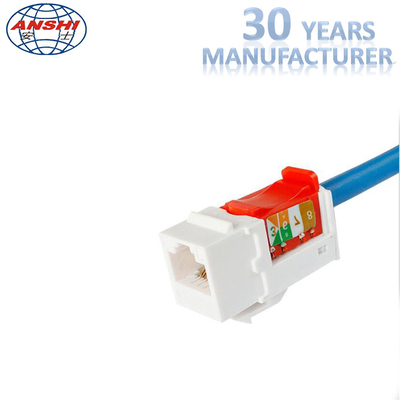

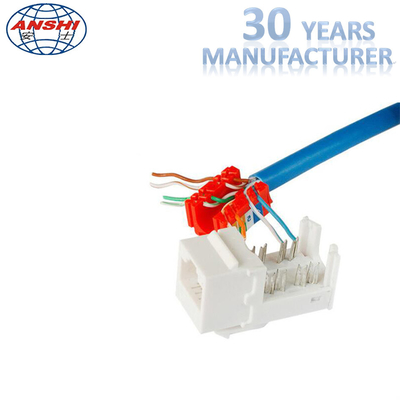

Network RJ45 CAT6 UTP 90 degree toolless Keystone Jack, customized color



Electrical
Voltage Rating : AC 125V
Current Rating : 1.5 AMPS
Insulation Resistance: 500MΩ Min
Withstand Voltage: DC 1000V RMS 50-60Hz Min
Contact Resistange: 20MΩ Max
Mechanical
Insertion Force: 2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength: 70N between jack and plaug;60N between wire and IDC
Durability: Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire: AWG 24-26
Material
Housing: PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing: PC(UL94V-0);PBT(UL94V-0)
Spring Wire: T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact : Phosphor bronze;Nickel plating
Shielding: T=0.25mm copper alloy with tin plated gold
Plating : 3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature: -10°c-60°c
Humidity: 10-90%



Network RJ45 Keystone Jack , 90 Degree Cat6 Toolless Keystone Jack Customized Color 0
