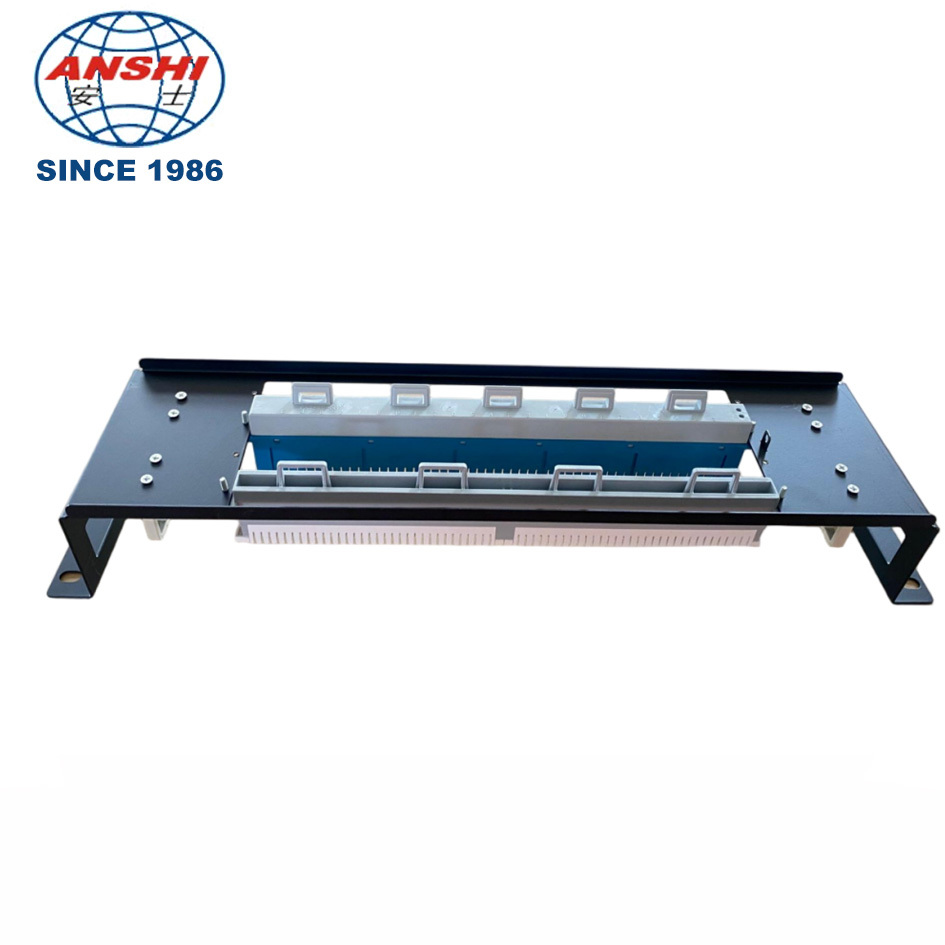

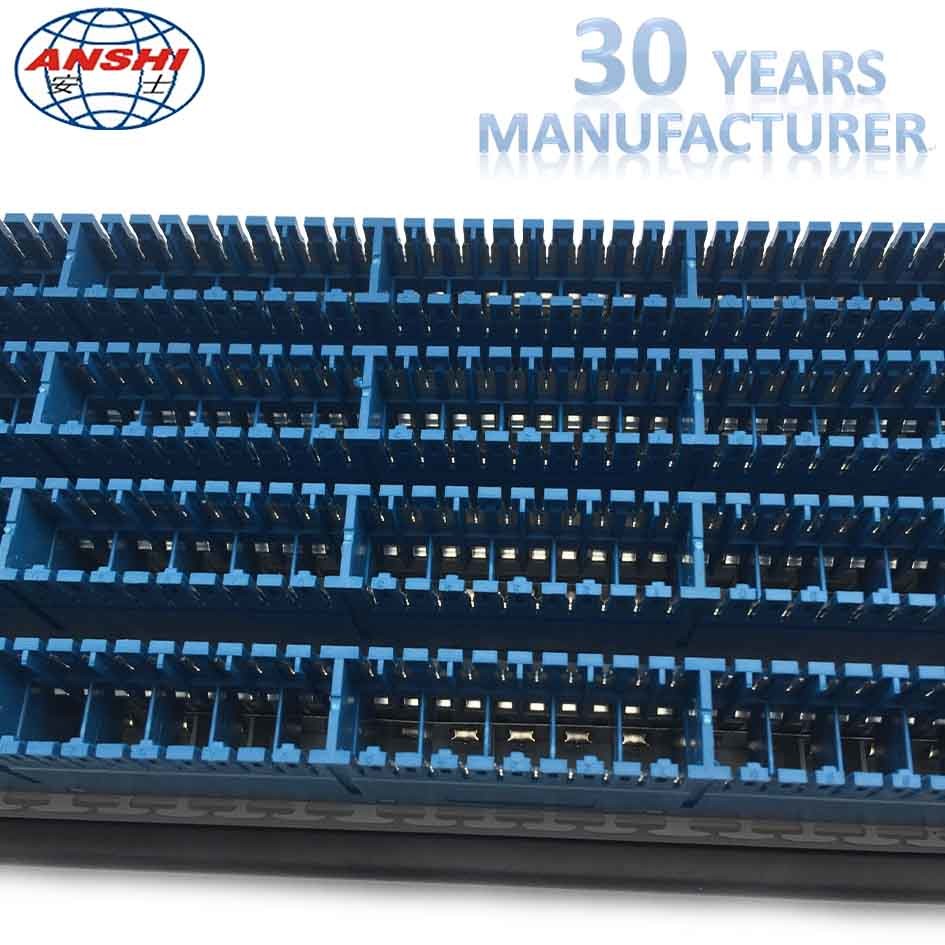

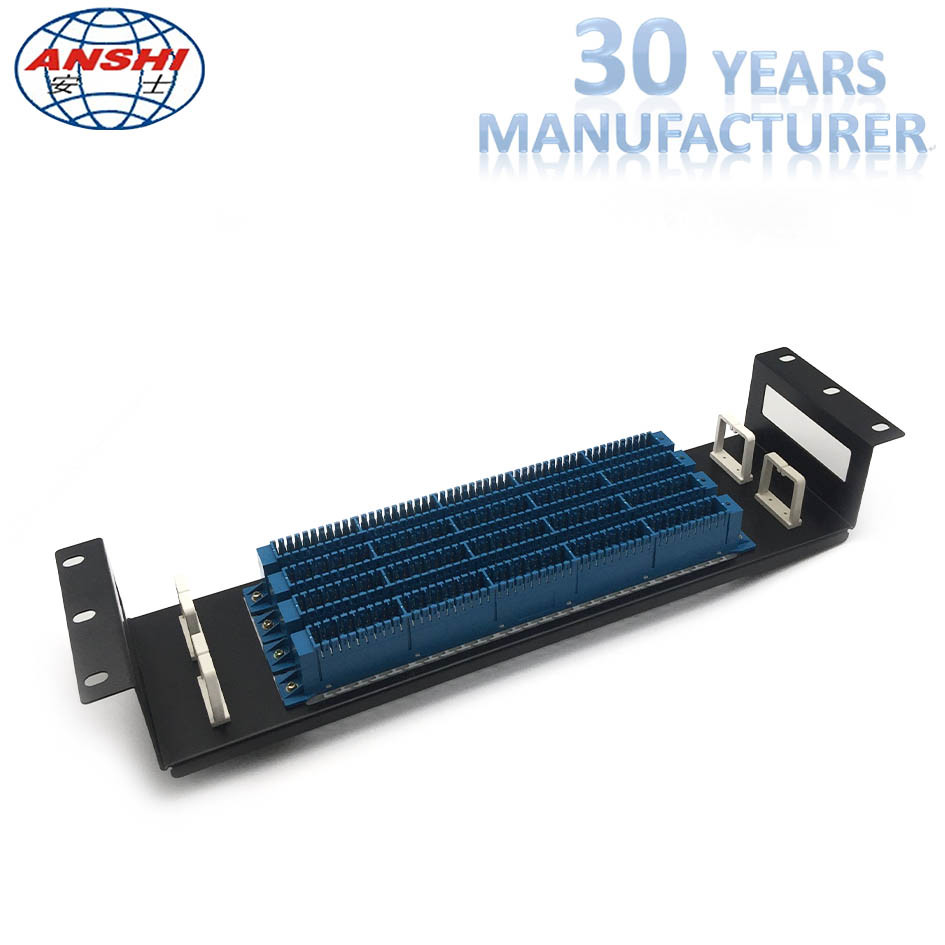

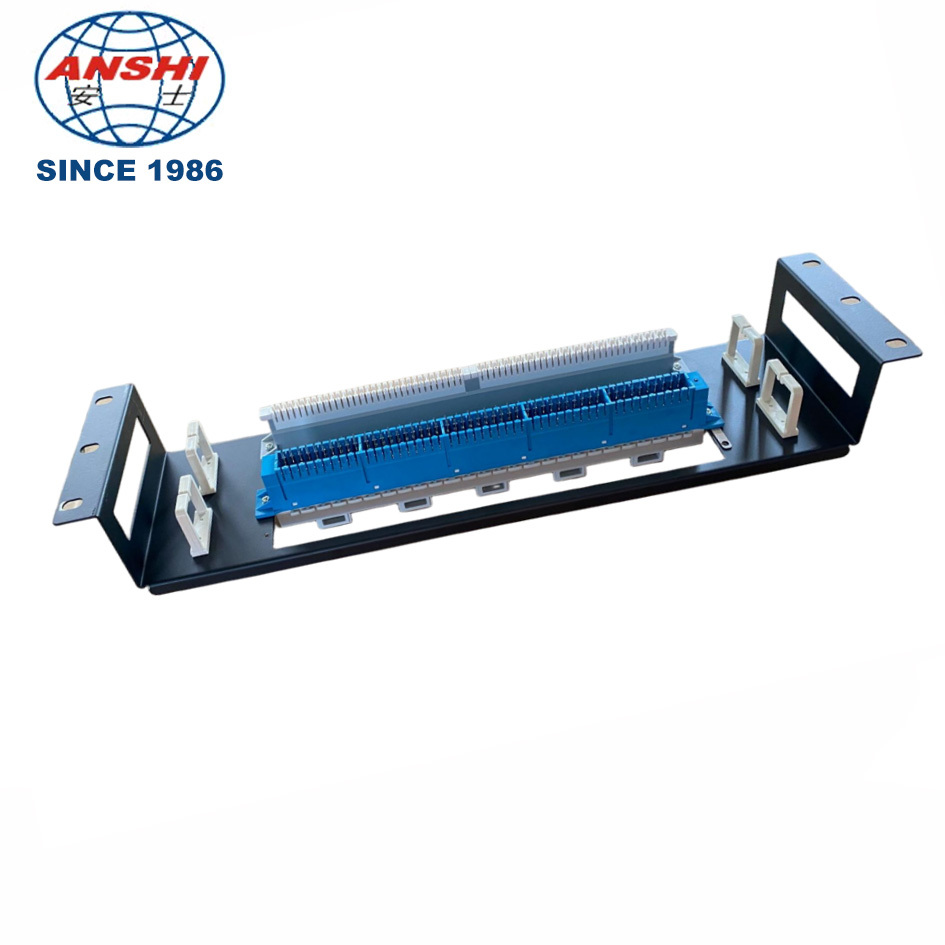

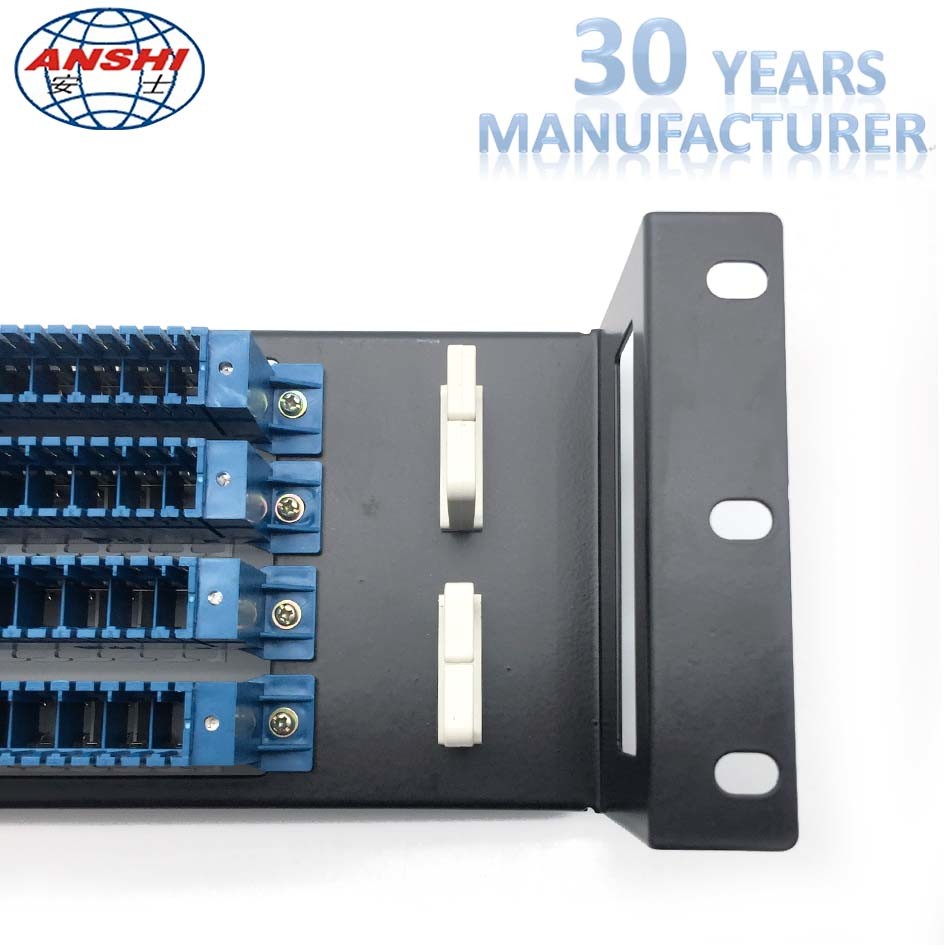

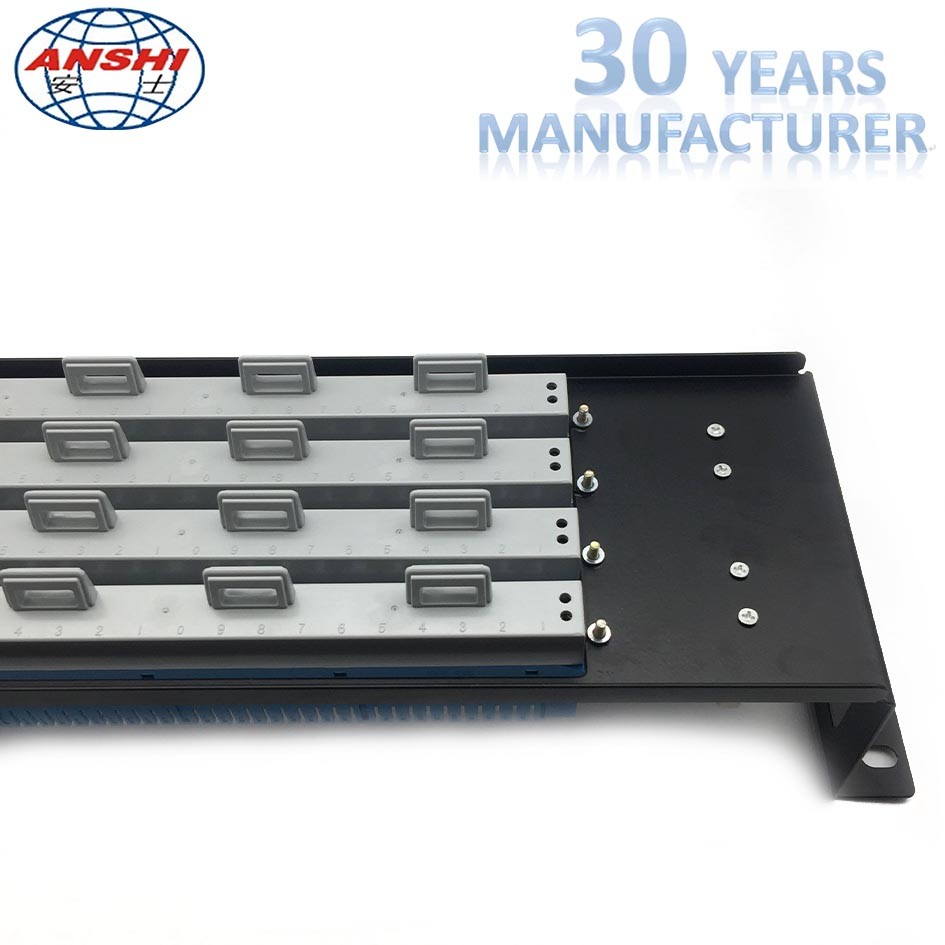

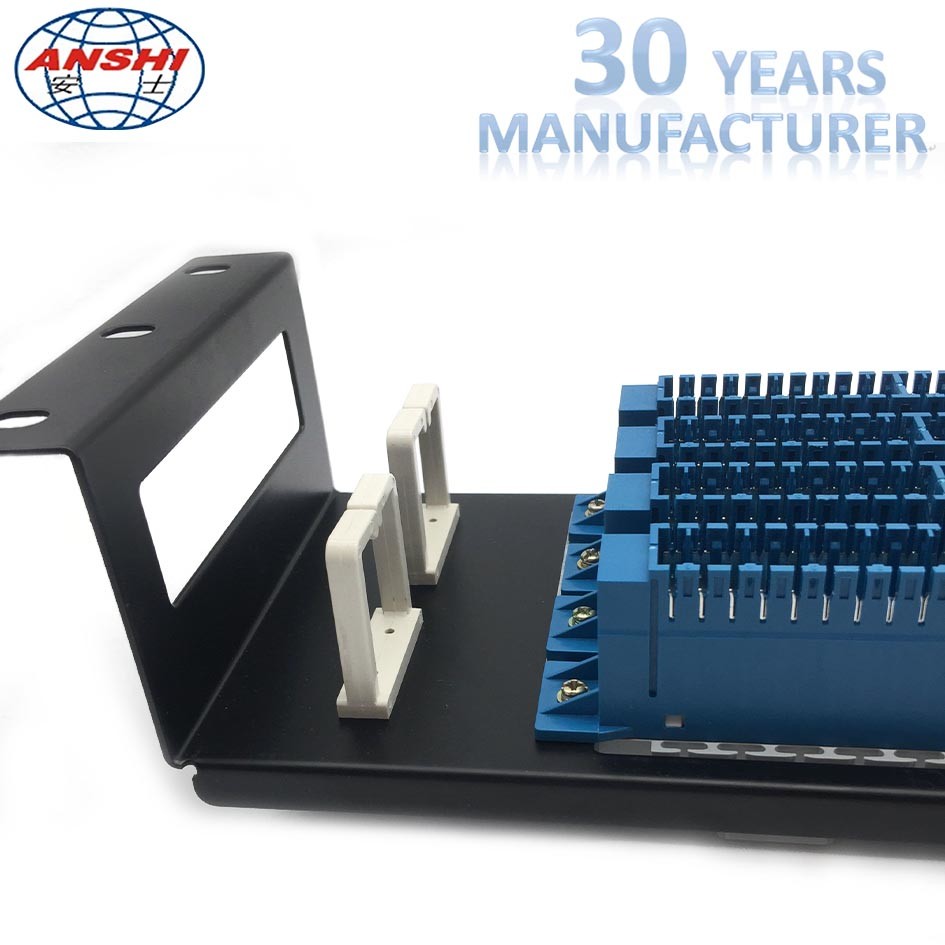

19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block

  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
  • 19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-MDF-RH-P
Minimum Order Quantity 1 set
Price $5~$30
Delivery Time 2~15 Work Day
Payment Terms L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability 1000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 100 PAIRS Cable Side Terminal Block Application Rack Mount
Material ABS Color Blue
Capacity 100 Pairs
Highlight

intermediate distribution frame

,

digital distribution frame
Leave a Message
Product Description
19 Inch 100 Pairs Cable Side MDF Main Distribution Frame Telephone Terminal Block
The protecting module is used in MDF (main distribution frame) to connect cables and protect equipment and workers from voltage and current overload. The module features a high-density design for compact frame integration and optimized capacity rate.
Main Features and Functions
  • Connection function: cable and patch cord connection
  • Normally open contact: connects when protector is inserted
  • Independent line separation
  • Dual-contact points on each clamping terminal
  • Front operation: all operations performed from the front
Main Specifications
Available cable diameter 0.32mm~0.6mm fiber; 1.4mm maximum (including insulation)
Insulation resistance ≥1000MΩ
Electrical strength 1000V (45~60Hz)/min without punching and arc
Contact insulation ≤7MΩ
Post-test contact resistance ≤3MΩ increase
Protector reed contact pressure >5N
Pull away strength ≥25N
Clamping life >200 cycles
Transmission characteristics (4kHz~2.2MHz) Insertion loss ≤1.5dB; Return loss ≥10dB
Flammability Compliant with GB/T5169.7-1985
Optional Choice:
Can depends on customer request, to put 25 Pairs-100 Pairs cable side terminal block and 16 Pair~128 Pairs Exchange Side Terminal block into 1 rack mount frame

19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block 0

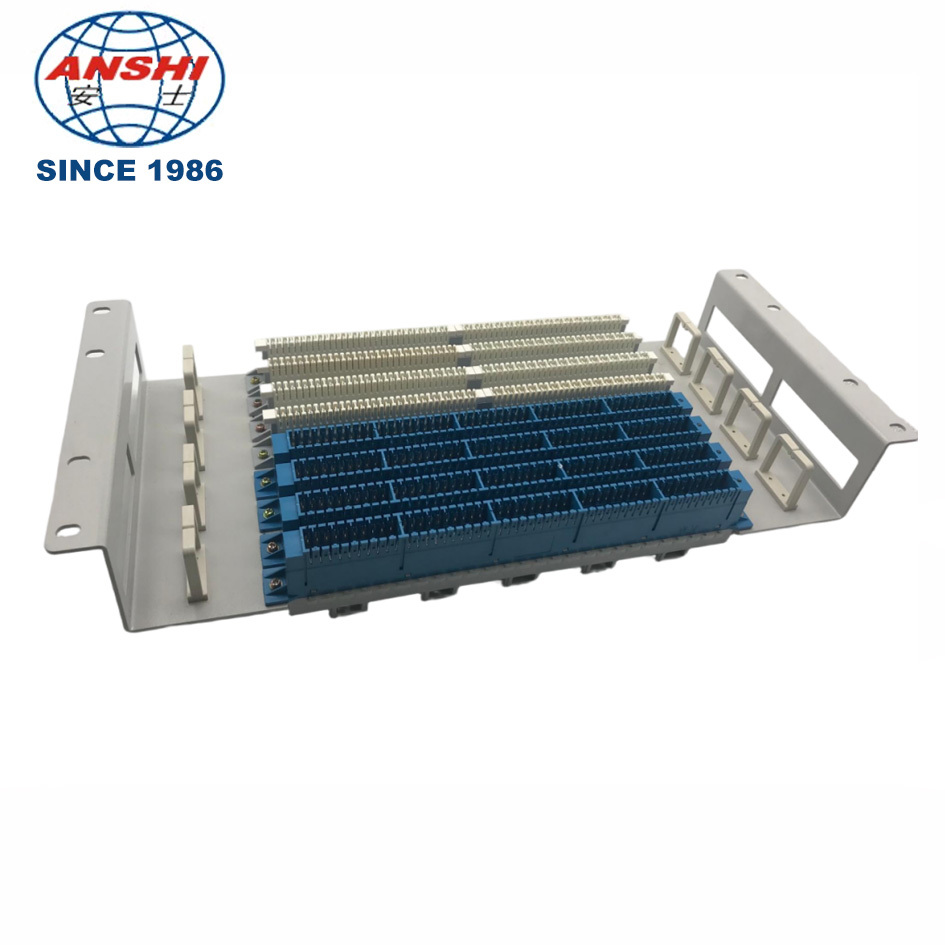

25 Pairs Cable Side Terminal Block (External Line)+16 Pairs Exchange Side Block (Internal Line)

Protector Unit Need to used in Cable Side Terminal Block

25 Pairs need 25 pieces protector unit

19 Inch Cable Side MDF Main Distribution Frame 100 Pairs Telephone Terminal Block 1
