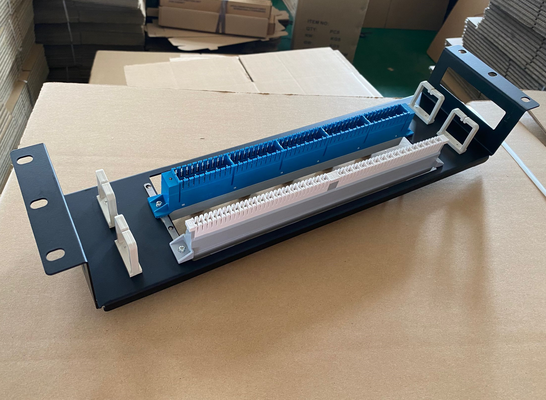

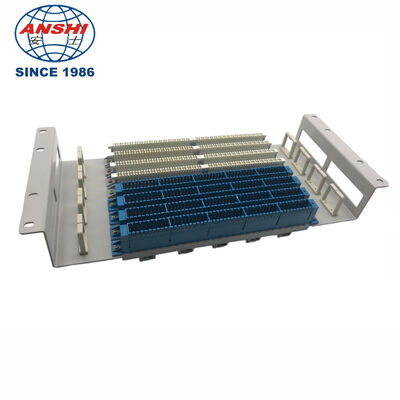

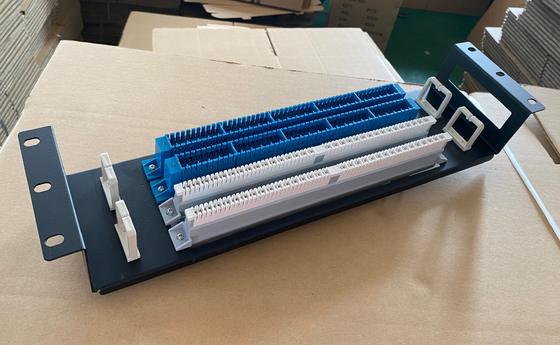

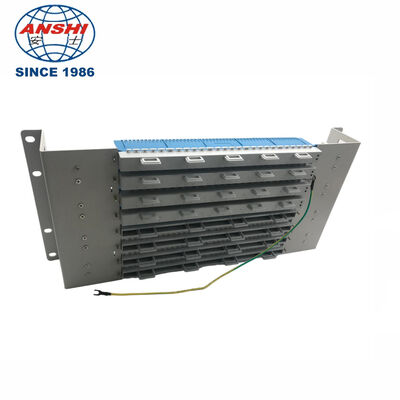

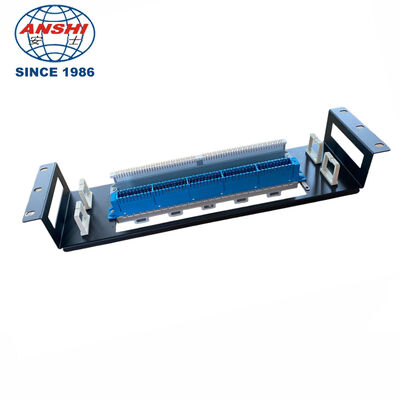

Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication

Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication

  • Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication
  • Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication
  • Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication
  • Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication
  • Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication
Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-MDF-RH-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Supply Ability: 1000pcs/week
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Product Name: 128 Pair MDF Cable Side Teleophone Distribution Frame Application: Telecommunication
Material: ABS Color: Grey And Blue
Capacity: 128 Pairs Type: Rack Mount
High Light:

intermediate distribution frame

,

optical distribution frame



Sunsea Type 128 Pairs MDF Main Distribution Frame Telephone Terminal Block



Description

The protecting module is used in MDF(main distribution frame),which is used to connect the cable and protect the equipments and workers from the overload of voltage and current .The module adopts high-density design to make the frame more compact . The design is optimize the capacity rate.

Main Features and functions

1.Connection function: connection of the cable and patch cord;
2.Normally open contact :insert the protector to connect it ;
3.Each line is separated;
4.Dule-contact point on each clamping terminal;
5.Front operation: all the operation is from the front;

Main Specifications

1.Available cable:Diameter of fiber:0.32mm~0.6mm;Maximum diameter(including insulate layer)1.4mm;
2.Insulation Rs:≥1000MΩ;
3.Electrical strength:1000V(45~60Hz)/min without punching and arc;
4.Contact insulation:≤7MΩ;
5.After all the tests,the increase contact Rs≤3MΩ;
6.The contact pressure of protector reed>5N;
7.Pull away strength ≥25N;
8.Clamping life>200;
9.Transmission characteristic (4kHz~2.2MHz);
10.Insertion loss≤ 1.5dB;
11.Return loss≥ 10 dB;
12.Flammability concord to GB/T5169.7-1985;





Sunsea Type MDF Main Distribution Frame 128 Pairs For Telecommunication 0
