High Speed, High Quality, Best Service
 |
| Place of Origin: | China |
| Brand Name: | ANSHI |
| Certification: | ISO9001, SGS |
| Model Number: | AS-ODF-FDB-6 |
| Minimum Order Quantity: | Can discuss |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 10000pcs/week |
| Name: | Fiber Optic Junction Box | Connector Type: | SC/FC/ST/LC |
|---|---|---|---|
| Dimension: | 14.50x20.50x4.00cm | Capability: | 6 Core |
| Application: | FTTH | Material: | Plastic |
| Color: | White | ||
| High Light: | Fiber Optic Distribution Box,Outdoor Distribution Box |
||

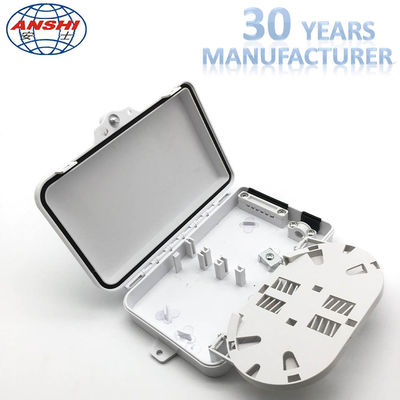

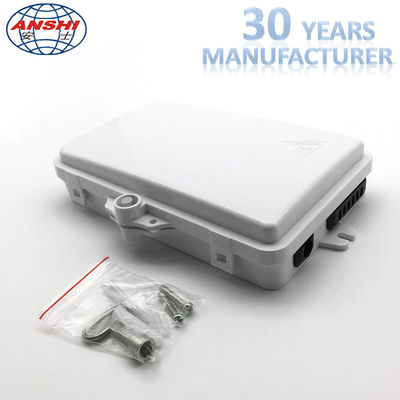

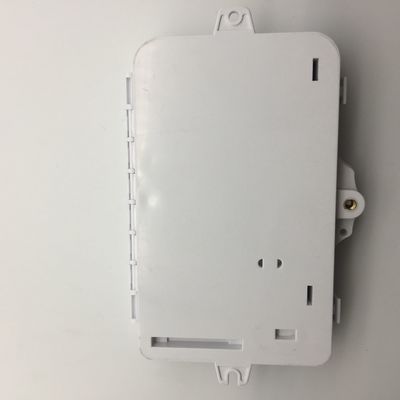

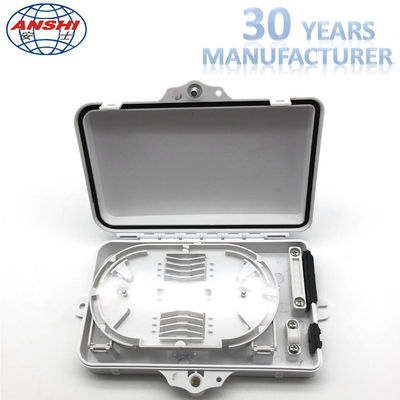

6 Cores FTTH Fiber Optic Outdoor Distribution Box Wall Mount With Screw Lock
6 cores FTTH Fiber Optic Outdoor Distribution Box can manage both single fiber and ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.
Features:
1. With cold-roll steel box, splicing unit, distribution unit and panel
2. Various panel plate to fit different adapter interface
3. Adapters can be installed: FC, SC, ST, LC
4. Suitable for single fiber and ribbon & bundle fiber cables
5. Special design ensures the excess fiber cords and pigtails in good order
6. No interval and easy for management and operation
Specification:
| Working temperature | -25~+60°C | Storage temperature. | -40~+70°C |
| Humidity | 93%(+30°C) | Air Pressure | 70KPa~106KPa |
| Size (H×W×D) mm | 212x144x42 | Weight (kg) | 0.3 |
| Color | White | Material | ABS+PC |
| Functions: | Cable terminal, passive splitter | port | 1 input port and 6 output ports |
| Capacity (cores) | 6(SC simplex),12(LC duplex) | Installation Models | Wall Mounted |
| Connect Models | Fusion splicing,Mechanical Splicing, FMC | Max number of splices | 12 * fusion or 6* mechanical |
| Drop cable (Round) | ≤9mm | Curvature Radius (mm) | ≥30 |
