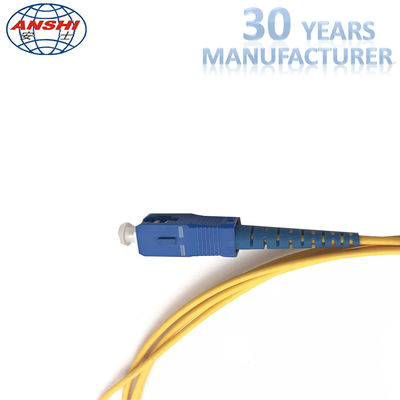

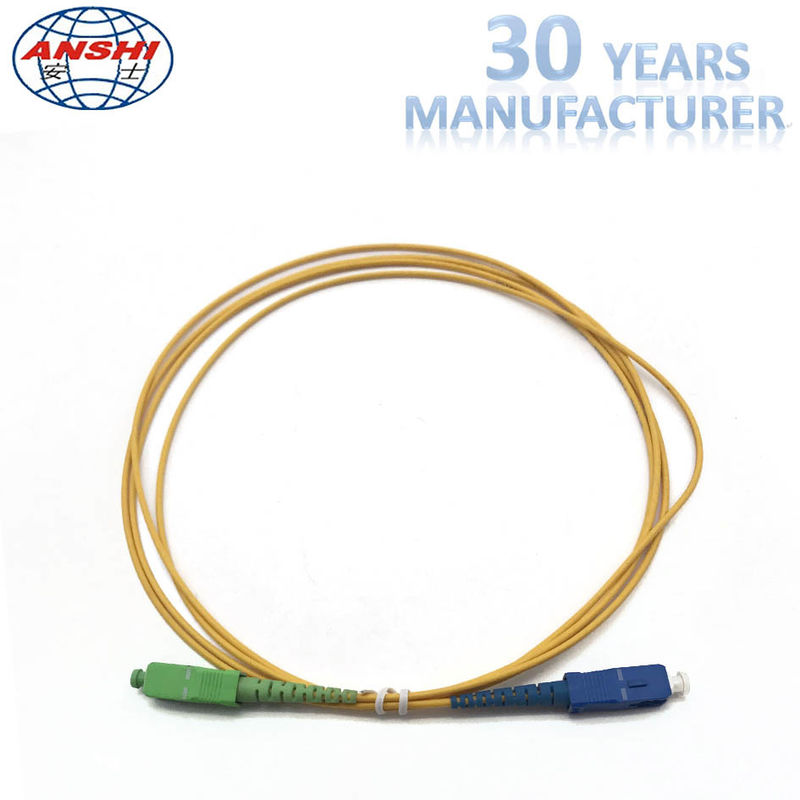

2.00m 1 Meter Simplex Single Mode Fiber Patch Cables SC / UPC - SC / APC

2.00m 1 Meter Simplex Single Mode Fiber Patch Cables SC / UPC - SC / APC

2.00m 1 Meter Simplex Single Mode Fiber Patch Cables SC / UPC - SC / APC
video
2.00m 1 Meter Simplex Single Mode Fiber Patch Cables SC / UPC - SC / APC
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ISO9001
Model Number: AS-ODF-SC/SC
Payment & Shipping Terms:
Minimum Order Quantity: Can discuss
Price: Negotiable
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Product Name: Fiber Optic Patch Cord Return Loss: ≥50.00dB(PC) ≥65.00dB(APC)
Connector Type: SC/APC SC/UPC Length: 1m,2m,3m...can Customize
Connector: Simplex / Duplex Fiber Type: Single Mode Or Multimode
High Light:

Fiber Optic Jumper Cables

,

Duplex Fiber Optic Cable



2.00m 1 Meter Simplex Single Mode Fiber Patch Cables SC / UPC - SC / APC



Quick Details:

Place of Origin: CN,Zhejiang
Brand Name:ANSHI
Model Number: SC/UPC-SC/APC
certification: ISO9001 ROHS


Packaging & Delivery:

Packaging Details:Neutral PP bag,Carton Box or as Customized
Delivery Detail:7 working days


Application:
1. Telecommunications & Data communications
2. LAN(including FTTH and FTTD)
3. Componenttermination
4. CATV ,Network ,WAN


Features:
1· Meet NTT SC Standard
2· Pull-proof Design
3· Simplex or Duplex Configuration
4· Compliant with ANSI, Bellcore, TIA/EIA, IEC Standards


Specificatioons:
Cable Mechanical Characteristics :

Tensile strength(N) Long Term 200
Short Term 660
Pressure(N/100mm) Long Term 300
Short Term 1000
Bending Radius(CM) Dynamic 20×D (D: Cable Diameter)
Static 10×D (D: Cable Diameter)


Fiber

Fiber Type(core/cladding dimension) 9/125,50/125,62.5/125,10G50/125(0M3)



Transmission Characteristics

  SMF 50/125 62.5/125
  1310/1550(nm) 850/1300(nm) 850/1300(nm)
(db/km)Attenuation(db/km) ≤0.4/0.3 ≤3.5/1.5 ≤3.5/1.5
(MHz·km)Minimum Bandwidth(MHz·km) ----------------------- ≥400/400 ≥160/500



Environmental Characteristics

Storage Operating Temperature -20℃～+60℃


2.00m 1 Meter Simplex Single Mode Fiber Patch Cables SC / UPC - SC / APC 0

Tag:

Duplex Fiber Optic Cable,

Fiber Optic Jumper Cables,

Single Mode Fiber Optic Cable
