|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Supply Ability:||500 pcs/week|

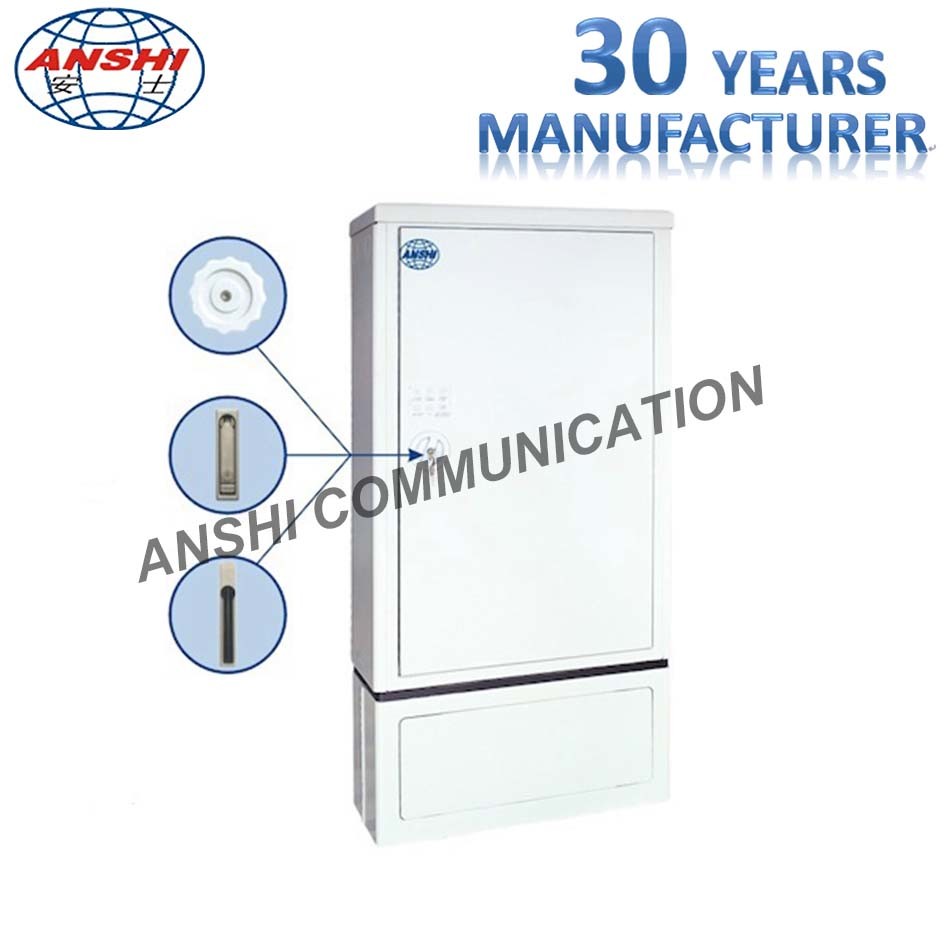

|Product Name:||Cable Cross Connection Cabinet||Material:||SMC|
intermediate distribution frame,
digital distribution frame
1. Can be with 1200pair and 2400pair capacity
2. Material: SMC or Cold rolled steel .Waterproof: IP65
3. Floor Standing type,with installation accessory.

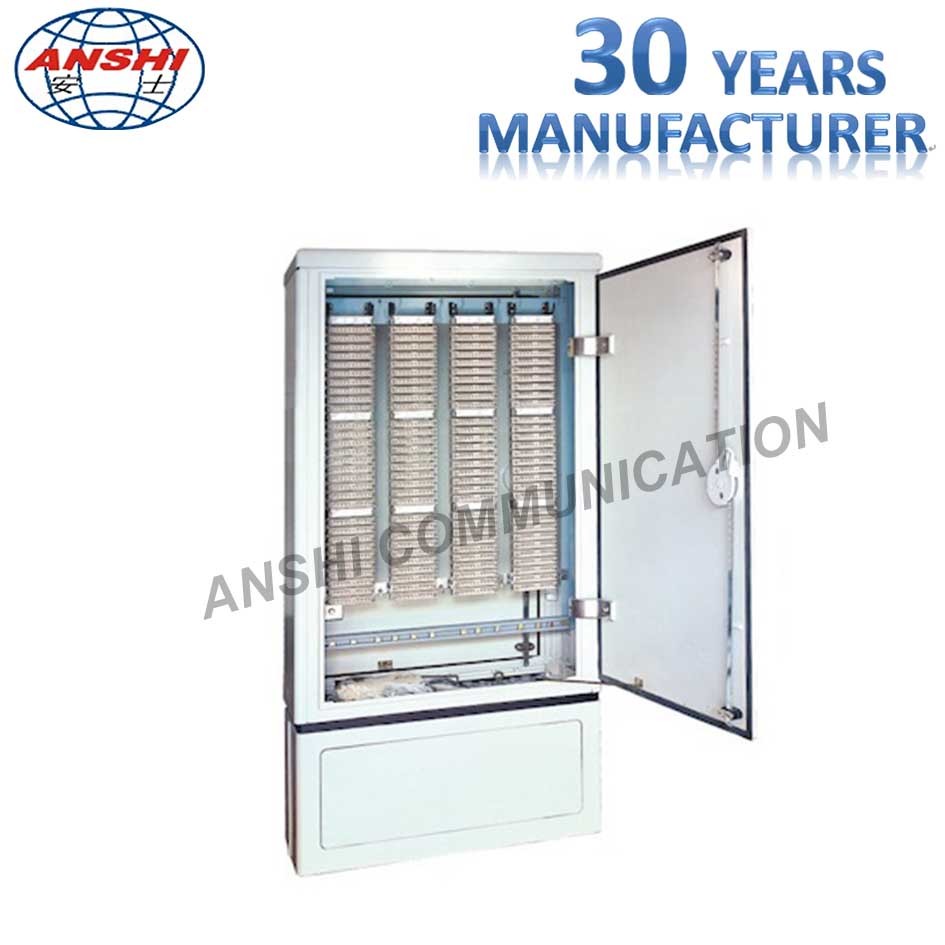

4. For LSA 10pair back mount modules,disconnection module type or connection module type as per clients' selection.Quotation including the Mounting Frame but the LSA Module will be ordered separately. The mounting frame you can choose 100pair tag block or 300pair frame.
5. With key and lock for secure, key lock.
6. Application:Outdoor or indoor .Delivery Pack can be sepately or completely installed.
The Distribution Box is desired for cable/fiber distribution, made up of SMC (unsaturated polyester reinforced with fiberglass), molded under high pressure and temperature. It is composed by two parts, 1200pair and 2400pair capacity is available with this cabinet .Material cold-rolled steel is also available .
The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, High Band Modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB Module,Subscriber Terminal Block, back-mount frames, protection systems and other related accessories.
Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used Waterproof Distribution Box for outdoor application .There is earth wire inside for protection.

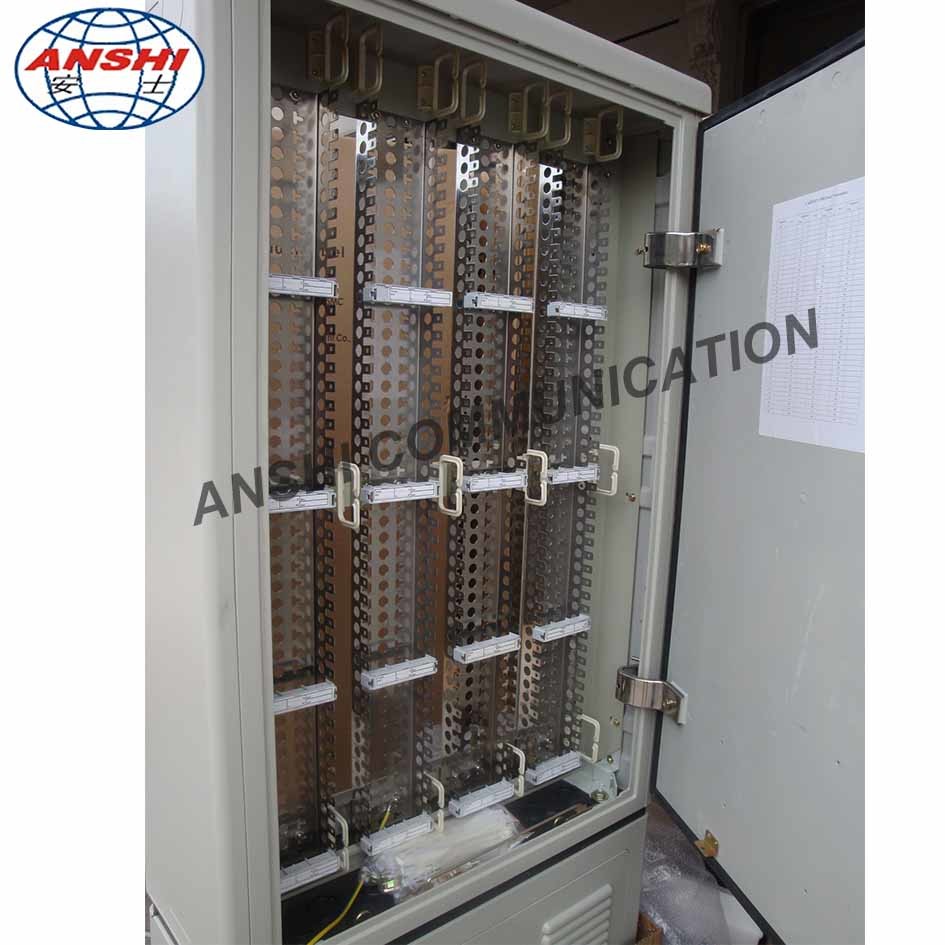

It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.
1.The whole cabinets offers as a completely set,packed with pallet for better transportation protection.Saving the time for installation at destination and use directly,no training for installation steps.The disadvantage is freight costly.
2.The cabients offers separtely parts,packed with plastic and cartons,and then with pallet.Freight can be save a lot and also cabinets are better protected during transportation.It will takes some time for professional operaters to install all the parts to be a set.
3.The above two packing solution is up to your order, it mainly depends on your choice.
For mounting to walls,wood,metal or concrete poled
Distribution Box: Standard with expansion bolt for mounted.T
|Material||SMC or cold rolled material|
Size for cabinet without bottom part: H=1000mm;W=810mm;D=340mm
Size for bottom part: H=350mm;W=760mm;D=290mm
|Service tempreture||-40℃ to +60℃|
|Serving Humidity||<95% (at +40℃)|
|Insulate resistance||2X104 MΩ 500V (DC)|
|Impact strength||>980N on exterior surface; >200N on hinge|
