Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX

Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX

  • Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX
  • Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX
  • Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX
  • Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX

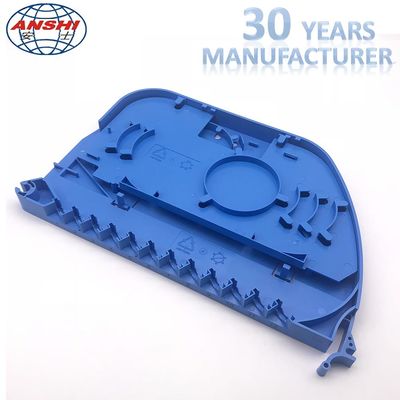

Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ISO9001,SGS
Model Number: AS-ODF-12RT
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs, can discuss
Price: Negotiable
Supply Ability: 900,000 pcs per week
Contact Now
Detailed Product Description
Name: Fiber Optic Patch Panel Material: ABS (94V0 Flame Retardent)
Fiber Core: 12 Core Color: Blue And Grey
Special: Rotate, Din Rail Application: Optical Distribution Frame
High Light:

Fiber Optic Distribution Panel

,

Fiber Optic Distribution Unit

Rotate 12 Cores Fiber Optic Splice Tray with Din rail, ODF Fiber Optic Distribution Tray for FTTH FTTX



Key Specifications/Special Features:

Feature
  • Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
  • With splice trays in the box and integrate heat sealing and wiring into one.
  • Apply doublesided structured optical fiber splice tray to make full use of the two sides of the board.
  • It's suitable for ribbon or non ribbon optical fiber cable.
  • Every tray can be clamped with 12FC/SC/ST adaptors.
  • Lots of panel plate to fit different adapter interfac
  • Suitable for ribbon and single fiber
  • Easy for management
  • 12 core Slidable Rackmount Fiber Optic Distribution Frame(ODF) has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19 inch rack mount for ST, SC, LC, MTRJ, FC adapters.
  • Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time
Application
  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
  • CATV

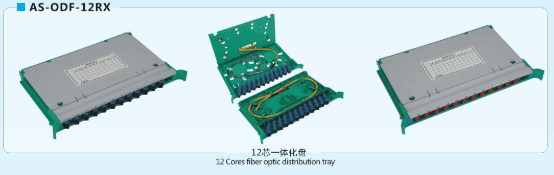

Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX 0

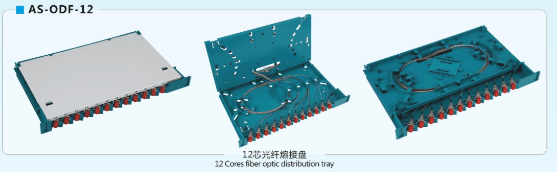

Rotate 12 Cores Fiber Optic Splice Tray ODF Fiber Optic Distribution Tray for FTTH FTTX 1
