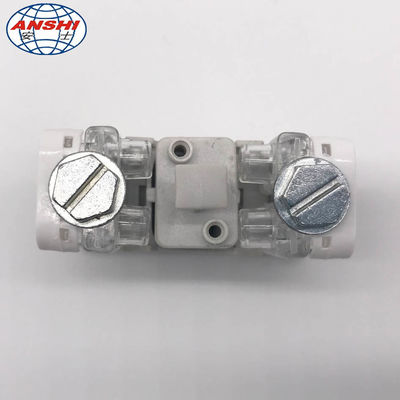

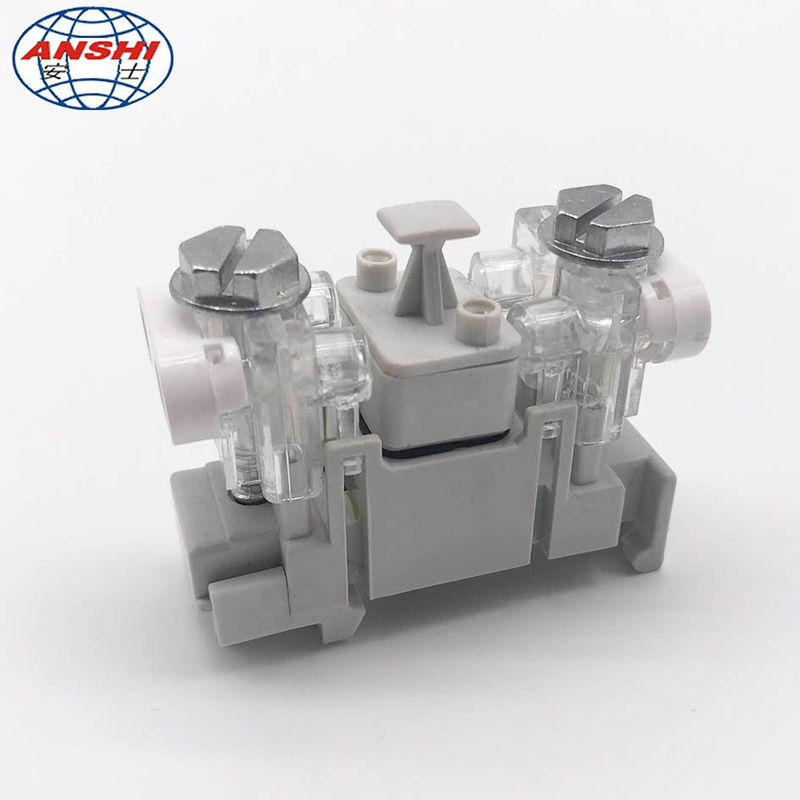

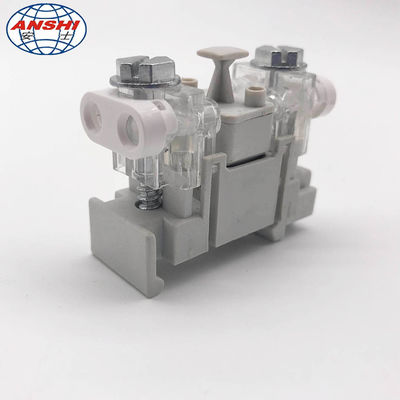

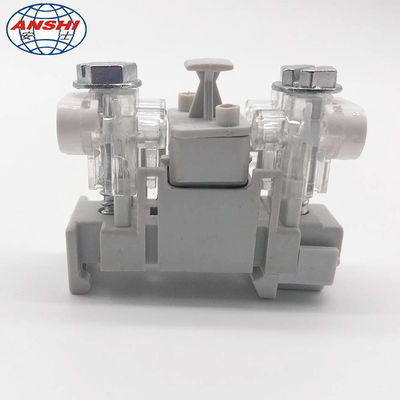

ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection

ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection

  • ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection
  • ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection
  • ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection
  • ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection
ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-STB
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/week
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Material: Pc Environment Condition: 5-40 Degree Celsius ，Relative Humidity <85% (+30 Degree Celsius)，Atmospheric Pressure, 70-106KPa
Pulling-out Force: Not Less Than 25N Standard: GB/T 5169.7-1985
Wire Range: 0.6-1.2mm Installation: No Special Tools Required For Installation.
High Light:

vx module

,

telecom distribution box

ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection



The Subscriber Terminal Block module provide a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options. Removal of the plug-in module does not disturb wire connections but makes contacts to them available for testing of both sides of the network, DWP is a termination, protection and test device, intended for connecting external lines to the customer networks. The copper pairs are terminated by screw-operated IDC contacts, designed for wire diameters in the range 0.6 -1.25 mm.



Features

• Insulation displacement (IDC) Type Connections

• No wire stripping required.

• No special tools required for installation.

• Will accept 0.4 - 1.0mm (26-18 gauge) conductors.

• Totally encapsulated wire connection points provide complete protection from all environmental conditions.

• Visually inspect the integrity of all wire connections.

• Reusable - wires may be removed and reinserted without affecting IDC contacts or integrity of seal.

• Will permit up to 100 wire terminations on both line and subscriber side connections.

• Rugged Design and Construction.

Applications

• Designed for mounting on standard DIN rails.

• DIN rail doubles as an earth point.

Packaging & Shipping
ITEM:STB Module w/t protection
QTY: 400 PCS
N.W.: 16 KGS
G.W.: 17 KGS
MEAS: 44 * 27 * 24 CM





ANSHI single 1 Pair Subscriber Terminal Block STB Module Without Overvoltage Protection 0
