ANSHI 4 & 5 Paris External Distribution Subscriber Terminal Block STB Module Box
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 4 Pairs STB Module | Protection Level | IP55 |
|---|---|---|---|
| Protection | Over-voltage | Environment | Indoor Or Outdoor |
| External Size | 210*135*85mm | Installation | Wall Or Pole |
| Highlight | vx module,stb module |
||
Product Description

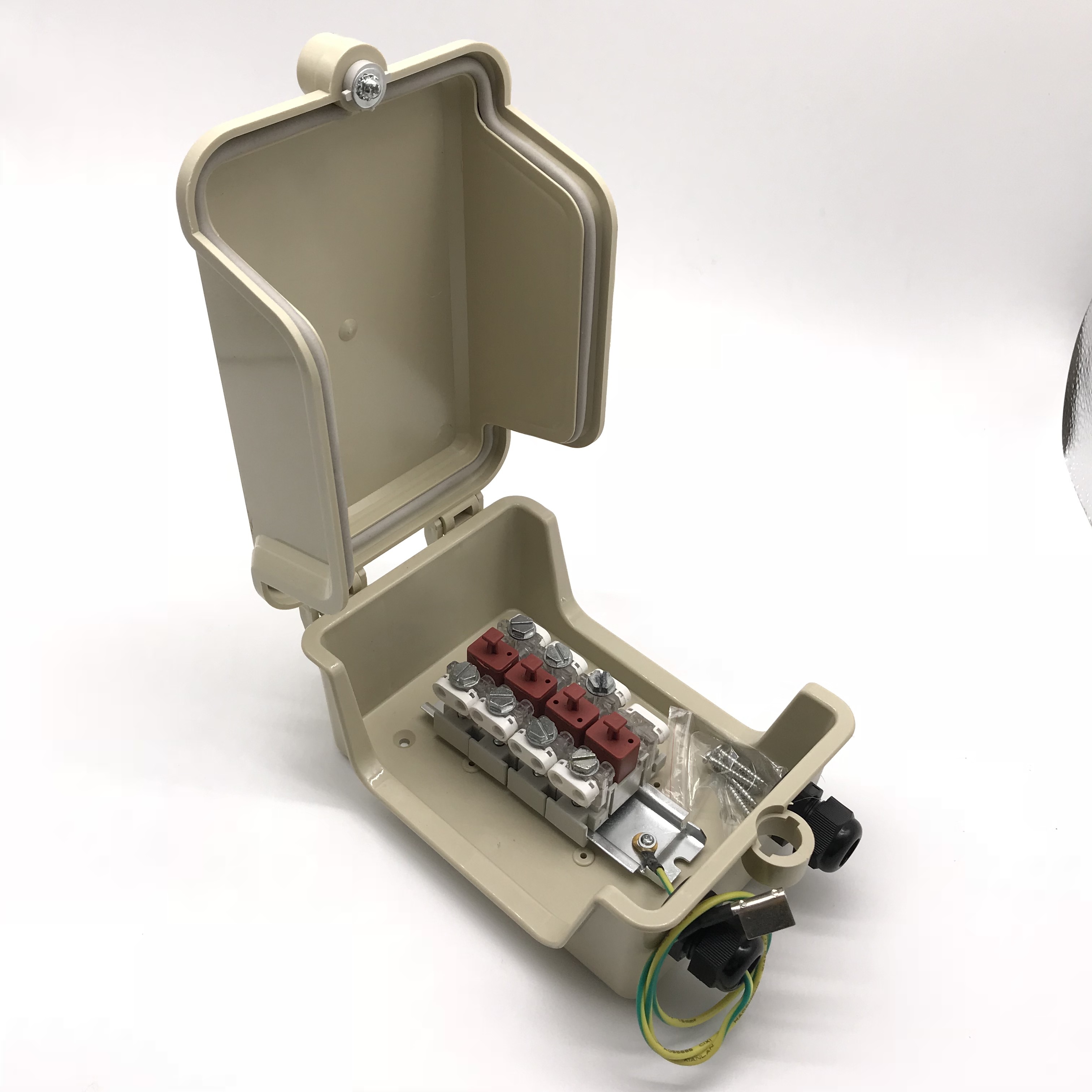

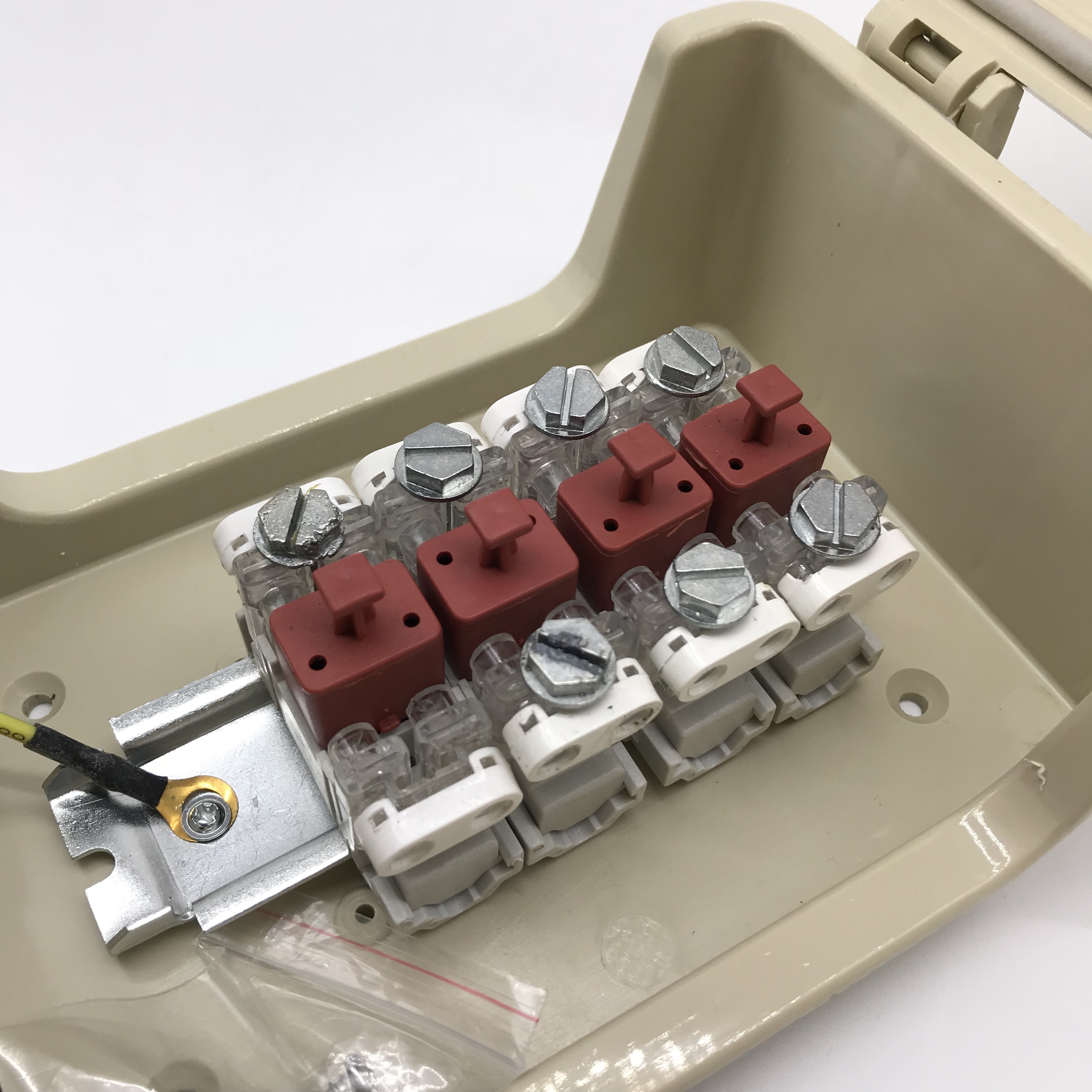

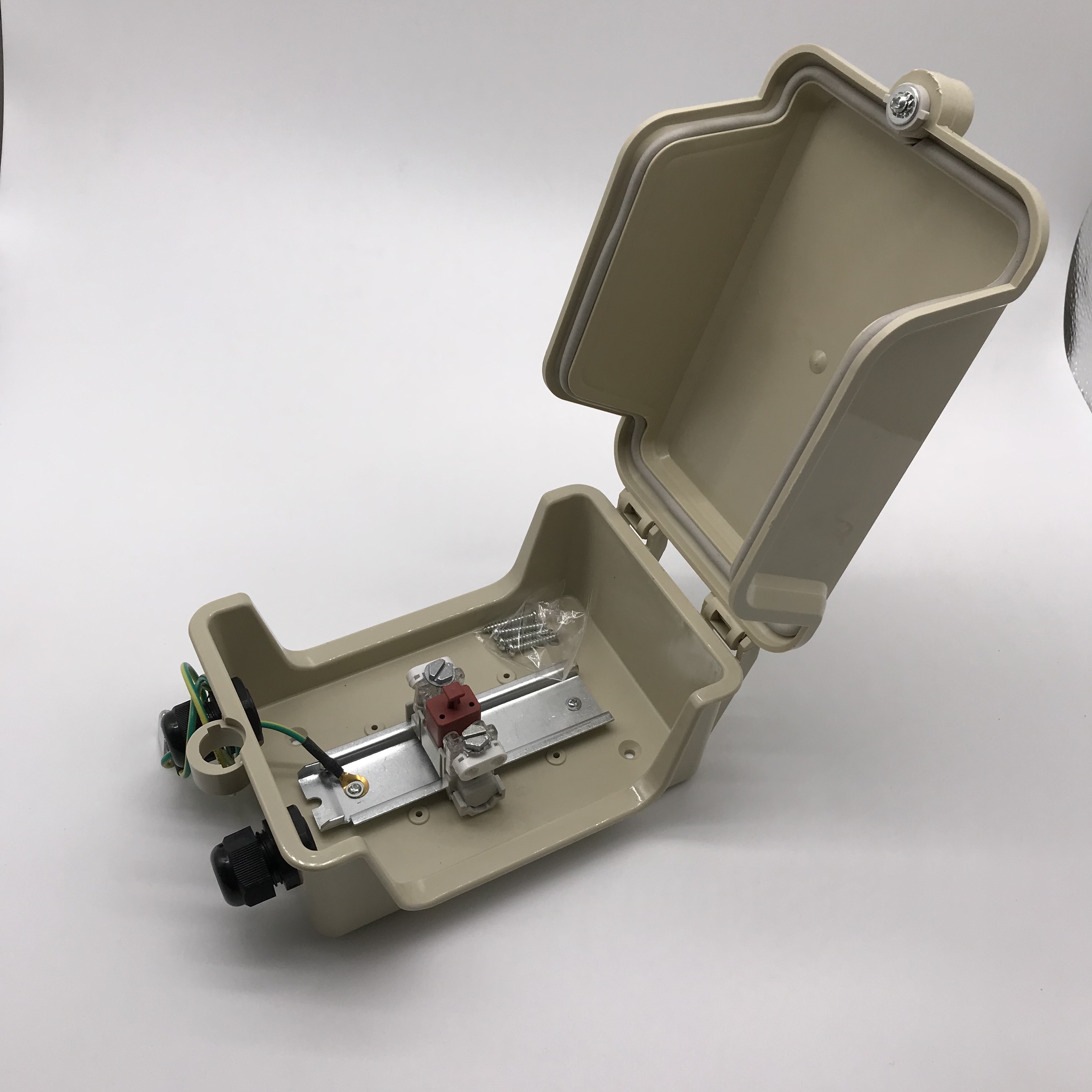

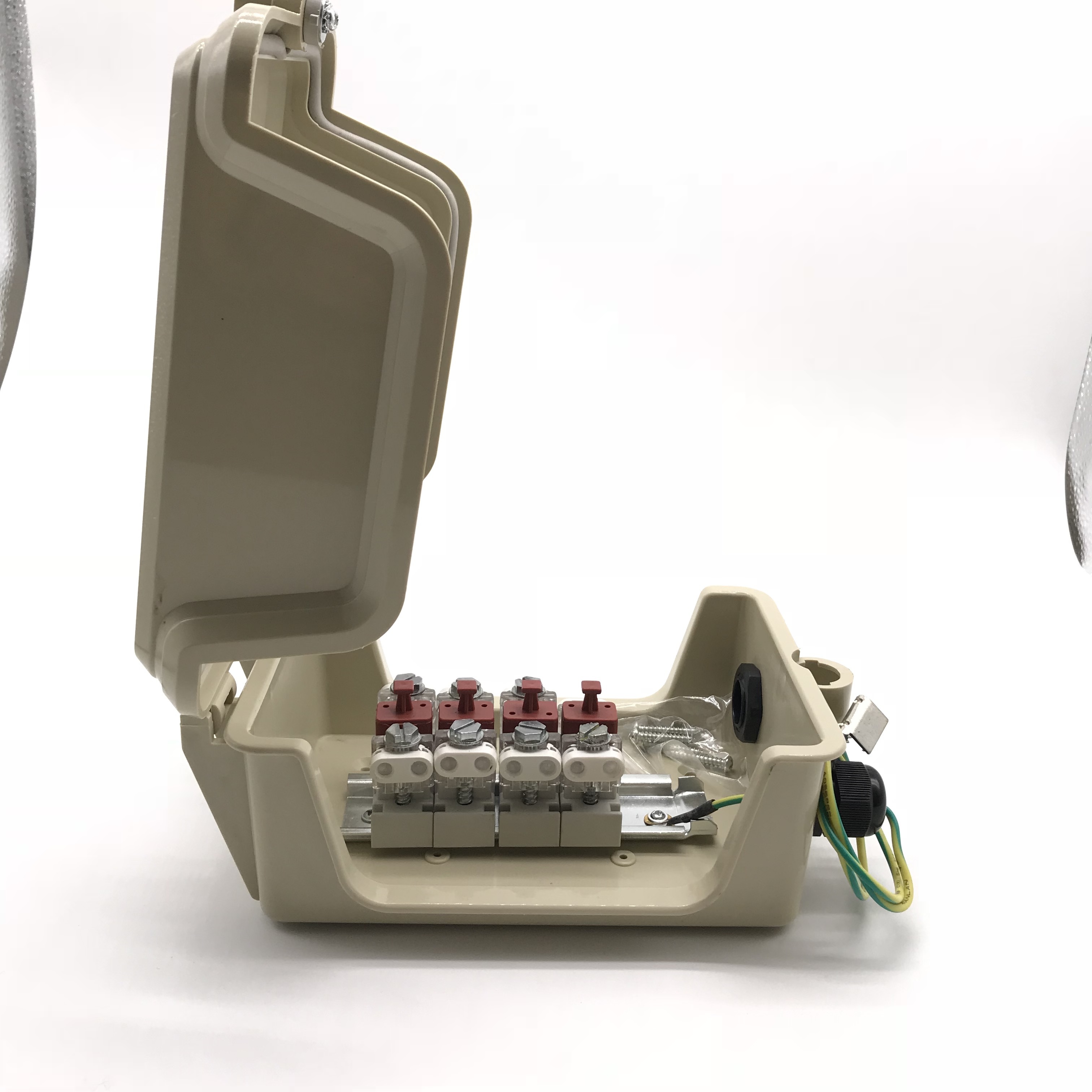

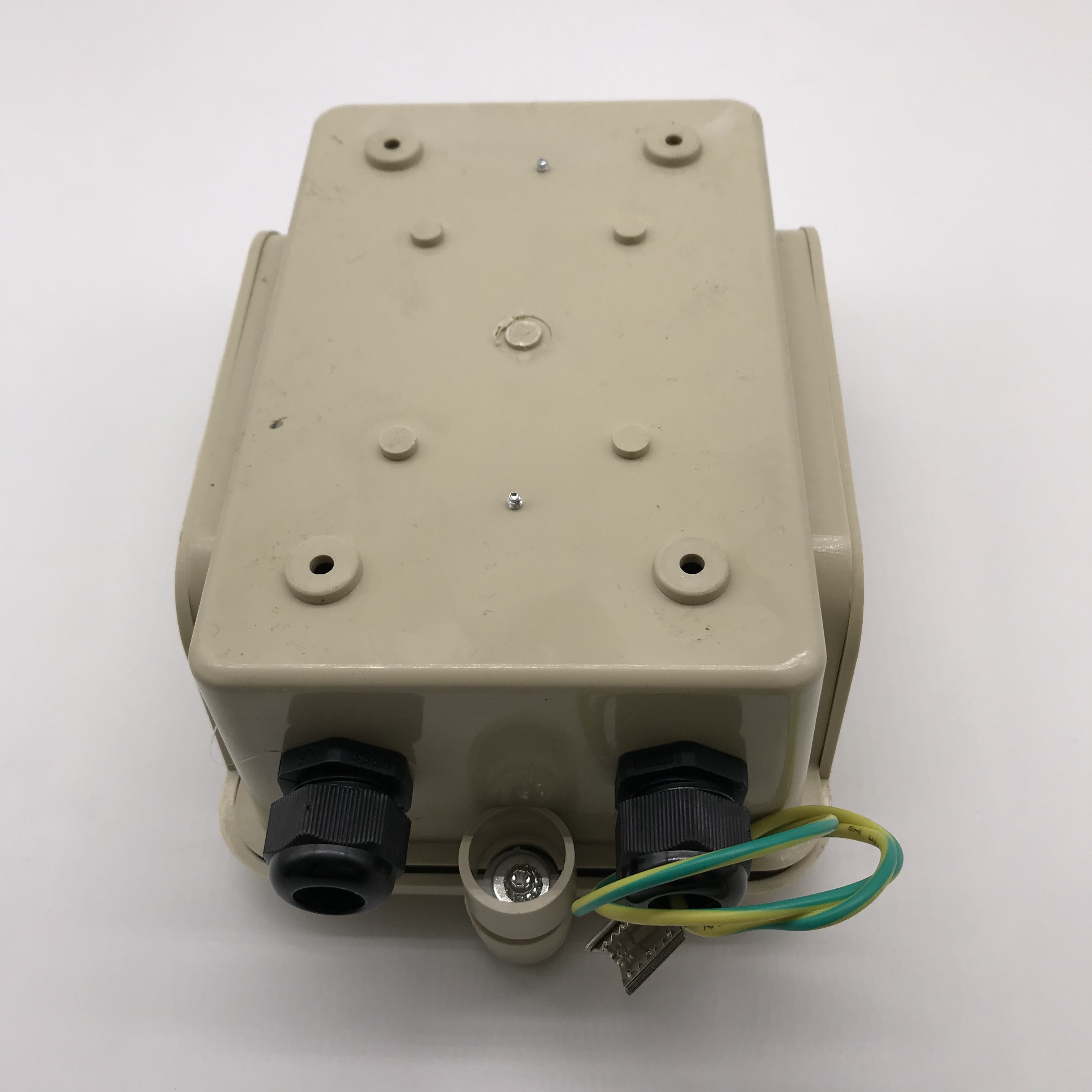

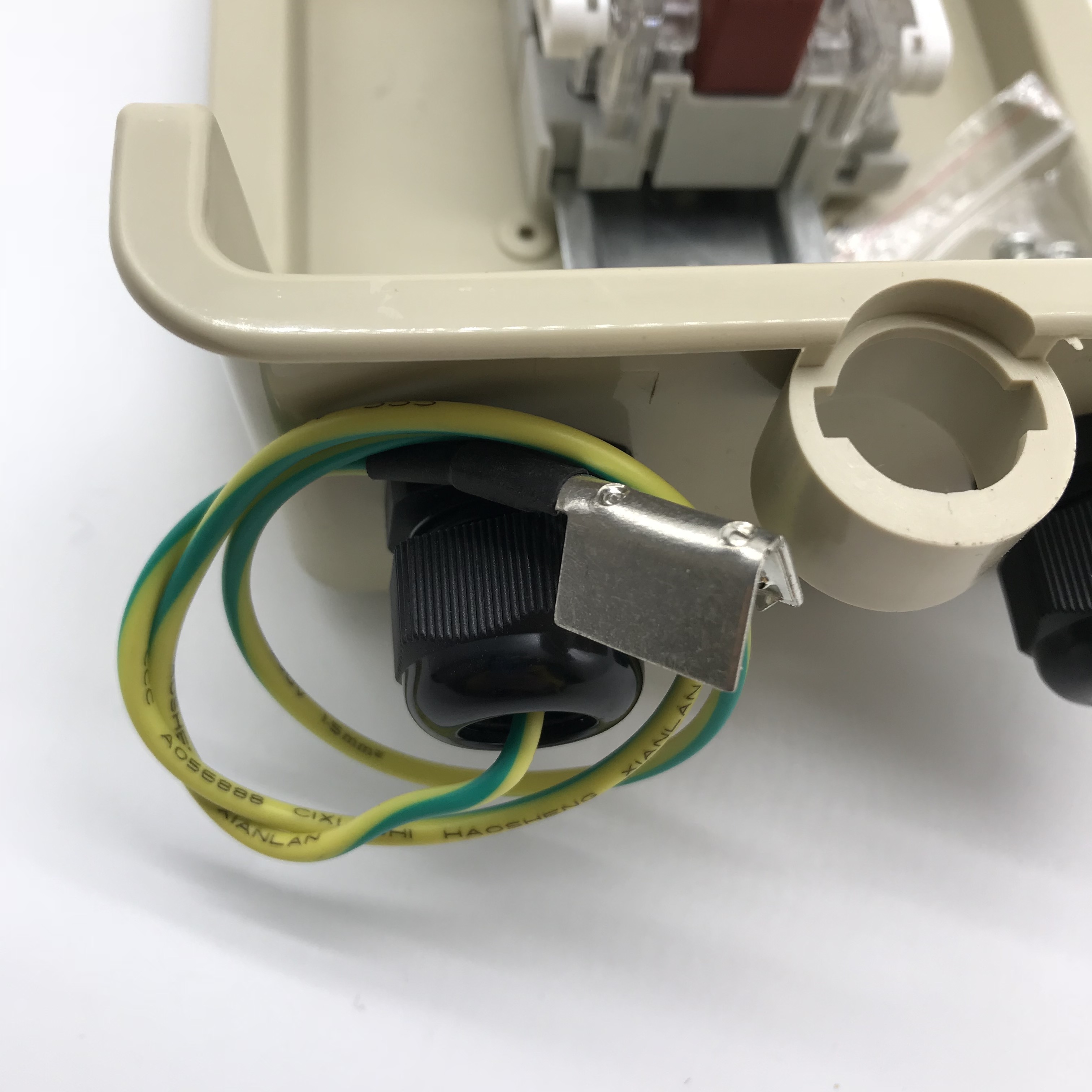

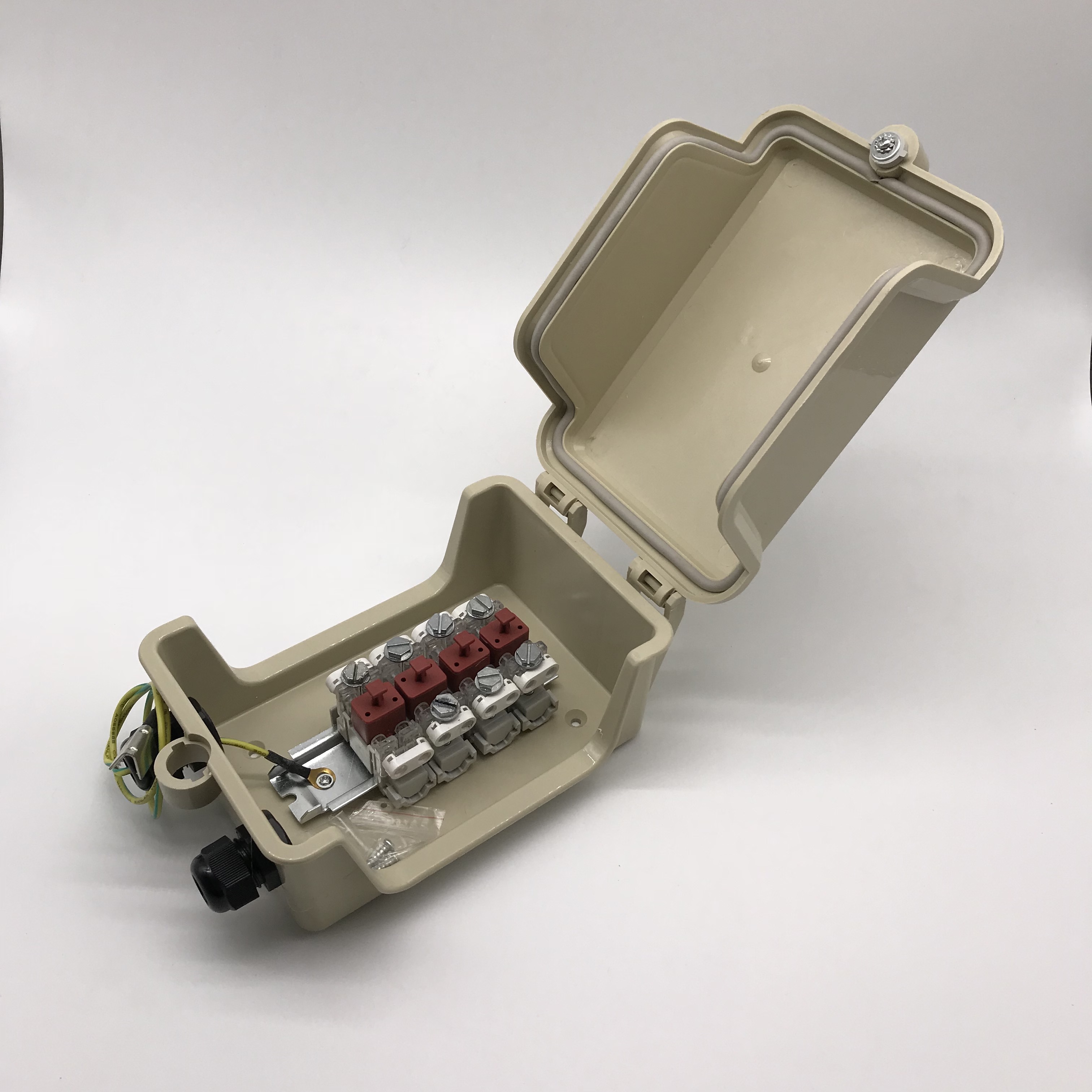

ANSHI 4&5 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail
| Main Features |
|
Made of highly impact resistant ABS
|
| Protection IP 56 |
| Smallest distribution box designed for outdoors |
| Easy operation and wide range of wire |
|
Technical Parameters
|
| Working temperature: -20℃ ～ 40℃ |
| Storage temperature: -25℃ ～55℃ |
| Relative humidity: ≤85%(+30℃) |
| Atmospheric pressure: 70kPa ～106kPa |
| Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks. |
| The labels are clear and complete. |
| Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ |
| Contact resistance between contacts: under normal ambient conditions, the contact resistance between contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ |
| Contact resistance between conductor and contact: under normal ambient conditions, the contact resistance between contacts ≤3 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤2 mΩ. And after terminating for 200 times, the increasing resistance ≤2 mΩ. |
| Dielectric strength: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts is able to withstand an AC voltage of of 1000V (virtual value) at 45Hz~60Hz sinowave for 1 minute, without spark over and flying arc |
| Gas tight performance: contact touches the conductor at both sides, and thus forming the gas tight area, while the area of gas tight occupies ≥50% of the touched area on each side. |
| Conductor diameter range: 0.32mm-0.6mm, while insulation ≤ 1.4mm |
| Pulling strength:≥25N while pulling from the vertical side of the contacts |
| Flame retardant performance: all plastic parts are flame retardant, reaching grade of UL FV0 |
| Life circle: ≥200 times |
