JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block

  • JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block
  • JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block
  • JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block
  • JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block
  • JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block
Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-10VB
Minimum Order Quantity can discuss
Price Negotiable
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 1000pcs/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS Printed Silver
Capacity 10 PAIRS Model No. JPX658-BLK-E10VB
Protect Inside Line Application Telecommunication
Highlight

intermediate distribution frame

,

optical distribution frame
Leave a Message
Product Description

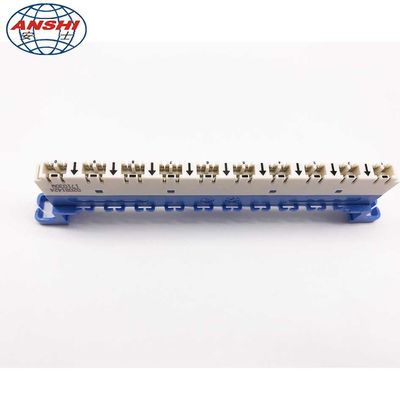

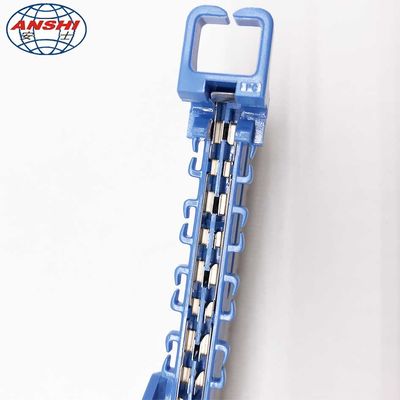

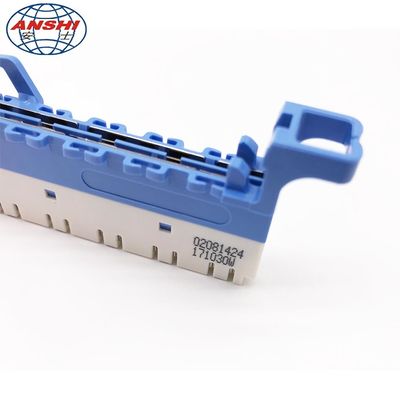

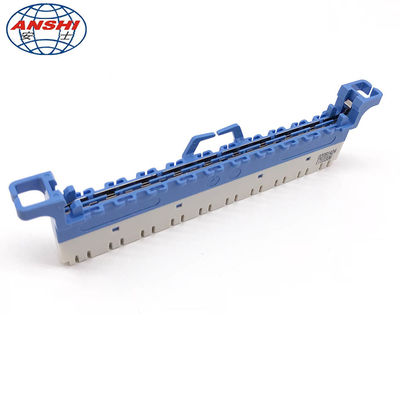

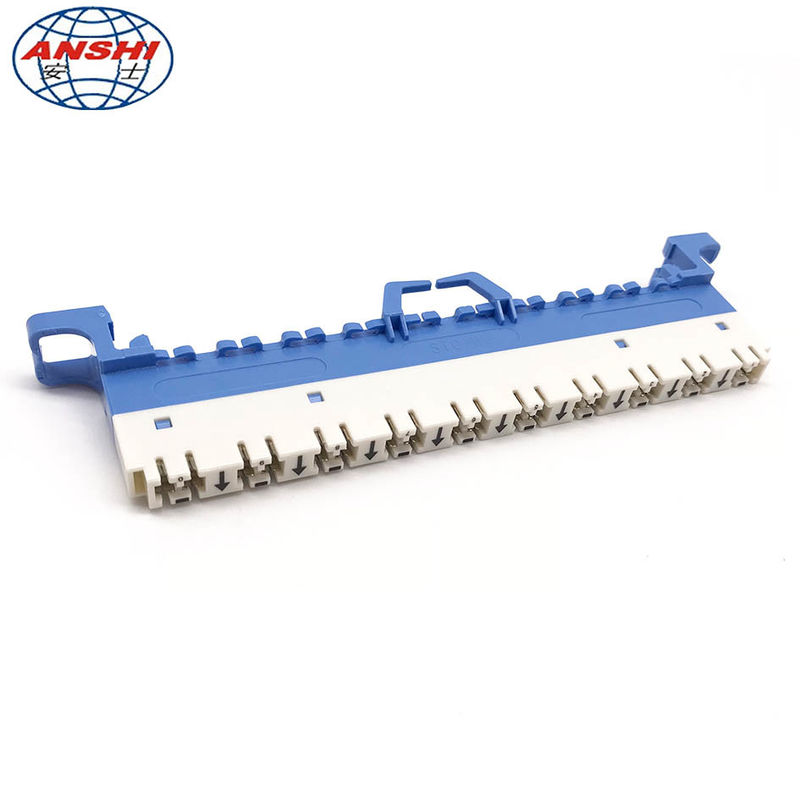

JPX658-BLK-E10VB Huawei Type 10 Pairs Cable exchange Side Terminal Block







JPX658-BLK2-E10V is a three-in-one cable distribution unit used on the JPX658 product series. It can be used as exchange-side terminal block, cable-side terminal block or broadband block.



Terminal Block JPX658-BLK2-E10V Features:



1) Capacity: 10-pair/piece.
2) Contact elements are normally close.
3) Its transmission performance meets the Category 5e standards.
4) Three-in-one function: When used independently, it can be used as exchange-side

Terminal block; When used with the protection unit with surge and over-voltage protection function, it can be used as cable-side terminal block; when used with the splitter that separates broadband signal from narrowband signal, it can be used as broadband block.

operating condition
Application class Class 3.3
Operating temperature -25℃ to +55℃
Storage temperature -40℃ to +70℃
Relative humidity 8% to 100%
Air pressure 70-106KPa
Material
Plastic parts PC
ID termination material Cu QSn6.5-0.1
Surface finishes Nickel-plate, local Gild (Au)



Mechanical capability
Solid wire diameter range 0.4-0.6mm (Insulation diameter ≤1.4mm)
Number of wire terminations ≥200
Number of plugging ≥75
Wire pull out force (axial) ≥50N @0.5mm
Wire pull out force (radial) ≥10N @0.5mm



JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block 0

JPX658-BLK-E10VB STO-10V Huawei Type 10 Pairs Cable exchange Side Terminal Block 1
