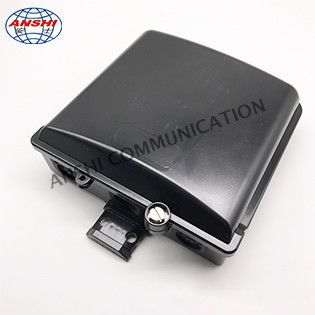

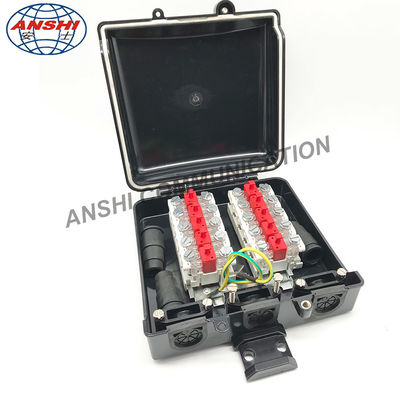

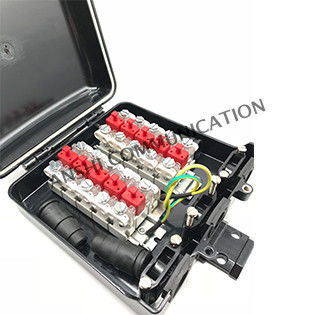

ANSHI 10 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail

ANSHI 10 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail

  • ANSHI 10 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail
  • ANSHI 10 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail
  • ANSHI 10 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail
ANSHI 10 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: SGS, ISO9001
Model Number: AS-STB-BOX-10-4
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/WEEK
Contact Now
All Products
Fiber Distribution Box (81)
FTTH Distribution Box (27)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (62)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (79)
Detailed Product Description
Capacity: 10 Pairs STB Module Protection Level: IP55
Protection: Over-voltage Environment: Indoor Or Outdoor
External Size: 248*210*70 Installation: Wall Or Pole
High Light:

vx module

,

stb module

ANSHI 10 Paris external Distribution Terminal STB Module Box with grounding wire Din rail



Main Features
Made of highly impact resistant ABS
Protection IP 56
Smallest distribution box designed for outdoors
Easy operation and wide range of wire
Technical Parameters
Working temperature: -20℃ ～ 40℃
Storage temperature: -25℃ ～55℃
Relative humidity: ≤85%(+30℃)
Atmospheric pressure: 70kPa ～106kPa
Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.
The labels are clear and complete.
Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ
Contact resistance between contacts: under normal ambient conditions, the contact resistance between contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ
Contact resistance between conductor and contact: under normal ambient conditions, the contact resistance between contacts ≤3 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤2 mΩ. And after terminating for 200 times, the increasing resistance ≤2 mΩ.
Dielectric strength: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts is able to withstand an AC voltage of of 1000V (virtual value) at 45Hz~60Hz sinowave for 1 minute, without spark over and flying arc
Gas tight performance: contact touches the conductor at both sides, and thus forming the gas tight area, while the area of gas tight occupies ≥50% of the touched area on each side.
Conductor diameter range: 0.32mm-0.6mm, while insulation ≤ 1.4mm
Pulling strength:≥25N while pulling from the vertical side of the contacts
Flame retardant performance: all plastic parts are flame retardant, reaching grade of UL FV0
Life circle: ≥200 times



  ANSHI 10 Paris External Distribution Terminal STB Module Box With Grounding Wire Din Rail 0











































Tag:

stb module,

telecom distribution box,

vx module
