High Density MDF Main Distribution Frame Horizontal Type With 100 Pairs Capacity

Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-XHW-P
Minimum Order Quantity 1
Price Negotiable
Supply Ability 1000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+Phosphor Bronze Printed Silver
Capacity 100 Pair Use MDF Frame
Application Horizontal Type Protect Voltage And Current Protection
Highlight

intermediate distribution frame

,

optical distribution frame

Leave a Message
Product Description

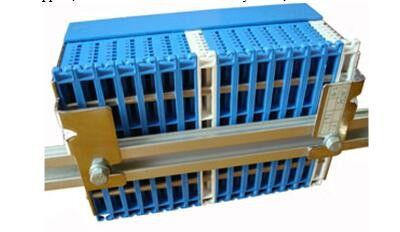

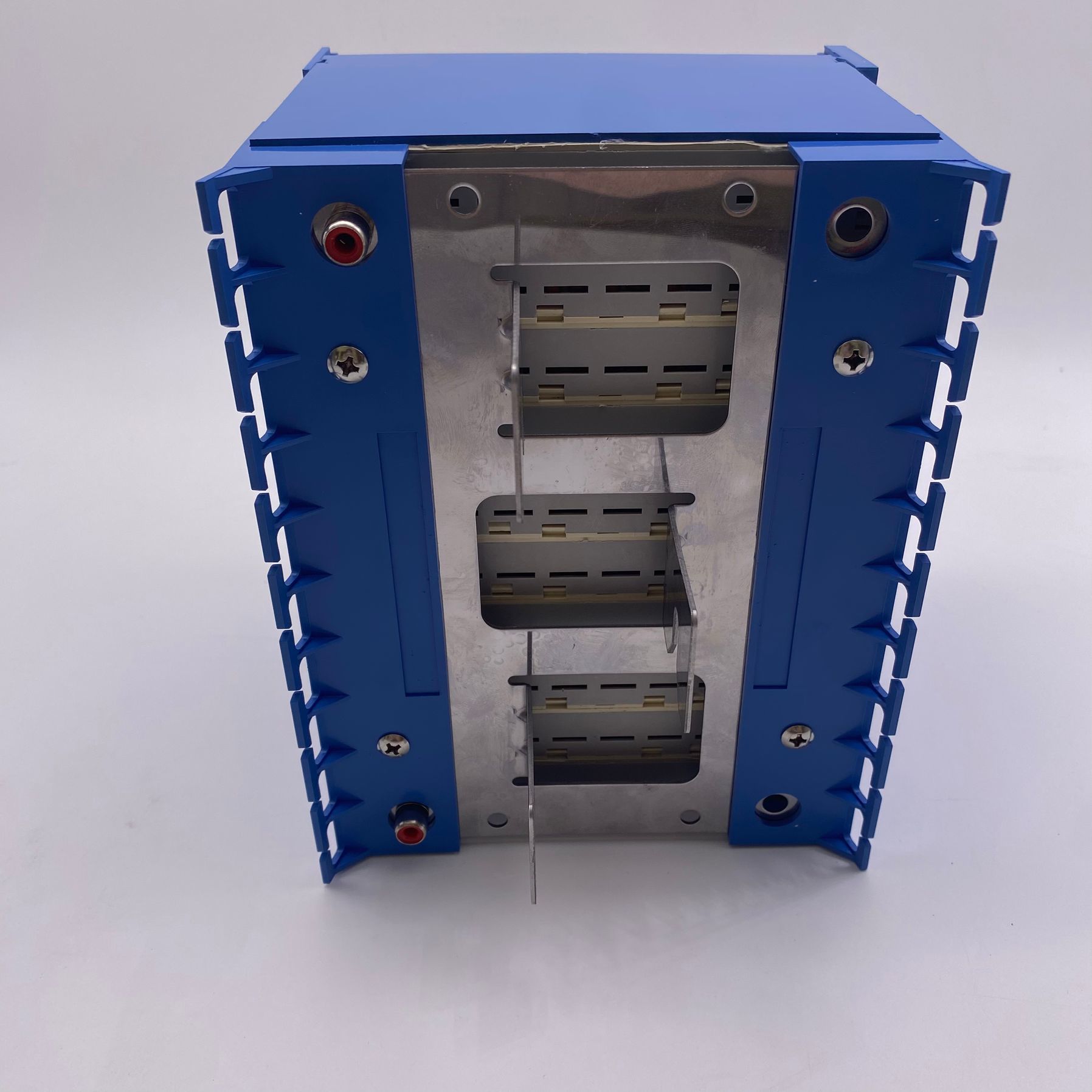

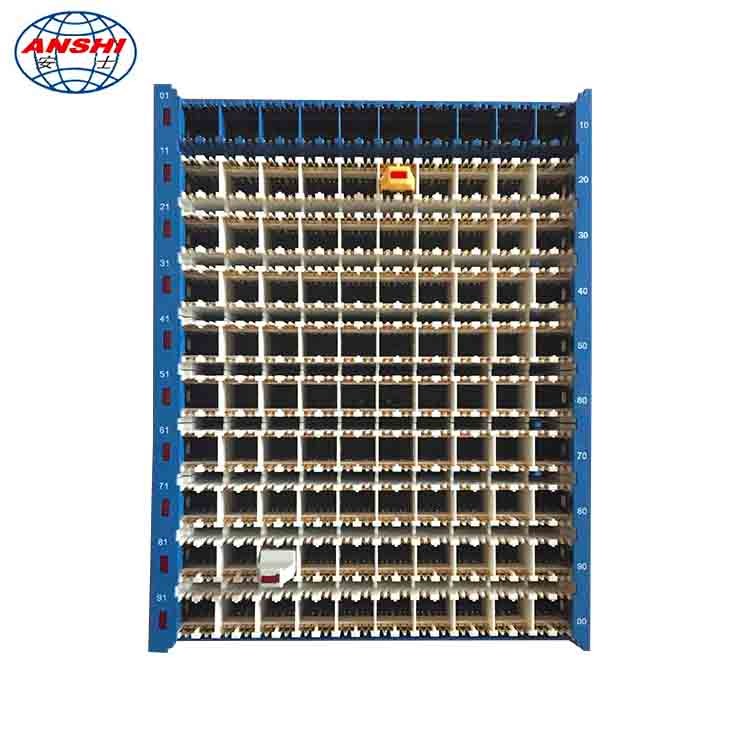

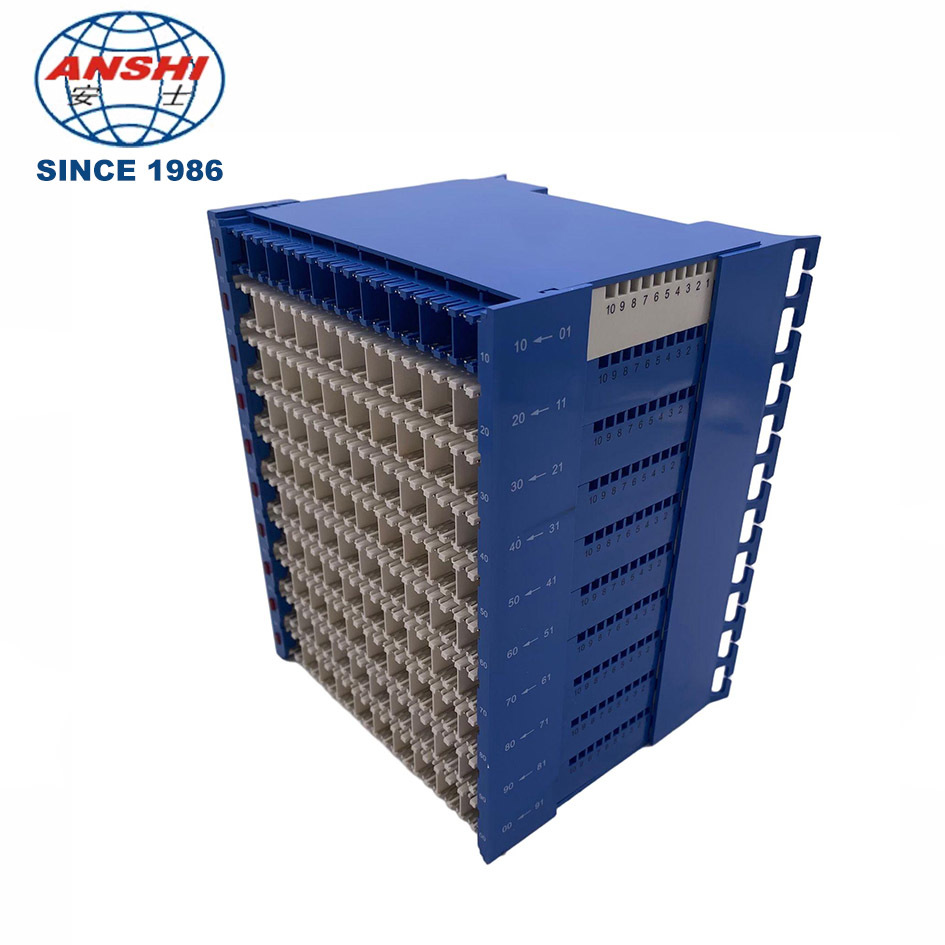

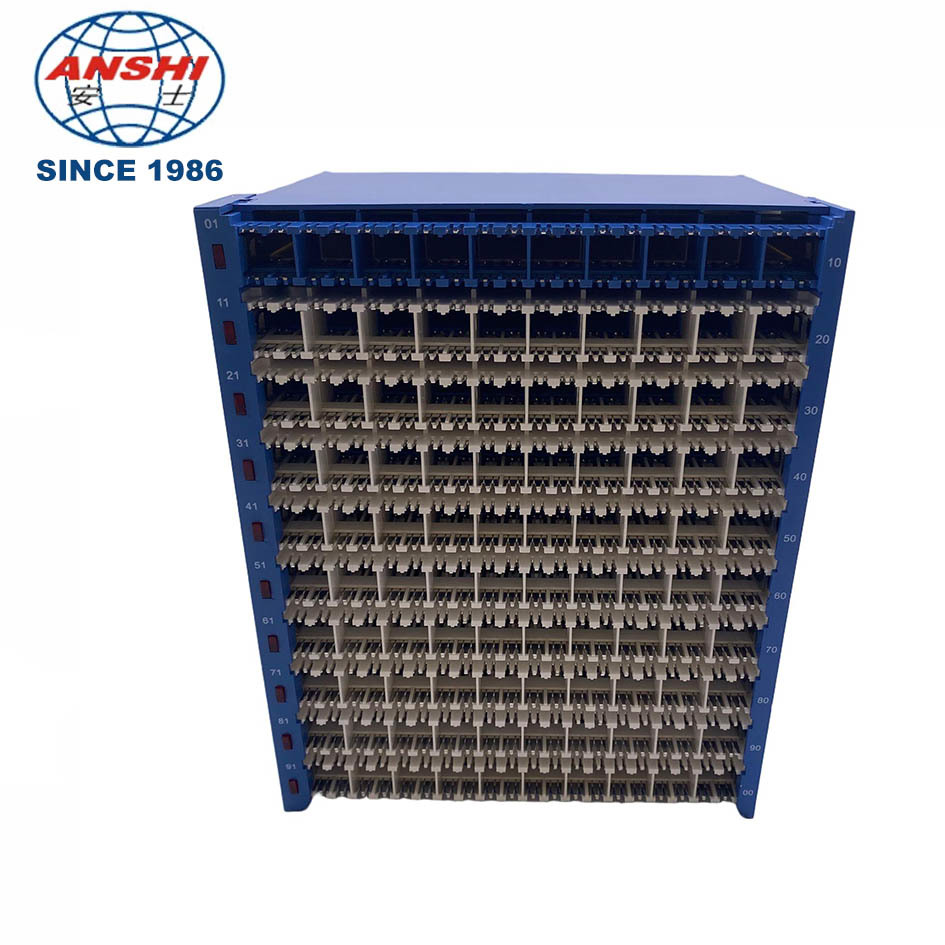

MDF Main Distribution Frame High Density 100 Pairs Protection Connection Terminal Block



Security connection block

  1. Size (H x W x D): 175mm x 140mm x 152mm (100 Pairs)
  2. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
  3. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;
  4. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard ;
  5. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections ;
  6. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;
  7. Intermediate resistance: no more than 3m ohm under standard examination condition
  8. Dielectric strength: according to industry standard
  9. Specification: 100 pairs
  10. Life: durability 200 cycles

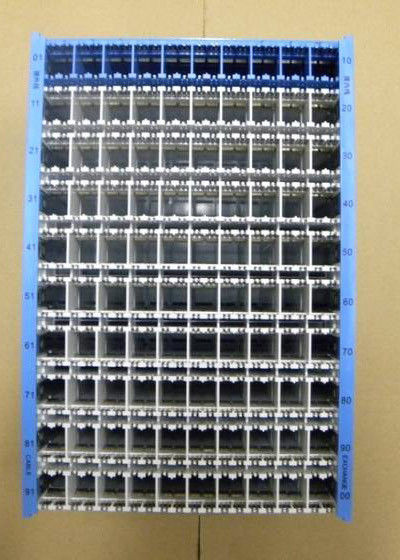

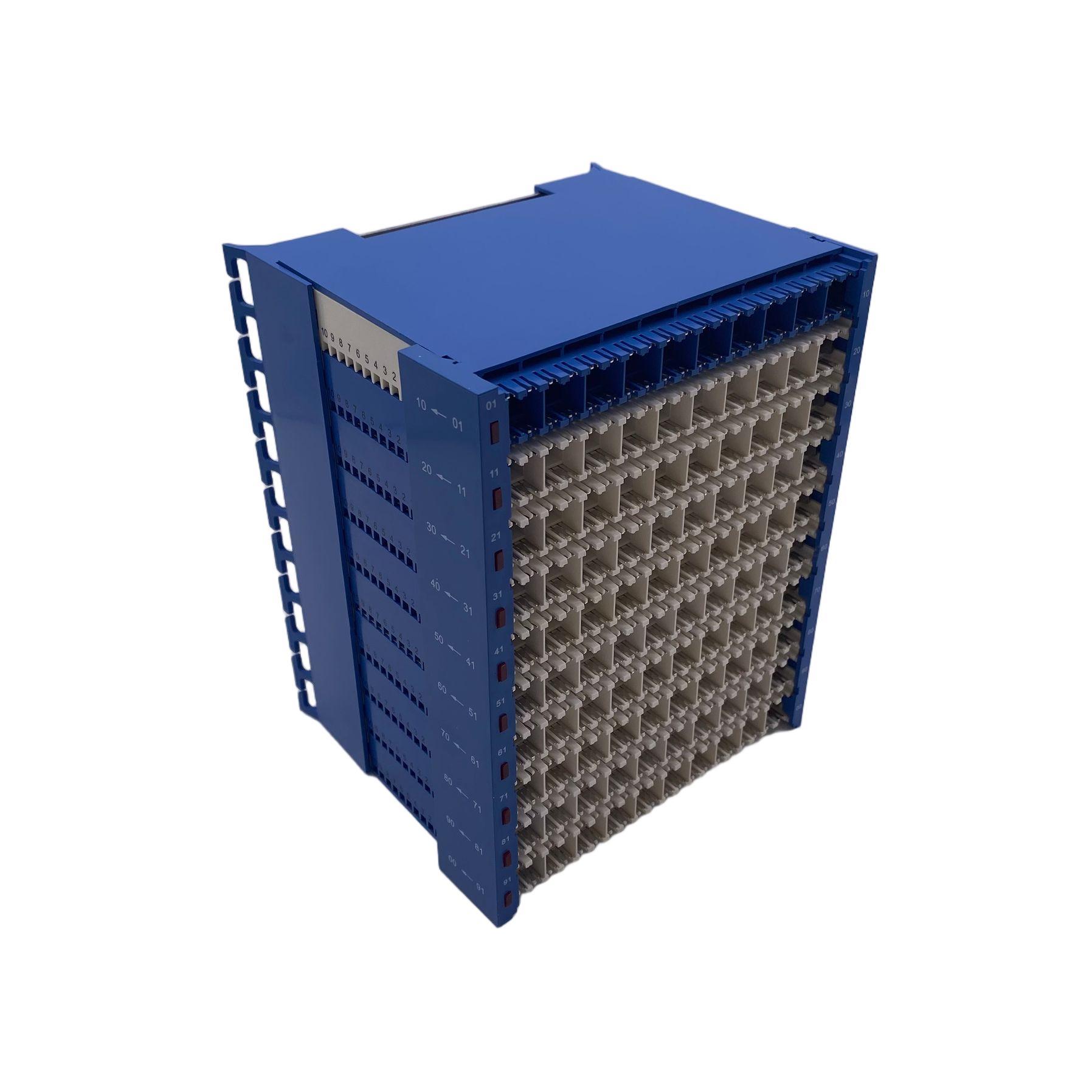

High Density MDF Main Distribution Frame Horizontal Type With 100 Pairs Capacity 0

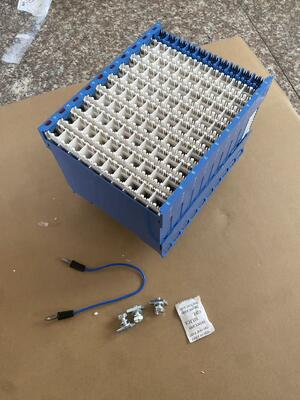

High Density MDF Main Distribution Frame Horizontal Type With 100 Pairs Capacity 1

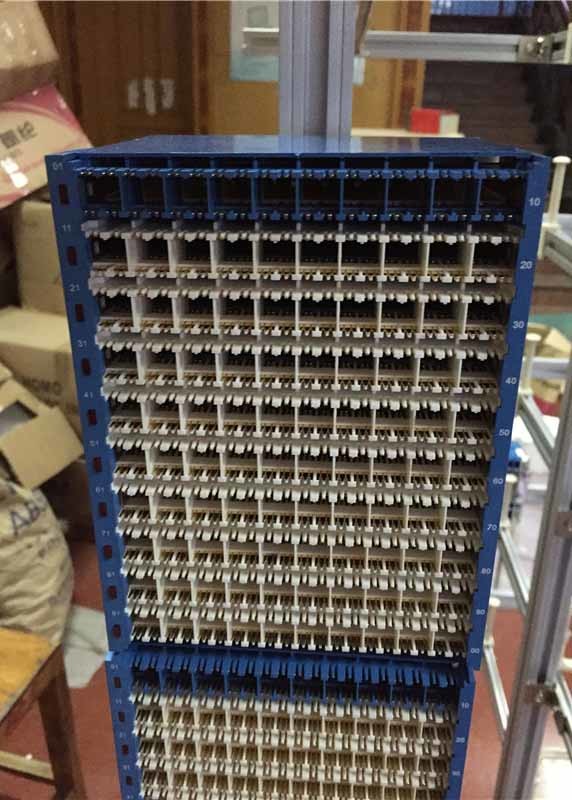

High Density MDF



Specification Dimension
1200 Pairs 2200*700*1360
3000 Pairs 2200*1350*1360
4000 Pairs 2700*1350*1360
5000 Pairs 3000*1350*1360
6000 Pairs 3500*1350*1360



High Density MDF Main Distribution Frame Horizontal Type With 100 Pairs Capacity 2
