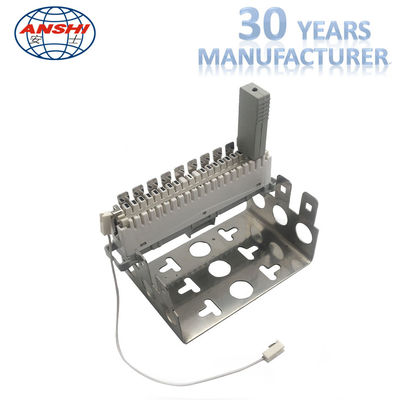

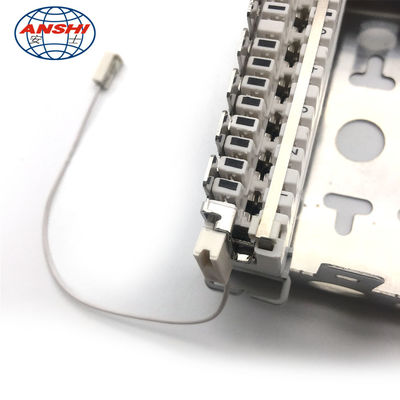

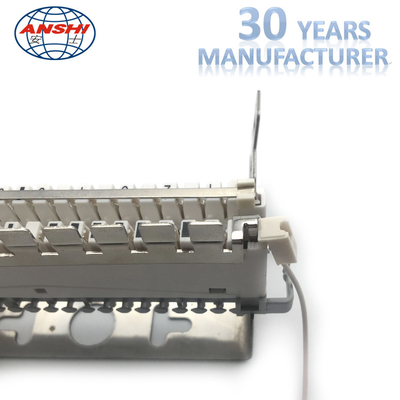

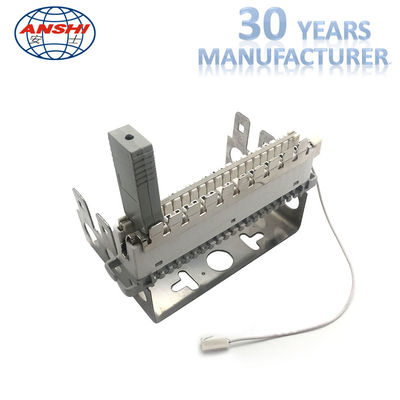

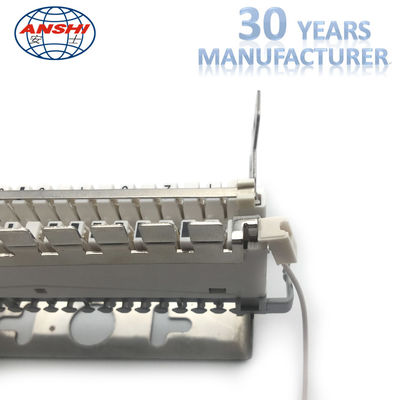

10 Pairs Krone Terminal Block Single Line Over Current Over Voltage Protector Unit

  • 10 Pairs Krone Terminal Block Single Line Over Current Over Voltage Protector Unit
  • 10 Pairs Krone Terminal Block Single Line Over Current Over Voltage Protector Unit
  • 10 Pairs Krone Terminal Block Single Line Over Current Over Voltage Protector Unit
  • 10 Pairs Krone Terminal Block Single Line Over Current Over Voltage Protector Unit
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, CNACL, SGS, DAS
Model Number XL-017B
Minimum Order Quantity Can Discuss
Price Negotiable
Packaging Details CARTON:53*24*24CM
Supply Ability 10000 pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1 Pairs Protector Unit Material ABS Or PBT
Contact Pin Silver-plated Phosphor Bronze Flame Retardance Can Reach UL 94V0
Application Telecommunication Benifit Over-voltage Over Current
Highlight

krone connection module

,

krone disconnection module
Leave a Message
Product Description

Single line Over Current Over Voltage Protector unit for 10 pairs Krone Terminal Block



Features:



1 Mainly consist of crust, gas or solid tube arrester, thermalresistance PTC, reed and base pin Perfectand reliable over-voltage and over-current protection with sound and lightalarm, and self resulming fail protection.

2 Size (mm): XL-017: L x W x H: 60.5 x 18 x 9.5 XL-017B: L x W x H: 50 x 9.5 x11.5

3Theperformance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0),combustibility achieved GB/T 5169.7-1985 standard

4DCpuncture voltage: 190-260V

5Pulsepuncture voltage: ≤800V(1KV/us voltage increasing rate)

6Insulationresistance: 1000MΩbetween any twoseparable modules

7Normaltemperature resistance: ≤22ΩR≤2Ωover-currentprotection

8Contactresistance: ≤3mΩ

9Contactresistance between reeds: ≤7mΩ

10Normaltemperature current: I=falling from 500mA to 150mA t20s

I=fallingfrom 1A to 500mA t1.3s

I=fallingfrom 2A to 500mA t0.5s

I=fallingfrom 3A to 500mA t0.2s

11Sactivetime: I=2.5A t15s(220V/AC), When discharge achieve 2.5Ar.m.s, the a line or b line should be5-15S internal earthing in the discharge loop

12resistanceto voltage: ≥1000V(AC)/1minwithout breakdown or arc

Over-Current and Over-Voltage Protector Units
