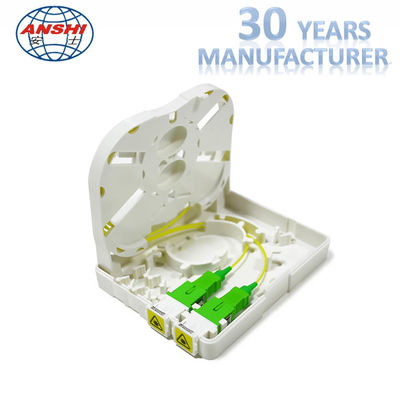

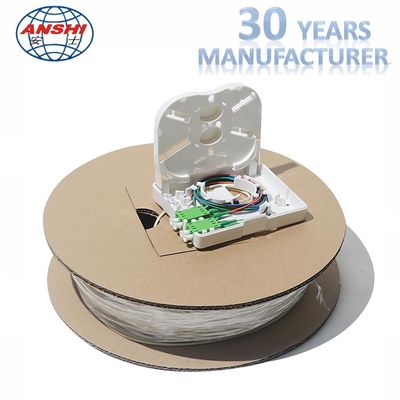

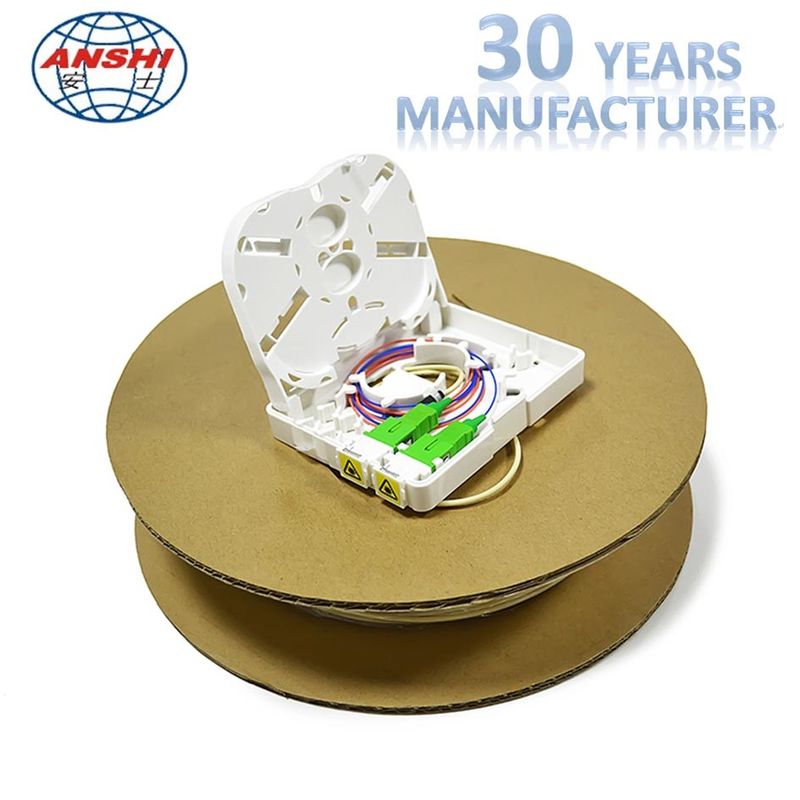

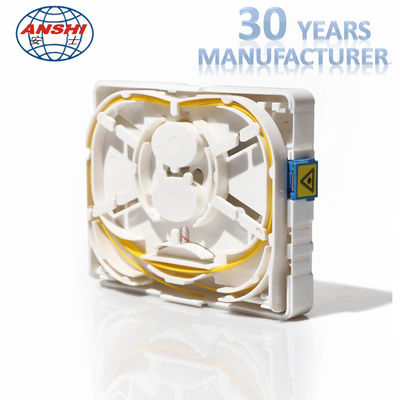

G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter

G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter
G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter

Large Image :  G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter

Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: SGS, DAS, ISO9001
Model Number: AS-ODF-MBH-F
Payment & Shipping Terms:
Minimum Order Quantity: can discuss
Price: Negotiable
Supply Ability: 5000 Pieces per Week
Contact Now
Detailed Product Description
Product: Fiber Optic Access Terminal Material: ABS Or ABS+PC
Dimension: (L) 86 X (W) 86 X (D) 10mm Certification: CE,ROHS,ISO 9001
No. Of Fiber: 2 Core Or 4 Core Cable Diameter(mm): 5~10
High Light:

ftth fiber optic termination box

,

G652D fiber optic termination box

,

G652D ftth termination box

Fiber Optic 2 ports FTTH mini fiber optic terminal box with SC LC Adapter plastic ftth fiber optic box



Features:

Item Technical data
Application 3.0*2.0mm drop cable or indoor cable
Fiber Diameter G652D or G657A
Tight Cladding diameter 250um & 900um
Mode of application Single mode & Multimode
Tensile strength >50N
End-use temperature -40~85 degree
Adapter SC Simplex or LC Duplex
Insertion Loss less than 0.2dB (1310nm & 1550nm)
Output 2

1.Dust-proof design with IP-66 protection level.

2.Integrated with splice cassette and cable management rods.

3.Manage fibers in a reasonable fiber radius condition.

4.Easy to maintain and extend the capacity.

5.Suitable for the fusion splice or machanical splice.

6.Embedded type surface,easy for installation and removal

7.2port cable entrance for patch cable.



Specification:

Scope of application:3.0*2.0mm drop cable or indoor cable

Fiber Cladding diameter:125um(G652&G657)

Fiber diameter:250um&900um

Fiber Type:SM&MM

Tensil Strength:More than 50N

Operation Temperature:-40-+85

Connecting Adapter:SC&LC

Insertion Loss:Less than 0.2dB

Return Loss:More than 50dB(UPC),More than 60dB(UPC)



G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter 0G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter 1G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter 2G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter 3
