1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block

  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
  • 1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-XHW-U
Document AS-MDF-XHW Catalog.pdf
Minimum Order Quantity 1
Price $0.9~$1.5

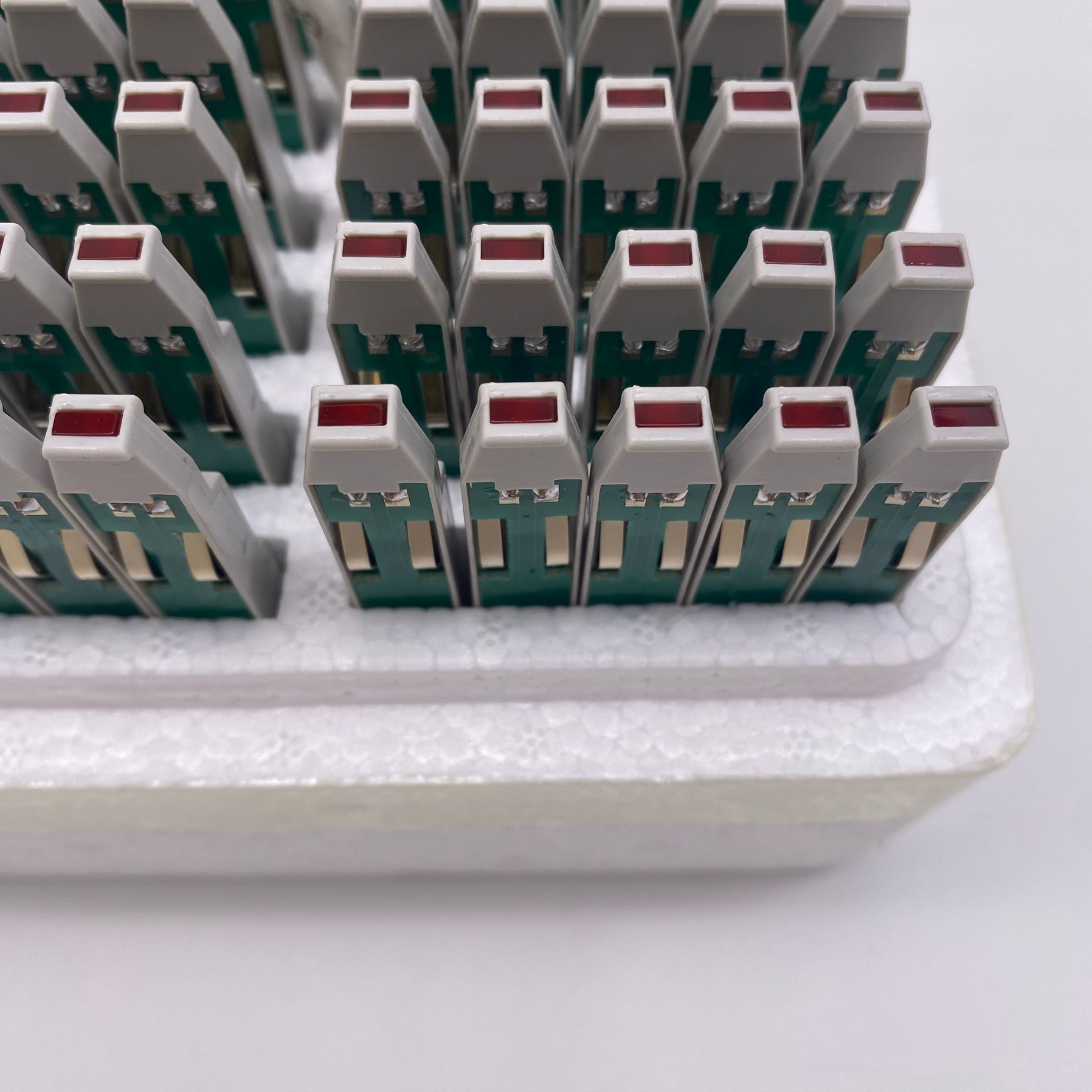

Packaging Details 100 pieces/package
Delivery Time 1~25 Work Day
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 10000pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Protector Unit For Main Distribution Frame Application Telecommunication.
Material PBT Protect Voltage And Current
Type Rack Mount Structure PCB
Highlight

PCB MDF Distribution Frame

,

PPT MDF Main Distribution Frame
Leave a Message
Product Description

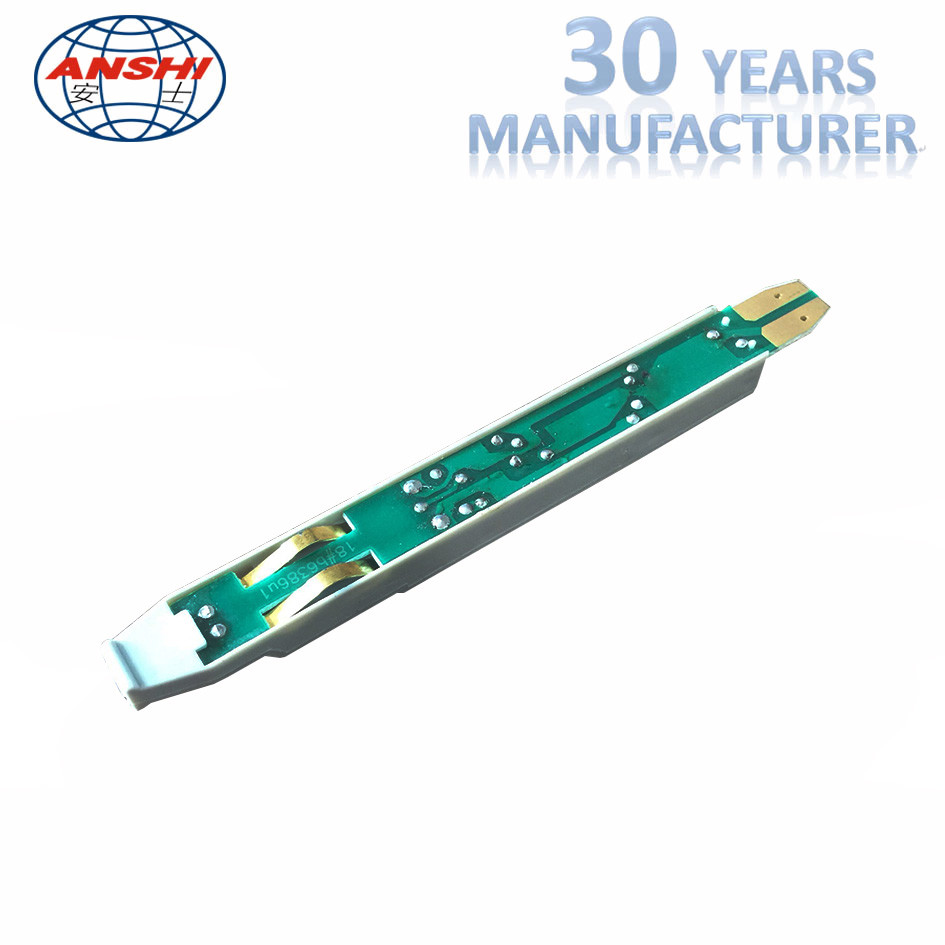

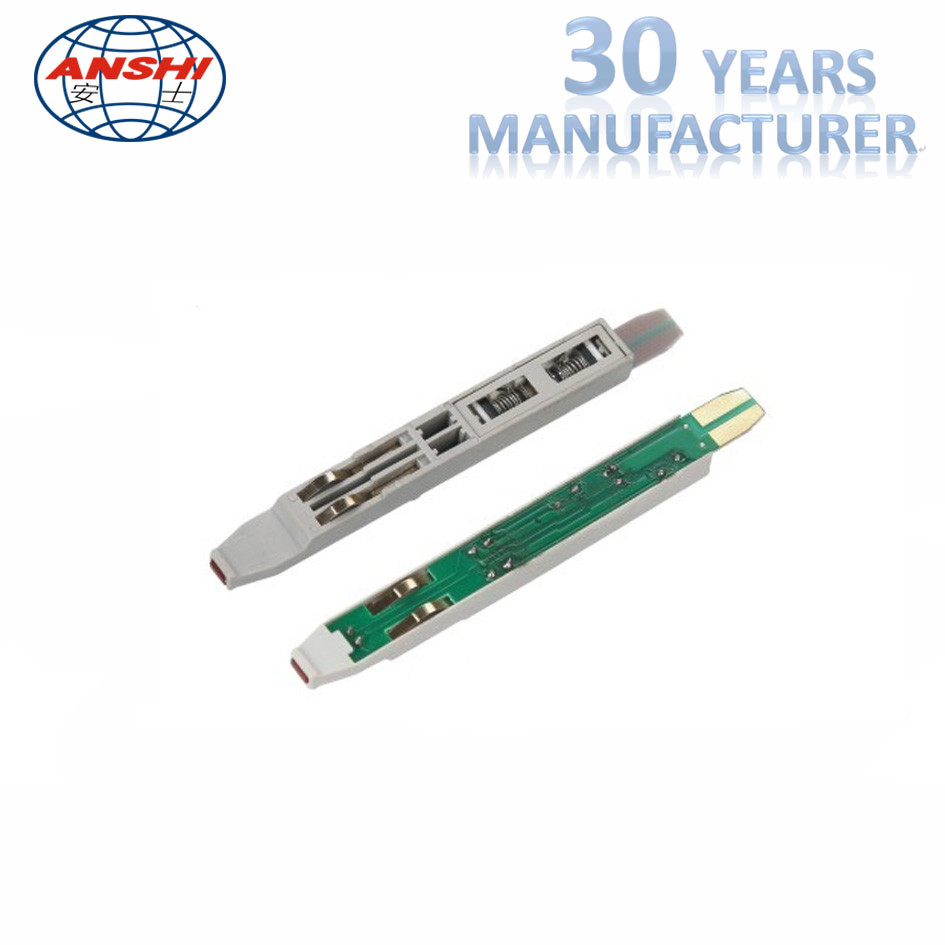

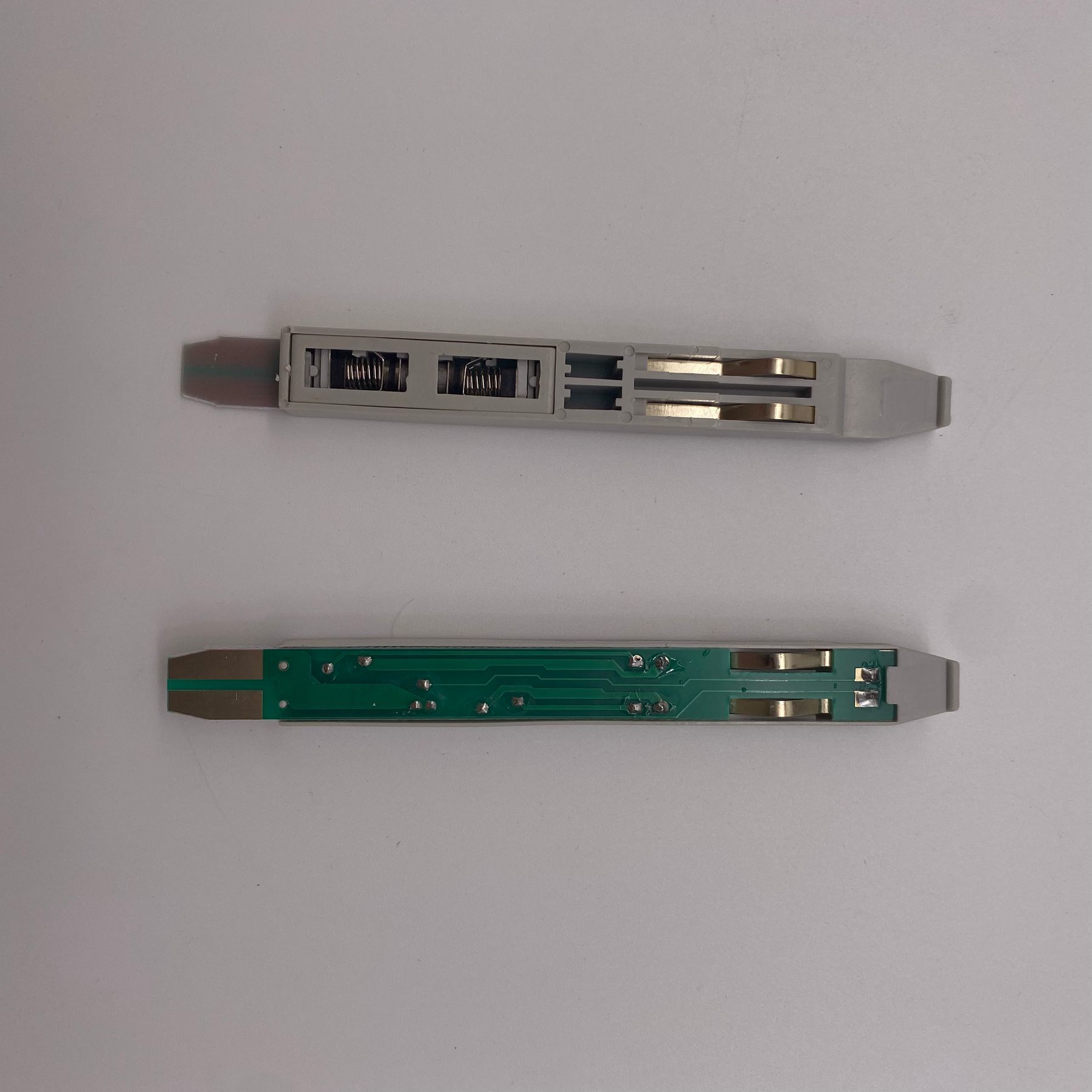

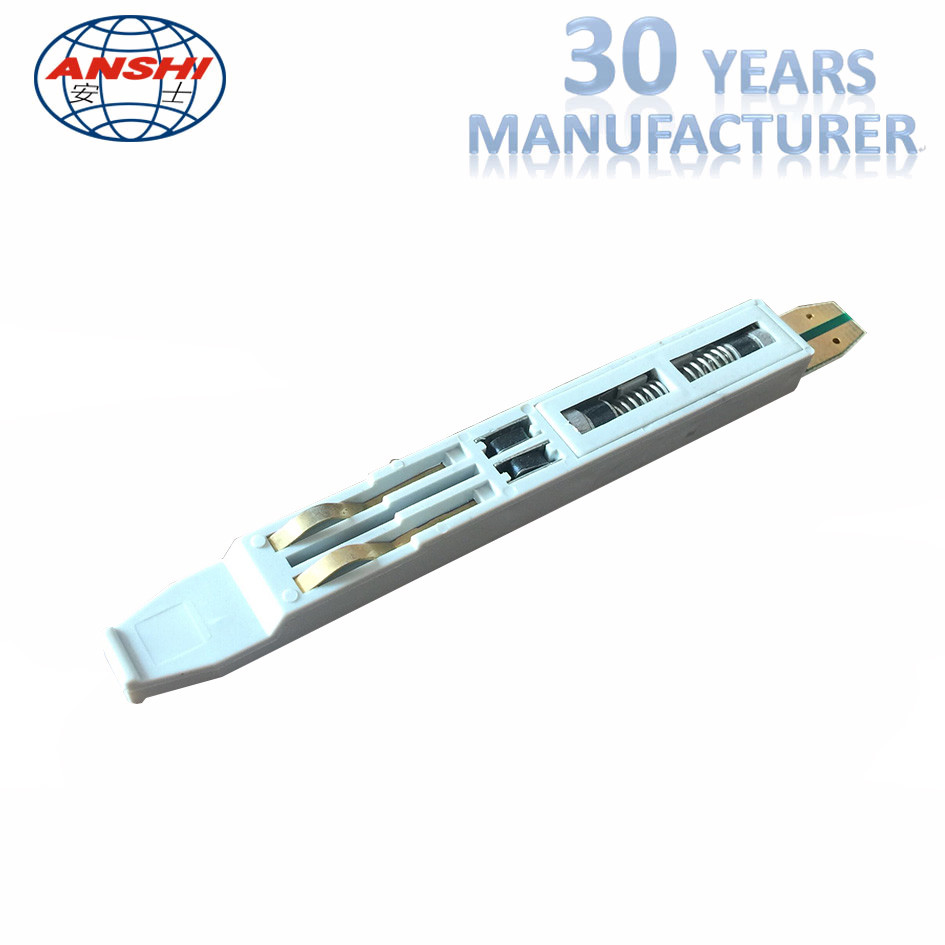

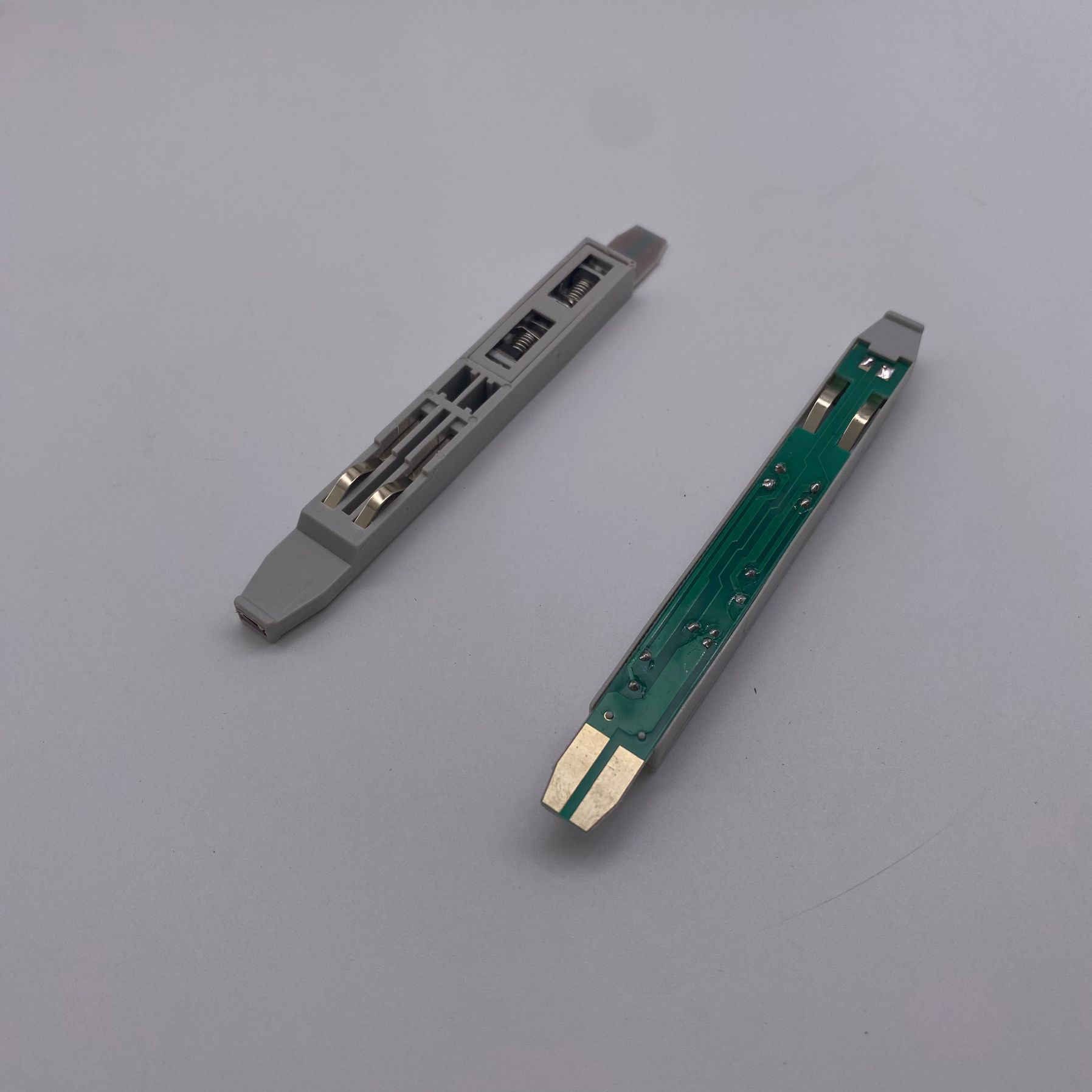

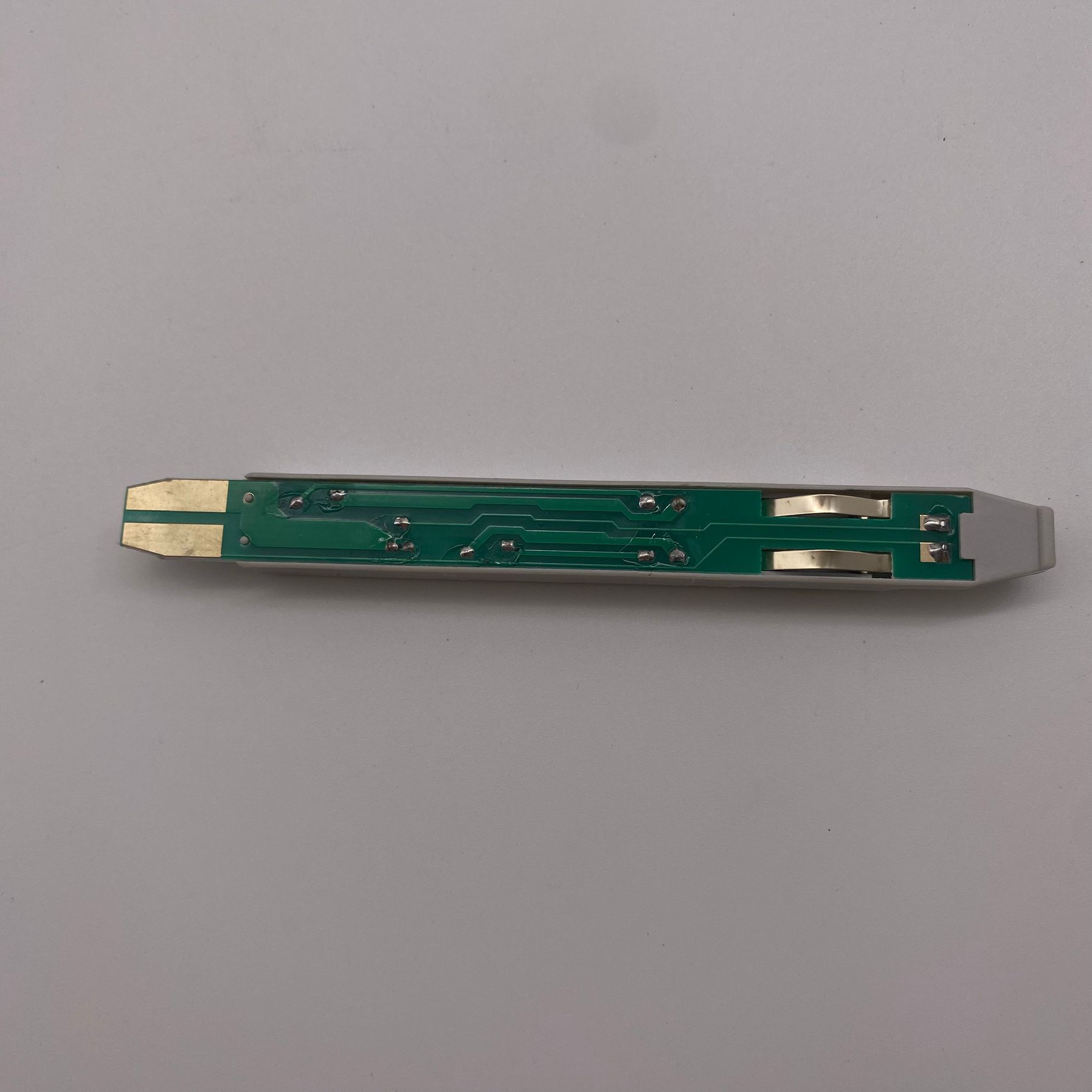

1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block
MDF Main Distribution Frame with Over-Voltage & Over-Current Protection

Used For AS-MDF-XHW-P: 100 Pairs Cable Side Terminal Block (Can completely replace Huawei's JPX202-FA8-72)

This 1-pair unit provides reliable line protection with sound and light alarm features, including self-resuming fail protection.

Key Features
  • Perfect and reliable over-voltage and over-current protection
  • Sound and light alarm system with self-resuming fail protection
  • High-performance anti-burn materials: PPT (UL94V-0) or anti-burn ABS (UL94V-0)
  • Combustibility meets GB/T 5169.7-1985 standard
Technical Specifications
Parameter Value
DC puncture voltage 190-260V
Pulse puncture voltage ≤800V (1KV/us voltage increasing rate)
Insulation resistance 1000MΩ (between any two separable modules)
Normal temperature resistance ≤22Ω (R≤2Ω for over-current protection)
Contact resistance ≤3mΩ
Contact resistance between reeds ≤7mΩ
Resistance to voltage ≥1000V(AC)/1min without breakdown or arc
Current Response Times
  • 500mA to 150mA: t<20s
  • 1A to 500mA: t<1.3s
  • 2A to 500mA: t<0.5s
  • 3A to 500mA: t<0.2s
  • 2.5A: t<15s (220V/AC)
Compatibility

Designed for use with AS-MDF-XHW-P 100 pair MDF terminal block.
