Single Pair LSA PLUS Module Over Current Over Voltage Protector Unit
| Place of Origin | China |
|---|---|
| Brand Name | ANSHI |
| Certification | ROSH, ISO9001 |
| Model Number | XL-017C |
| Document | XL-017C Protector Unit.pdf |
| Minimum Order Quantity | 100 PCS |
| Price | $0.6~$1.2 |
| Payment Terms | T/T |
| Supply Ability | 10000pcs per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Over-current Protector Unit | Material | PBT |
|---|---|---|---|
| Color | Grey Body / Can Cutomize | Pair | Single Pair |
| Application | LSA - PLUS MODULES | Benefit | Over Voltage Over Current Protector Unit |
| Highlight | krone connection module,krone disconnection module |
||
You can tick the products you need and communicate with us in the message board.
Product Description

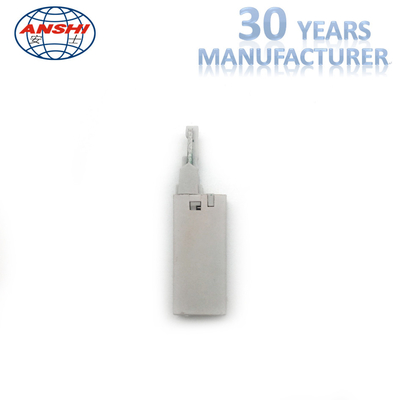

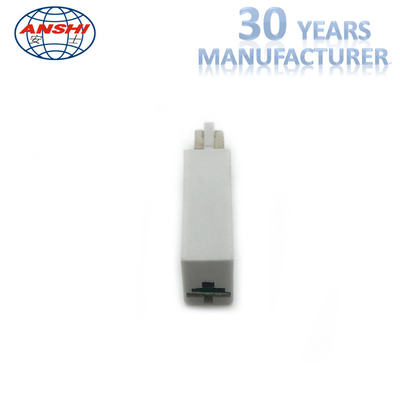

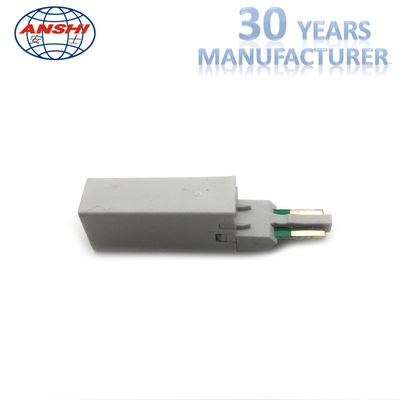

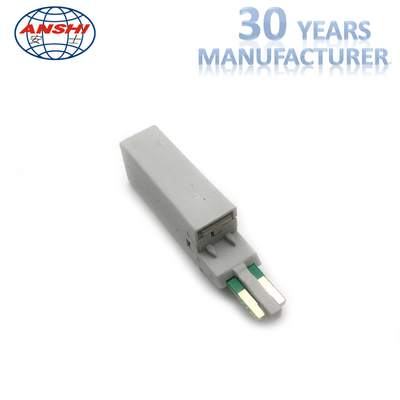

Single Pair LSA Plus Module Over Current Over Voltage Protector Unit ISO9001
Single Pair Over Current & Over Voltage Protector Unit used in LSA Module for telecommunication applications.
| Product Name | Protection Unit |
|---|---|
| Application | Telecommunication |
| Contact | Brass phosphor bronze contact |
| Material | Phosphor bronze PBT/ABS |
Technical Specifications
DC Spark Voltage: 230±20%
Impulse Spark Voltage: 800V
Insulation resistance: ≥1000MΩ
Capacitance: 3pF
Performance Characteristics
AC Discharge Current Capacity: 10A
Failsafe Operating Time: 5-15S
Serial Resistance: 7.5Ω-9.0Ω
Non Tripping Current: ≤ 110mA
