High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame

  • High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame
  • High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame
  • High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame
  • High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame
  • High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame
  • High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame
Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-XHW
Document AS-MDF-XHW Catalog.pdf
Minimum Order Quantity 1
Price Negotiable
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 1000pcs/week
Product Details
Material ABS+Phosphor Bronze Printed Silver
Capacity 100 Pair Use MDF Frame
Application Horizontal Type Protect Voltage And Current Protection
Highlight

intermediate distribution frame

,

optical distribution frame
Leave a Message
Product Description
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
MDF Main Distribution Frame High Density 100 Pairs Protection Connection Terminal Block designed for secure and reliable telecommunications distribution.
Product Specifications
  • Size (H × W × D): 175mm × 140mm × 152mm (100 Pairs)
  • Environment Conditions: -5°C to 40°C; Relative humidity <85% (+30°C); Atmospheric pressure: 70-106KPa
  • Pulling-out Force: Tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
  • Anti-burn Performance: PBT (UL94V-0) or anti-burn ABS (UL94V-0), combustibility meets GB/T 5169.7-1985 standard
  • Insulated Resistance: Under standard atmospheric pressure, insulated resistance no less than 1,000M ohm between disjunct connections
  • Intermediate Resistance: No more than 7m ohm between reed terminators under standard examination conditions
  • Contact Resistance: No more than 3m ohm under standard examination conditions
  • Dielectric Strength: Complies with industry standards
  • Specification: 100 pairs
  • Life Cycle: Durability 200 cycles

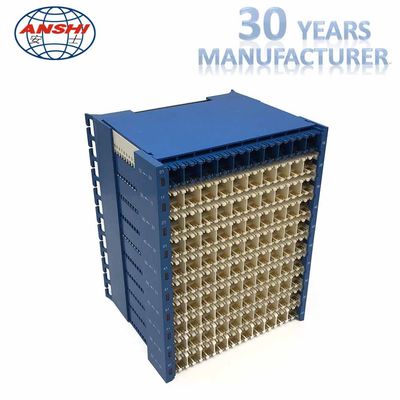

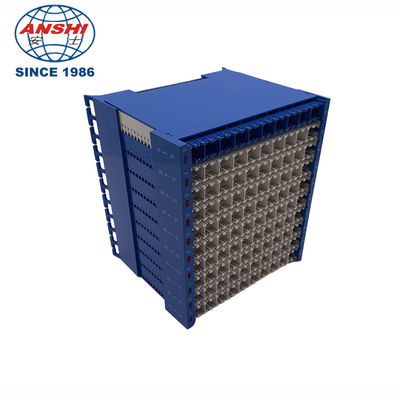

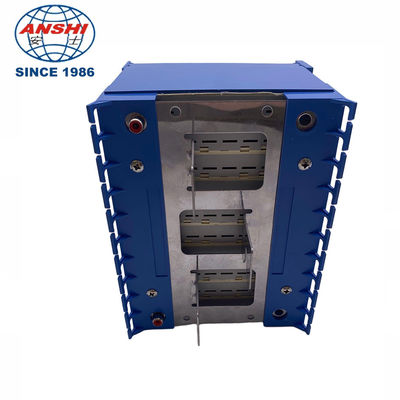

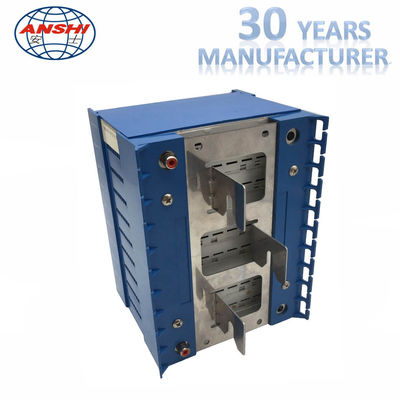

Product Images
High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame 0 High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame 1 High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame 2 High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame 3 High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame 4 High Density 100 Pairs Cable Side Terminal Block with Voltage and Current Protection for MDF Main Distribution Frame 5
High Density MDF Frame Specifications
Specification Dimension (mm)
1200 Pairs 2200 × 700 × 1360
3000 Pairs 2200 × 1350 × 1360
4000 Pairs 2700 × 1350 × 1360
5000 Pairs 3000 × 1350 × 1360
6000 Pairs 3500 × 1350 × 1360
