10 Paris Outdoor Telephone Distribution Terminal Block With Non - Protective STB Module for large telephone wire

  • 10 Paris Outdoor Telephone Distribution Terminal Block With Non - Protective STB Module for large telephone wire
  • 10 Paris Outdoor Telephone Distribution Terminal Block With Non - Protective STB Module for large telephone wire
  • 10 Paris Outdoor Telephone Distribution Terminal Block With Non - Protective STB Module for large telephone wire
  • 10 Paris Outdoor Telephone Distribution Terminal Block With Non - Protective STB Module for large telephone wire
  • 10 Paris Outdoor Telephone Distribution Terminal Block With Non - Protective STB Module for large telephone wire
Place of Origin China
Brand Name ANSHI
Certification SGS, ISO9001
Model Number AS-STB-BOX-10-4
Minimum Order Quantity 10
Price Negotiable
Payment Terms D/P,D/A,L/C,T/T,Western Union,MoneyGram
Supply Ability 10000PCS/WEEK

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Terminal Block Protection Level IP55
Protection Non-Protective STB Module Environment Indoor Or Outdoor
External Size 248*210*70mm Installation Wall Or Pole
Capacity 5 Pairs Or 10 Pairs
Highlight

telecom distribution box

,

stb module
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

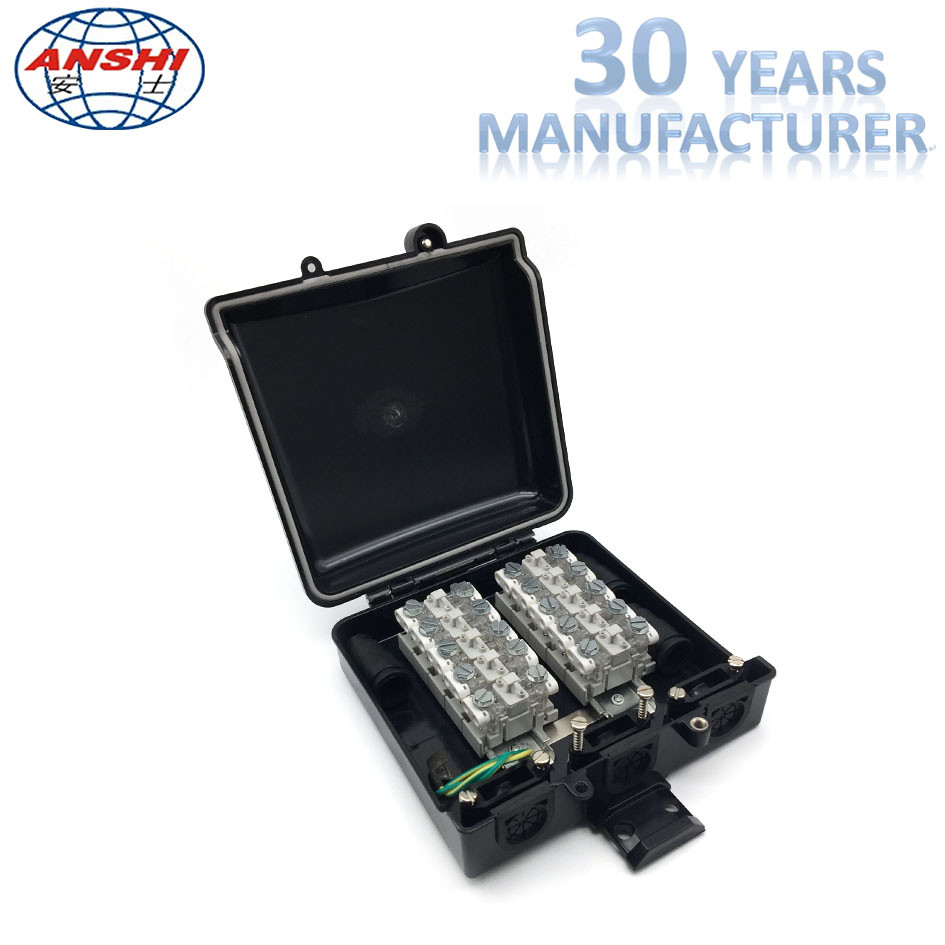

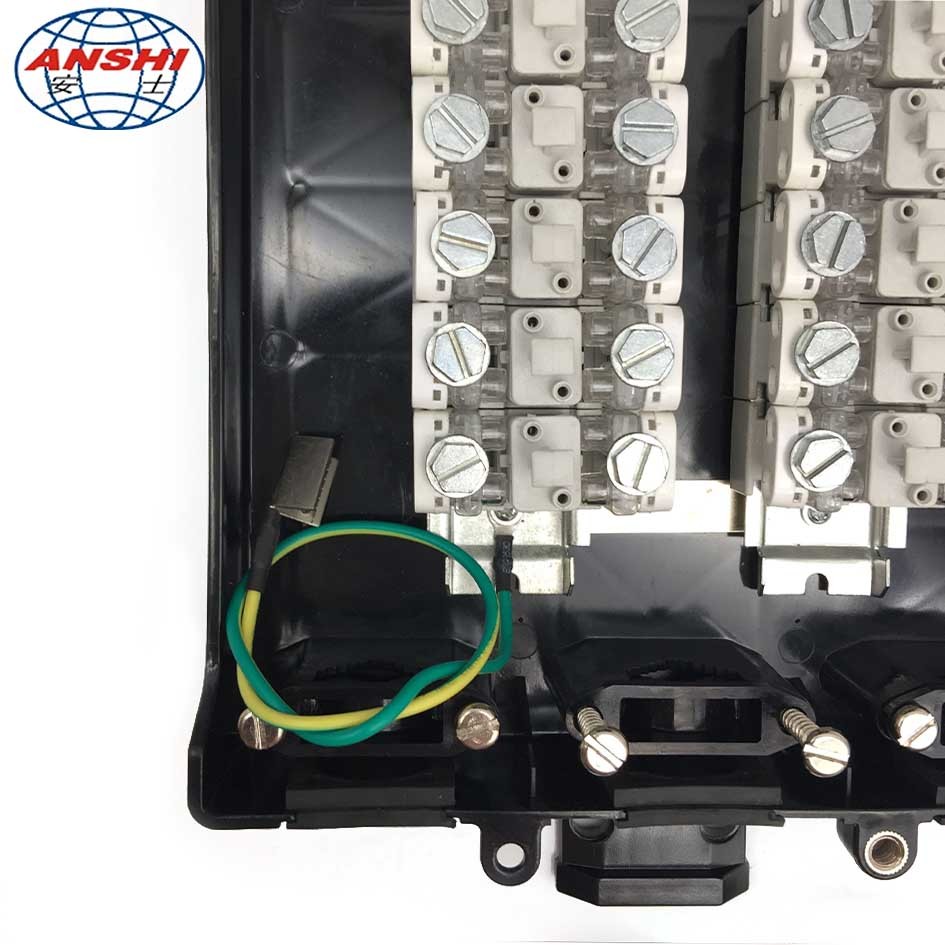

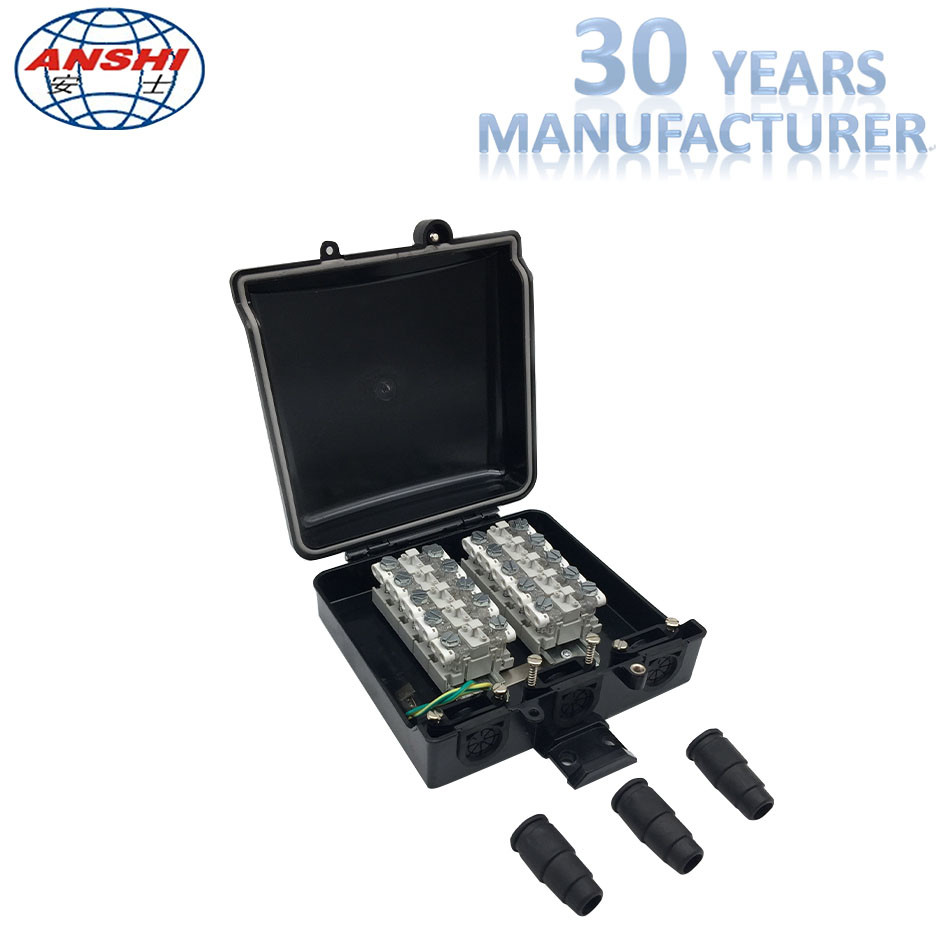

ANSHI 10 Paris Outdoor Distribution Terminal Box With Non-Protective STB Module
Product Overview

This 10-pair outdoor telephone distribution terminal block features a non-protective STB module, designed for large telephone wire applications. The durable construction ensures reliable performance in various environmental conditions.

Key Features
  • Constructed from impact-resistant, chemical-resistant plastic
  • Includes standard DIN rail for mounting terminal blocks
  • Easy access for terminations with simple hand tools
  • Minimum twenty-year life cycle for long-term reliability
  • Lid snaps in open position for convenient installation
  • Lockable lid to prevent unauthorized access

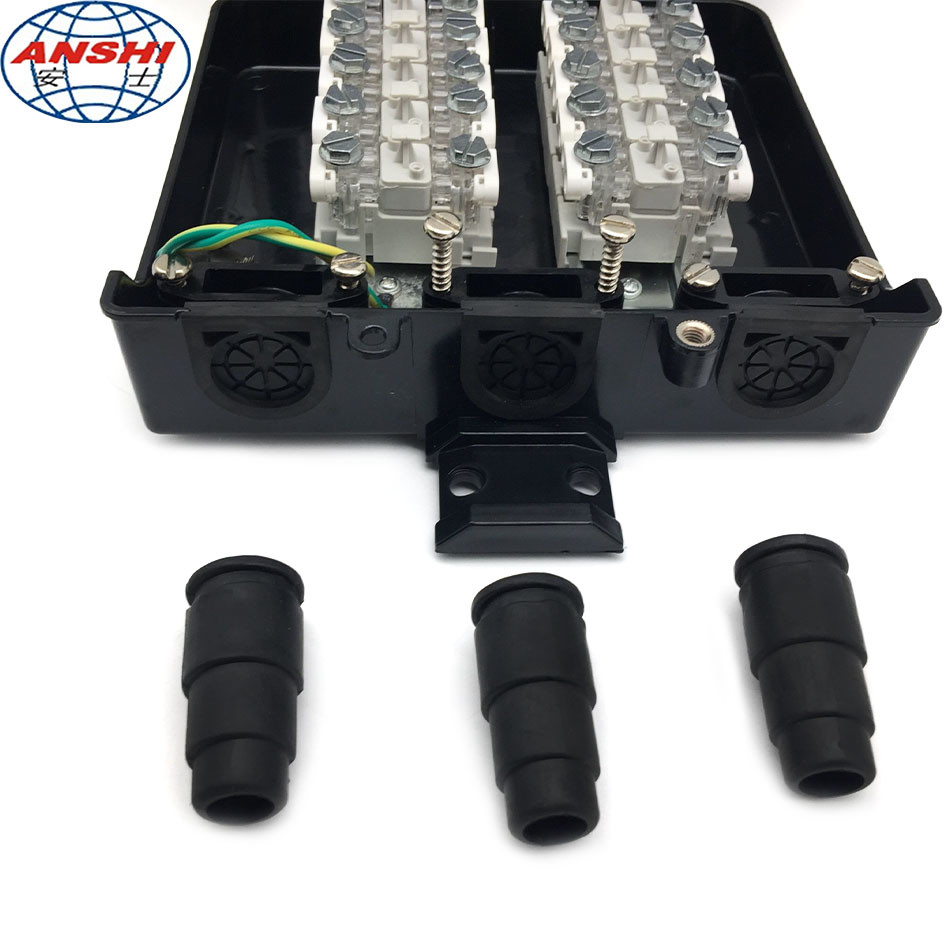

  • Rubber grommets at all wire entry/exit ports
  • Environmentally sealed internal wire contacts
  • No wire stripping required for installation
  • Includes all necessary grounding hardware
  • Versatile mounting options for walls, wood, metal or concrete poles
Technical Specifications
Drop Wire Connector
Gauge range 0.4-1.05mm diameter
Insulation diameter 5mm maximum diameter
Current conducting capacity 20 A, 10 A per conductor for 10 minutes minimum without module deformation
Insulation Resistance
Dry atmosphere >1012 Ω
Salt fog (ASTM B117) >1010 Ω
Immersion in water (15 days in 3% NaCI solution) >1010 Ω
Mechanical Characteristics
Base material Polycarbonate RAL 7035
Cover material Polycarbonate RAL 7035
Drop wire housing screw Special passivated direct lacquered Zamac alloy
Drop wire housing body Transparent polycarbonate
Body material Flame retardant (UL94) fiber-glass reinforced polycarbonate
Insertion contacts Tinned phosphor bronze
Ground contacts Cu-Zn-Ni-Ag alloy
Continuity contacts Tinned hard brass
Grommets EPDM
Environmental Specifications
Storage temperature range -30°C to 80°C
Operating temperature range -20°C to 70°C
10 Paris Outdoor Telephone Distribution Terminal Block With Non - Protective STB Module for large telephone wire 0
20 Pairs STB Distribution Box
1 Pair STB Module (With Overvoltage Protection)
