100% Pass Fluck Test RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack

100% Pass Fluck Test RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack

  • 100% Pass Fluck Test RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack
  • 100% Pass Fluck Test RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack
  • 100% Pass Fluck Test RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack
  • 100% Pass Fluck Test RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack
100% Pass Fluck Test RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: SGS, ISO9001, DAS
Model Number: AS-KEY-D8E
Payment & Shipping Terms:
Minimum Order Quantity: Can discuss
Price: Negotiable
Supply Ability: 15000 Pieces per Week
Contact Now
Detailed Product Description
Pin: Phosphor Bronze Plating: Gold
Jack Type: RJ45 Color: Can Be Customized,
Category: CAT6 Material: PC+Phosphor Bronze
High Light:

toolless keystone jack

,

rj45 shielded jack

100% PASS FLUKE TEST RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack



Feature:

1.Various information modules provide multiple choices for wiring system.
2.The design of modules exceed the standard requirement.
3.Units with colors are easy to identity and easy to manage network.
4.Be able to meet the allocation requirement of various work.



Meets FCC parts 68
ANS, TIA, EIA-568B
ISO, IEC 11801
ETL verified EIA/TIA T568B: Cat. 6 channel link
Transmission performance
Physicals:
IDC connector accept 22-26 AWG solid wire
Jack wiring: 50-micron inch gold plate over 100-micron inch nickel
Housing: high impact flame retardant plastic UL94V-0 rated
IDC connector suitable for 110 punch down and Krone tool
Mechanical:
Plug insertion life: 750cycle/minute
Plug retention force: 30lbs/minute
Electrical:
Current rating: 1.5A
Insulation resistance: 500M Ohms minimum
Contact resistance: 20 Milli-ohms maximum
DC resistance: 0.1 Ohms maximum
Data transmission rates up to 250Mbps

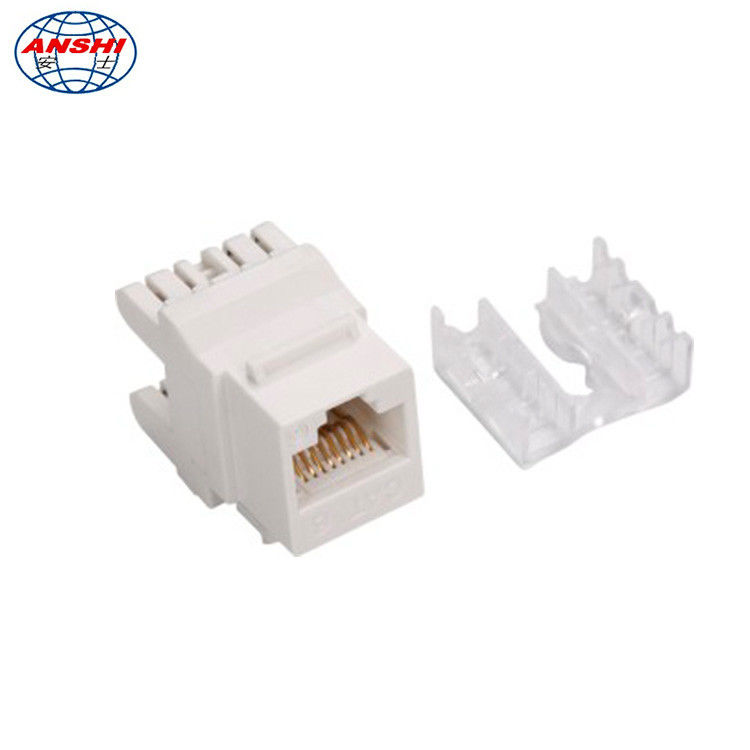

RJ45 CAT6 Keystone Jack Module (UTP)
