FOSC Fiber Optic Joint Closure , Fiber Enclosure Box With 3 Inlets / Outlets
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fiber Optic Joint Box | Max Capacity | 96 Core |
|---|---|---|---|
| Material | PP | Protection Level | IP68 |
| Cable Entry Ports | 3 In & 3 Out | Cable Diameter (mm) | Φ10-Φ25 Mm |
| Highlight | Fiber Optic Joint Box,Fiber Optic Joint Closure |
||
Product Description

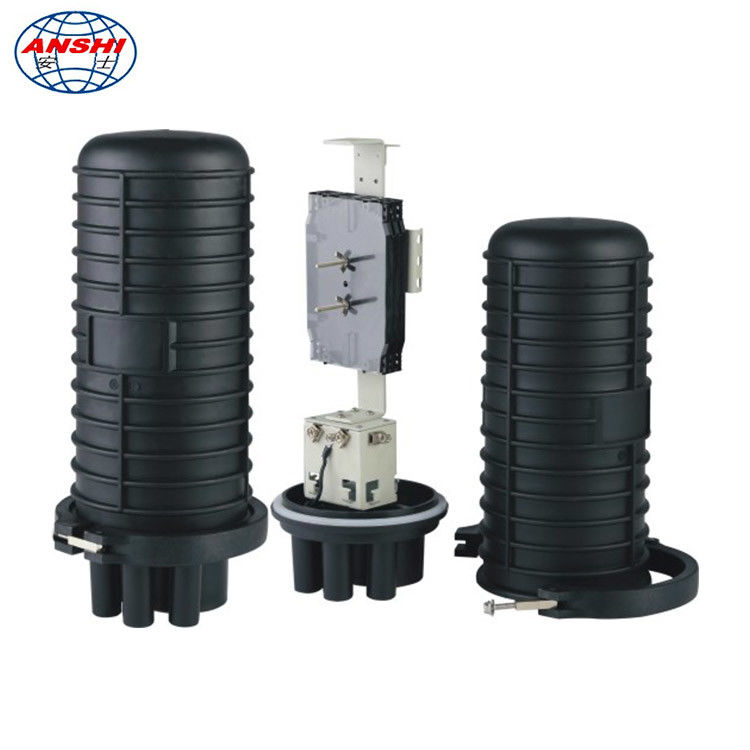

FOSC Fiber Optic Joint Closure , Fiber Enclosure Box With 3 Inlets / Outlets
AS-GPJ-A/B is made of high density reinforced material, can be use for aerial, undersground, man-hole, duct and pole; it's good at mechanical properties, complete grounding system, convenient to operate and to re-open; fiber optic splice tray uses overlay type, flexible configuration, apply to common fiber optic cable and ribbon cable.

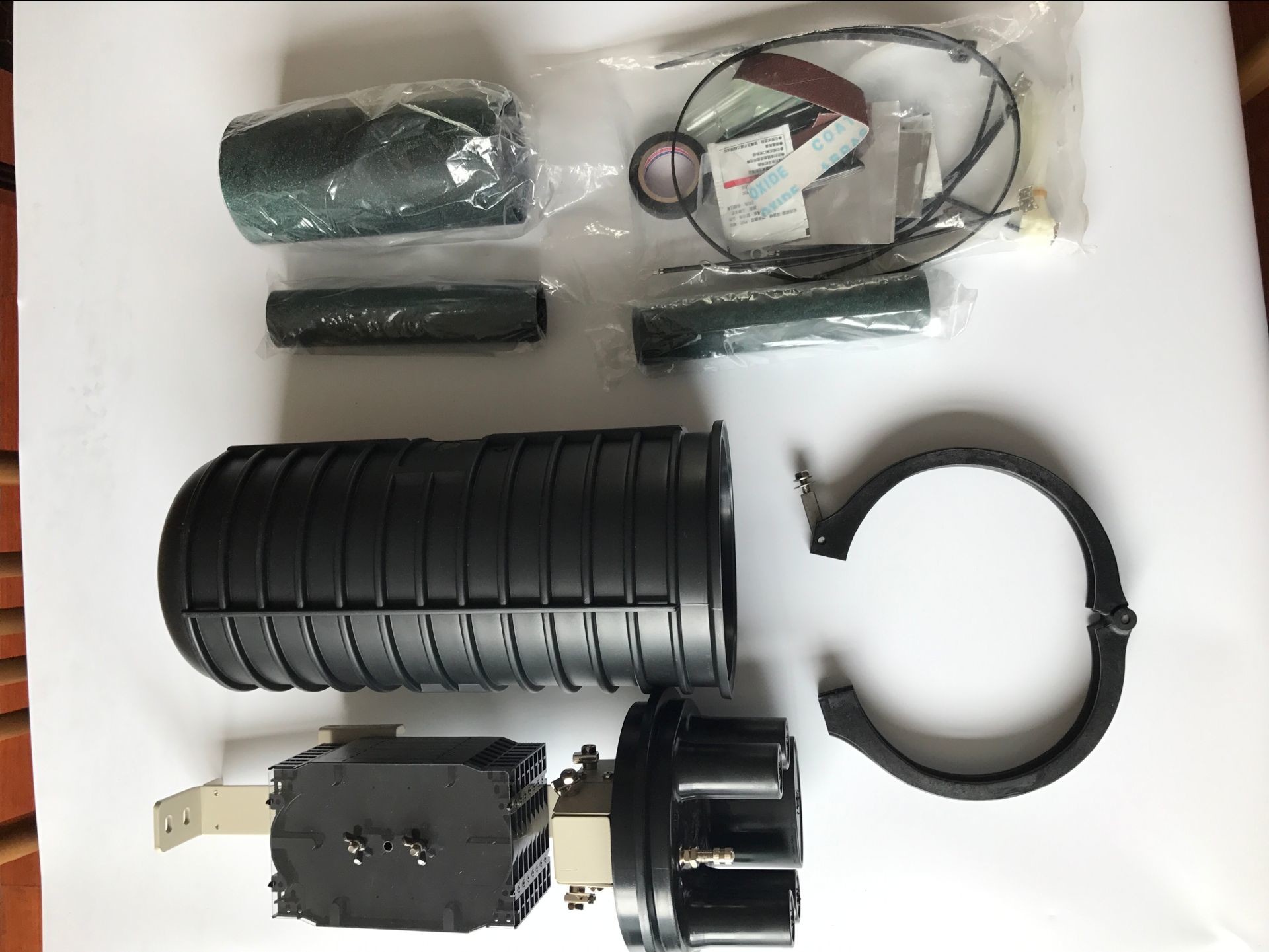

The inside uses metal structure, which is greatly imrpoving the strength. External is made of PP, which is lightweight. It uses technology: cold shrink or heat shrink, with a good sealing performance; reach IP68. We can provide full sets, such as grounding wire, cold shrink tube (or heat shrink tube), split clips and son accessories.
Main Technical Indexes:
1. Airproof performance: Airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.
2. Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation
| Item | AS-GPJ-A |
| Dimension (L x W mm) | 450x210mm |
| Cable Diameter (mm) | Φ10-Φ25 |
| Cables Entry & Exit | 5 pieces, max. 6 pieces |
| Max Capacity of Cores | 96 cores (F) |
| waterproof and dustproof | IP68 |
