10 pair back mount LSA earth Krone connection module with earth grounding cable
| Place of Origin | ZHEJIANG, CHINA |
|---|---|
| Brand Name | ANSHI |
| Certification | ISO9001, CNACL, SGS, DAS |
| Model Number | XL-011 |
| Document | XL-011D 10 Pairs Earthing M...le.pdf |
| Minimum Order Quantity | 100 pcs |
| Price | Negotiable |
| Packaging Details | CARTON:53*24*24CM |
| Supply Ability | 10000 pcs per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | ABS Or PBT | Color | Red And Grey |
|---|---|---|---|
| Type | Disconnection | Contact | Phosphor Bronze With Silver Coating |
| Application | Telecommunication | Protection Level | UL-94VO |
| Highlight | lsa disconnection module,krone disconnection module |
||
You can tick the products you need and communicate with us in the message board.
Product Description

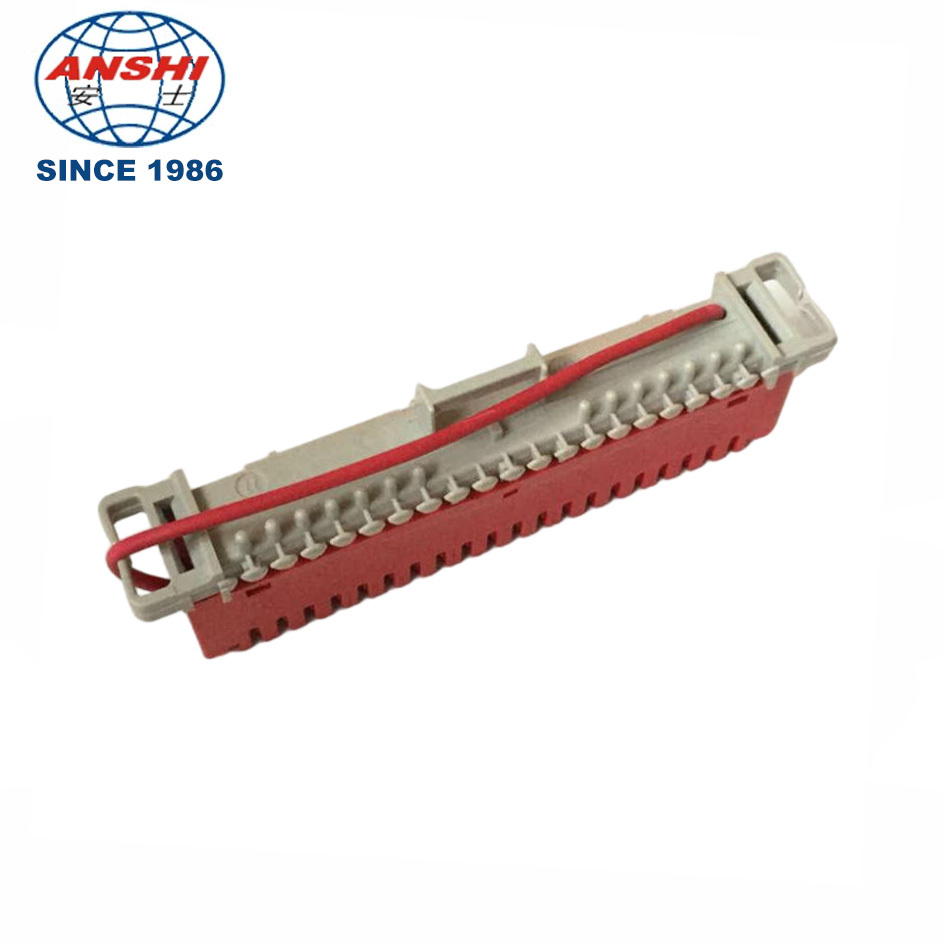

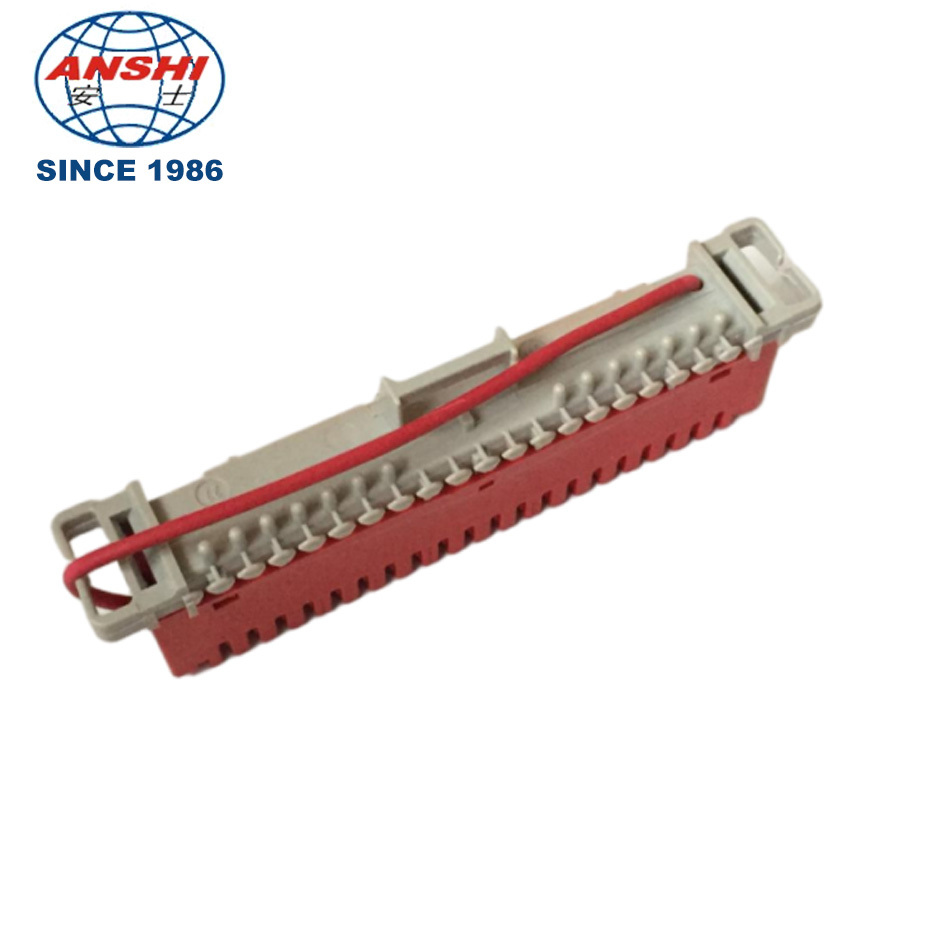

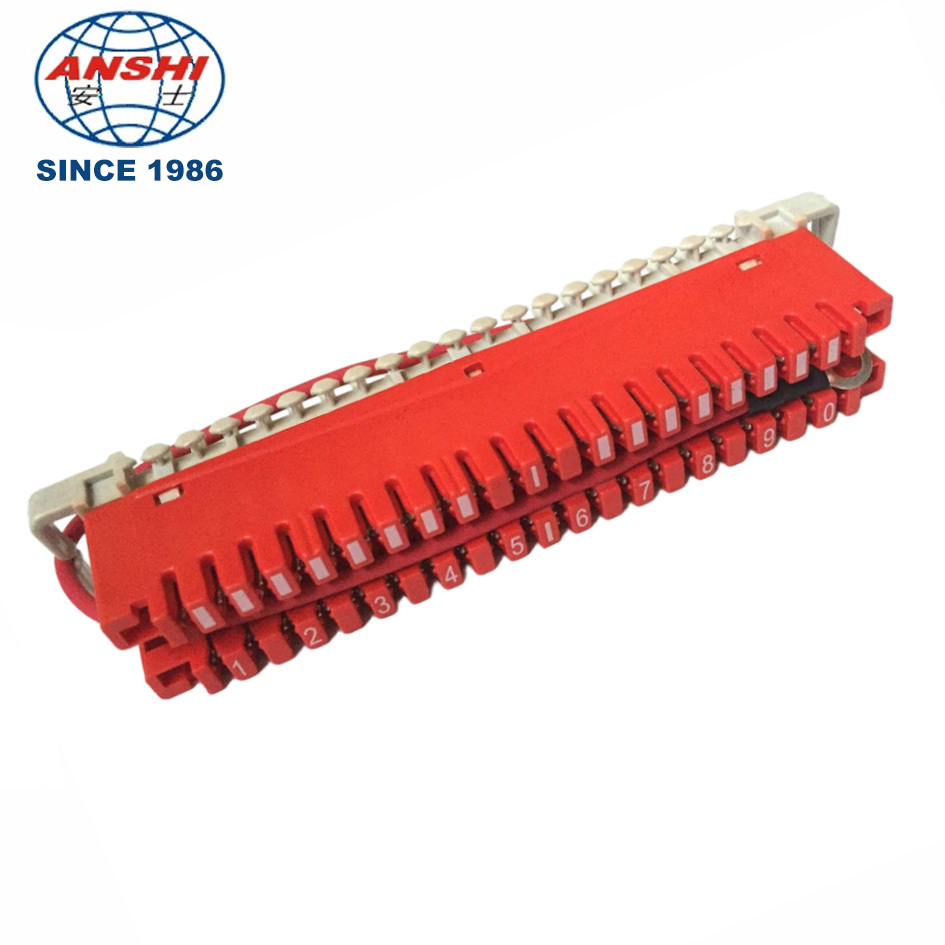

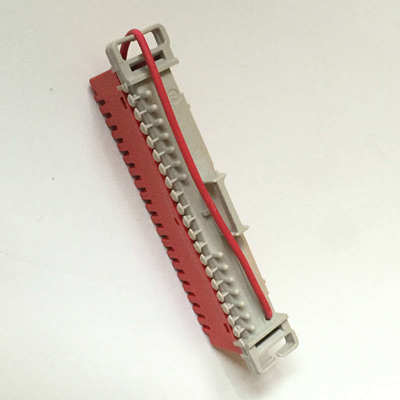

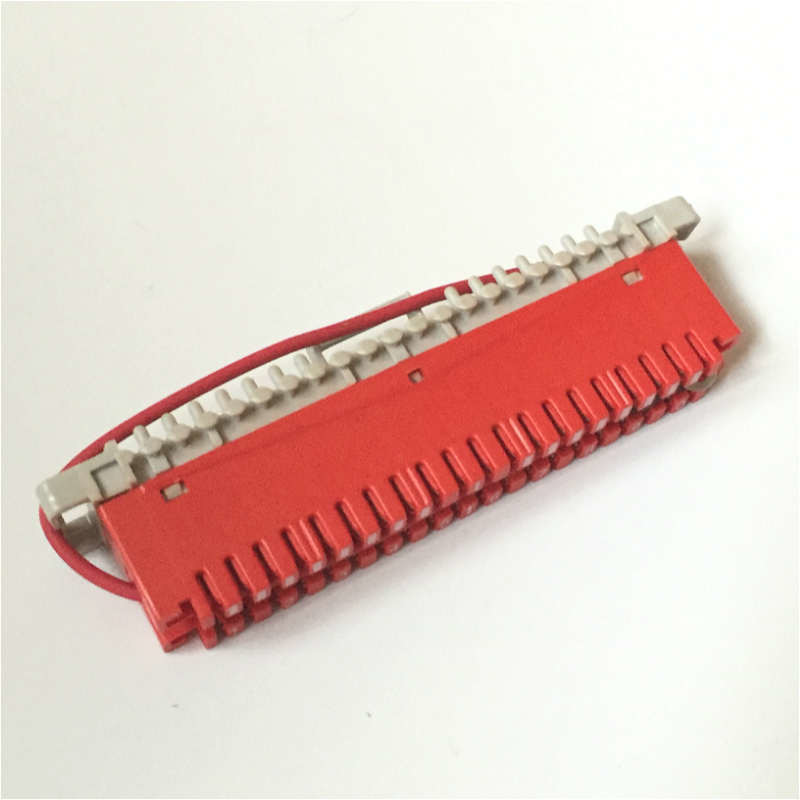

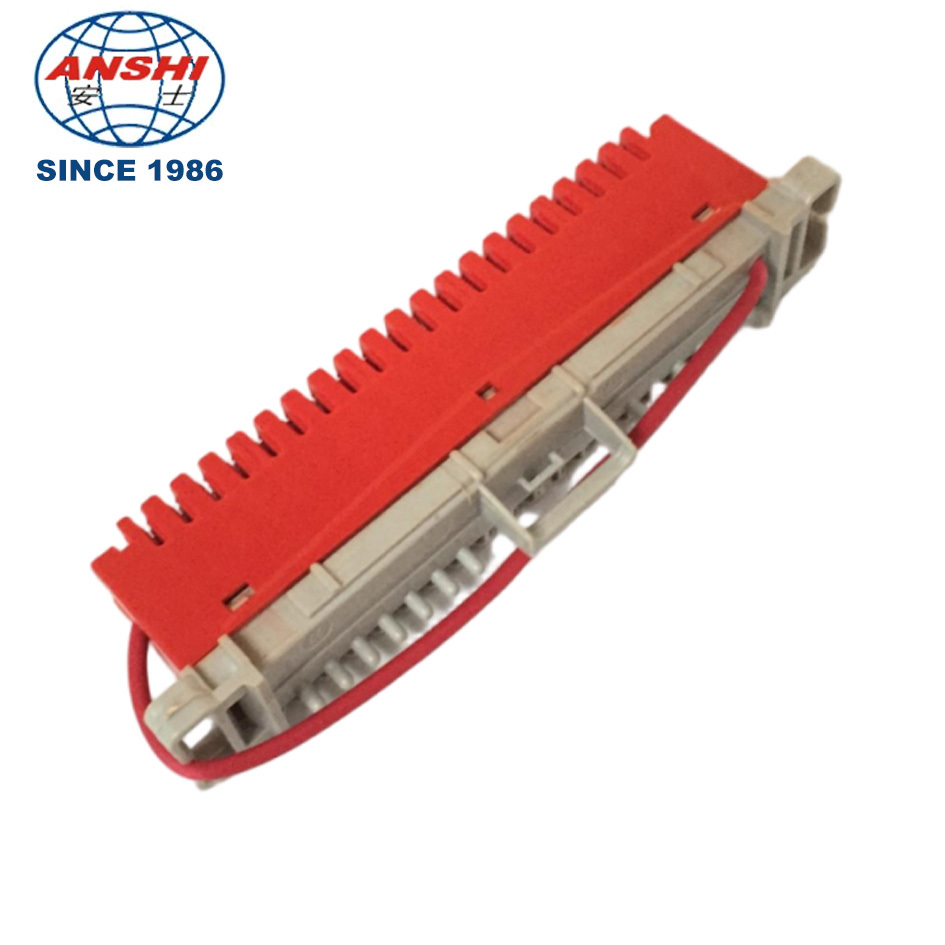

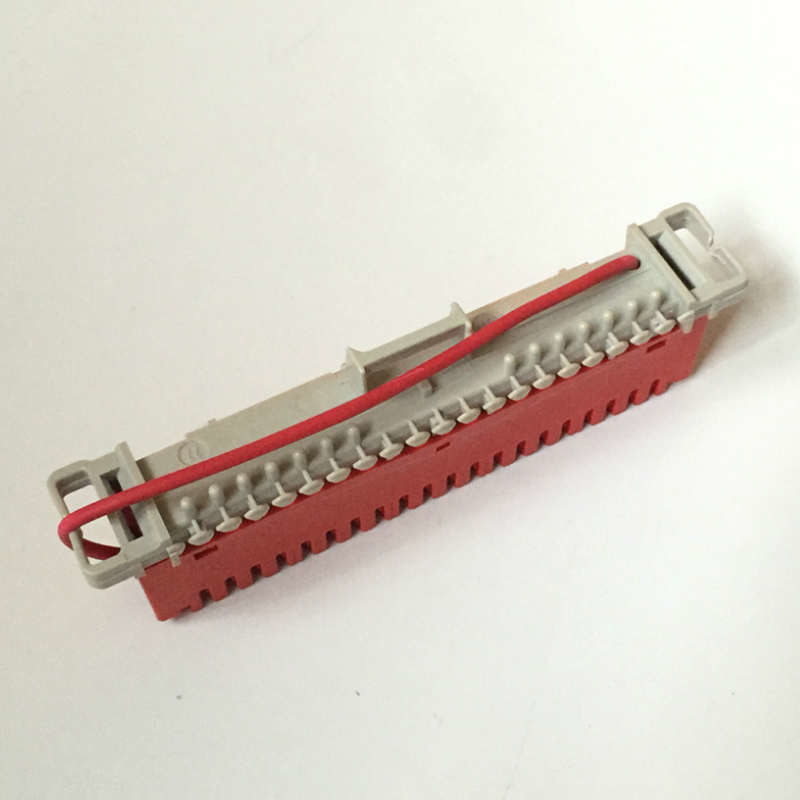

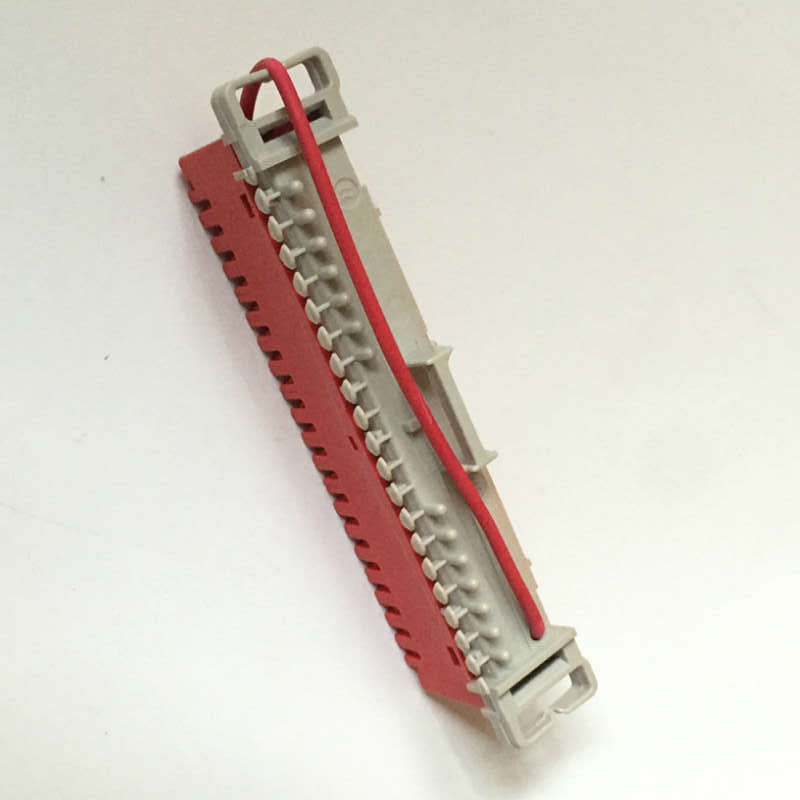

10 Pair Back Mount LSA Earth Krone Connection Module with Earth Grounding Cable
KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
Quick Detail
- Material: PBT or ABS(UL94V-0)
- Contact: Phosphor Bronze
- Silver Plating: 0.175μm 0.5 μm, 1.25 μm, 5 μm
- Can be installed on krone type stainless steel back mount frames
- Available with 50pair block tag and 100pair block tag
- For mounting on MDF, racks, profile bracket, indoor and outdoor distribution box, cross connection cabinets
Available Types:
- Clamp
- Orbit
-
-
Applications
High speed LAN and WAN systems, used to connect the Telecom and Data wires with punch down tools.
Specifications
| Mechanical Performance | |
|---|---|
| Insertion force | 40~75N |
| Pull Out Force | F≥25N(axial) F≥7.5N(radial) |
| IDC Life | 200 times(20-26 AWG Solid wire) minimum |
| Copper Conductor Diameter | Φ0.4~Φ0.8(mm) |
| Environment Characteristic | |
| Storage Temperature | -40 to 70°C |
| Operating Temperature | -10 to 60°C |
| Relative Humidity | 95%, non-condensing |
| Electrical Performance | |
| Insulation resistance | 1000 Mohms minimum |
| Contact resistance | 7 mohms maximum |
| Dielectric intensity | AC 1000 Vrms 50Hz or 60Hz in 60s |
Why Choose Us
- 40 years manufacturing experience
- OEM/ODM available
- Steady product quality
- Strict quality control
- Strictly conform to CE, ROHS, UL certificates
- Quick delivery time
