RACK MOUNT PATCH PANEL 24 PORT RACK MOUNT PATCH PANEL 19 INCH CAT6 UTP

Place of Origin	ZHEJIANG, CHINA
Brand Name	ANSHI
Certification	SGS, DAS, ISO9001
Model Number	XL-4017
Minimum Order Quantity	10PCS
Price	$8~$16
Packaging Details	1pc/Box, 25 Boxes/Carton
Supply Ability	5000 Pieces Per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	Cold Roll Steel	Color	Black
Category	CAT6 UTP	Size	19'', 1U
Type	110 IDC	Application	Networking; Cabling
Highlight	1u 24 port patch panel , 50 port voice patch panel

Leave a Message

Product Description

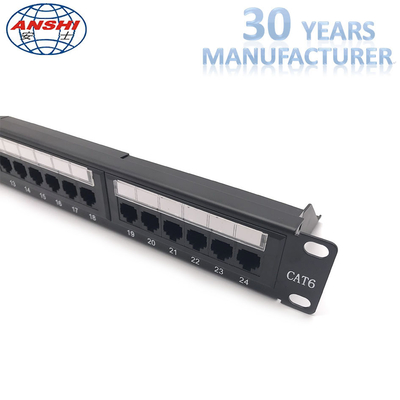

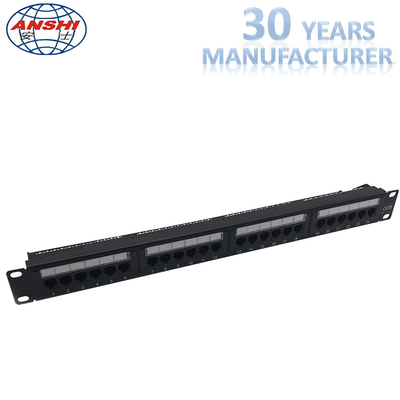

RACK MOUNT PATCH PANEL 24 PORT RACK MOUNT PATCH PANEL 19 INCH CAT6 UTP

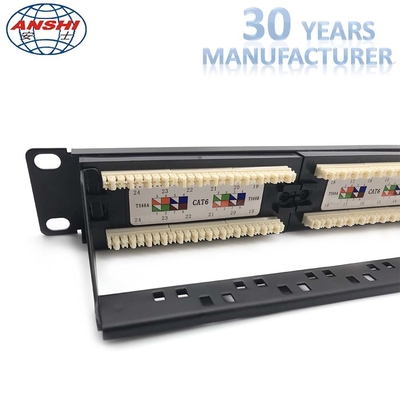

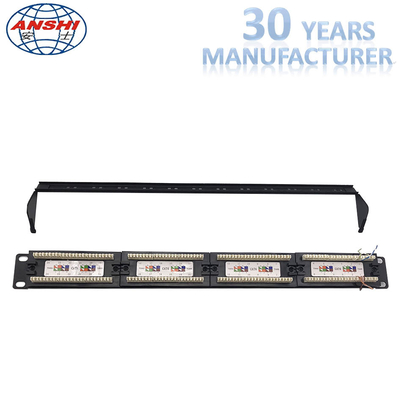

19 inch 1U RJ45 CAT6 Unshield UTP 110 IDC Rack Mount Patch Panel with Cable Manager

Other Specs:

1) CAT5E/CAT6/CAT6A

2) 1U 24 Port or 2U 48 Port

3) UTP or FTP/STP

4) 110 IDC / KRONE IDC / Dual IDC (Both for 110 +Krone IDC)

Standard Requirements

Meets ANSI/TIA/EIA-568-B.2 Category 6 requirements
Meets TIA/EIATSB-40
Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
Meets CENELEC Generic Cabling Standard EN50173-1:2002

Material Specifications

Housing: 0.06" (1.6mm) thickness steel
Cover: 0.039" (1mm) thickness steel
PCB (Printed Circuit Board): FR-4 0.06" (1.6mm) thickness, 2 layers
Contacts: 0.018" (0.45mm) Phosphor bronze with 50 micro inches (1.27 micron) gold plating on contact area
IDC: PC UL94V-0

Electrical Characteristics

Standard	According to UL1863
Current Rating	1.5A Max
Voltage Rating	150V
Contact Resistance	20m-ohm
Insulation Resistance	500M-ohm
Dielectric Withstand Voltage	1000V AC RMS, 60Hz/min
