RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins

  • RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins
  • RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins
  • RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins
  • RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins
  • RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, ISO9001, DAS
Model Number AS-KEY-D8E
Document 180 degree CAT5e UTP Keysto...ew.pdf
Minimum Order Quantity 100 PCS
Price 0.26-0.6
Packaging Details 1 PC/BAG, 100PCS/INNER BOX
Payment Terms T/T
Supply Ability 35000 Pieces per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pin Phosphor Bronze Plating Gold Plating, General Is 3u''
Jack Type RJ45 Color Can Be Customized,
Category CAT6 Cat6a Material PC+Phosphor Bronze
Highlight

toolless keystone jack

,

rj45 shielded jack
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
100% Pass Fluck Test RJ45 CAT6/CAT6a UTP 180 Degree Keystone Jack Dual IDC
100% PASS FLUKE TEST RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack
FLUKE for CAT6: 7.2dB

RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins 0

Key Features
  • Various information modules provide multiple choices for wiring system
  • Design exceeds standard requirements for superior performance
  • Color-coded units for easy identification and network management
  • Versatile configuration to meet various work allocation requirements
Certifications & Standards
  • Meets FCC parts 68
  • ANSI/TIA/EIA-568B
  • ISO/IEC 11801
  • ETL verified EIA/TIA T568B: Cat. 6 channel link
Technical Specifications
Category Specification
Physical Properties
  • IDC connector accepts 22-26 AWG solid wire
  • 50-micron inch gold plate over 100-micron inch nickel contacts
  • High impact flame retardant plastic housing (UL94V-0 rated)
  • Compatible with 110 punch down and Krone tools
Mechanical Properties
  • Plug insertion life: 750 cycles
  • Plug retention force: 30lbs
Electrical Properties
  • Current rating: 1.5A
  • Insulation resistance: 500M Ohms minimum
  • Contact resistance: 20 Milli-ohms maximum
  • DC resistance: 0.1 Ohms maximum
  • Data transmission rates up to 250Mbps

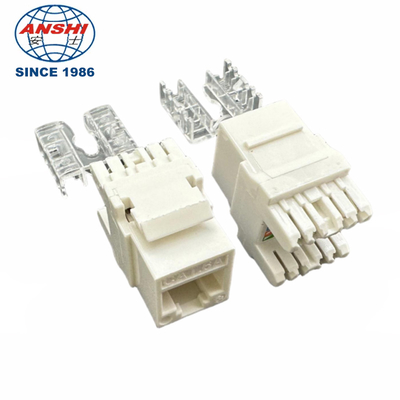

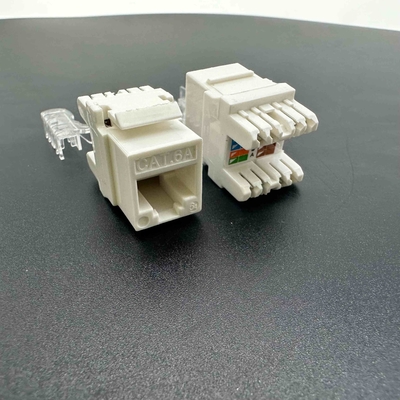

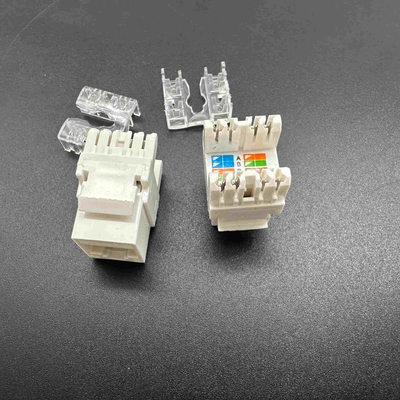

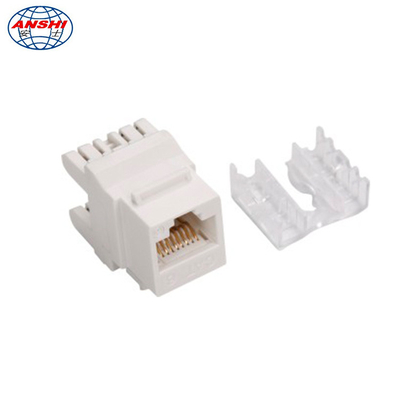

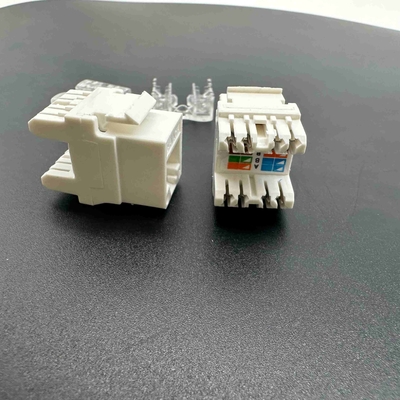

Product Image

RJ45 180 degree CAT6 CAT6A UTP Keystone Jack with Gold Plated Phosphor Bronze Pins 1

Tags:

toolless keystone jack

rj45 punch down jack

rj45 shielded jack
