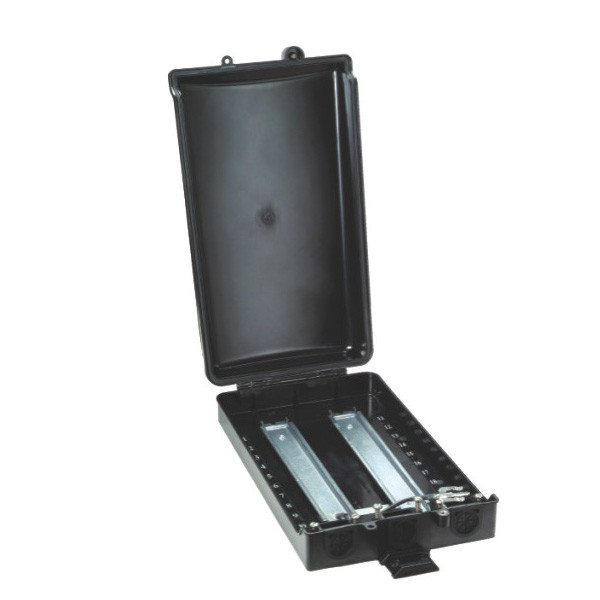

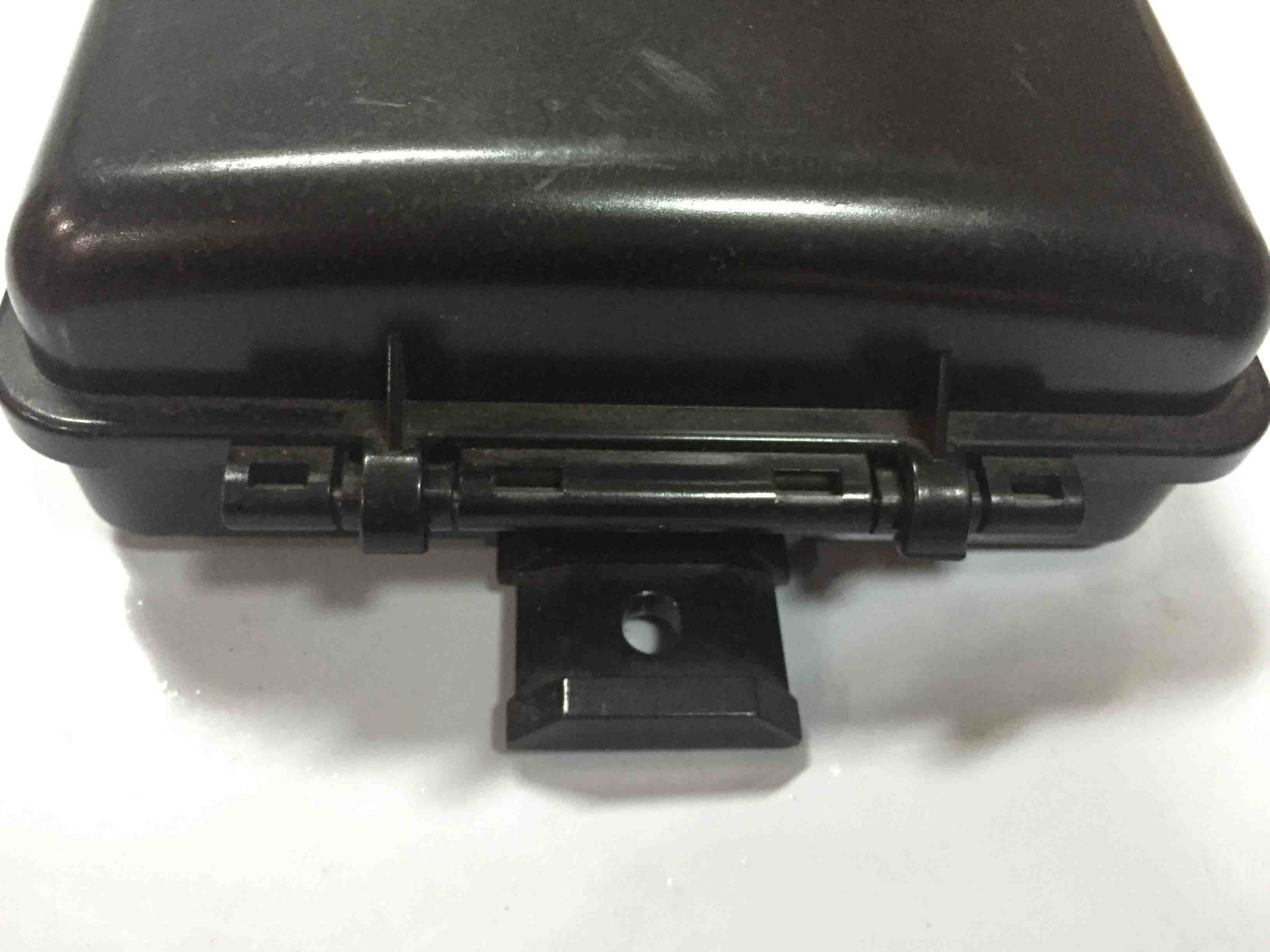

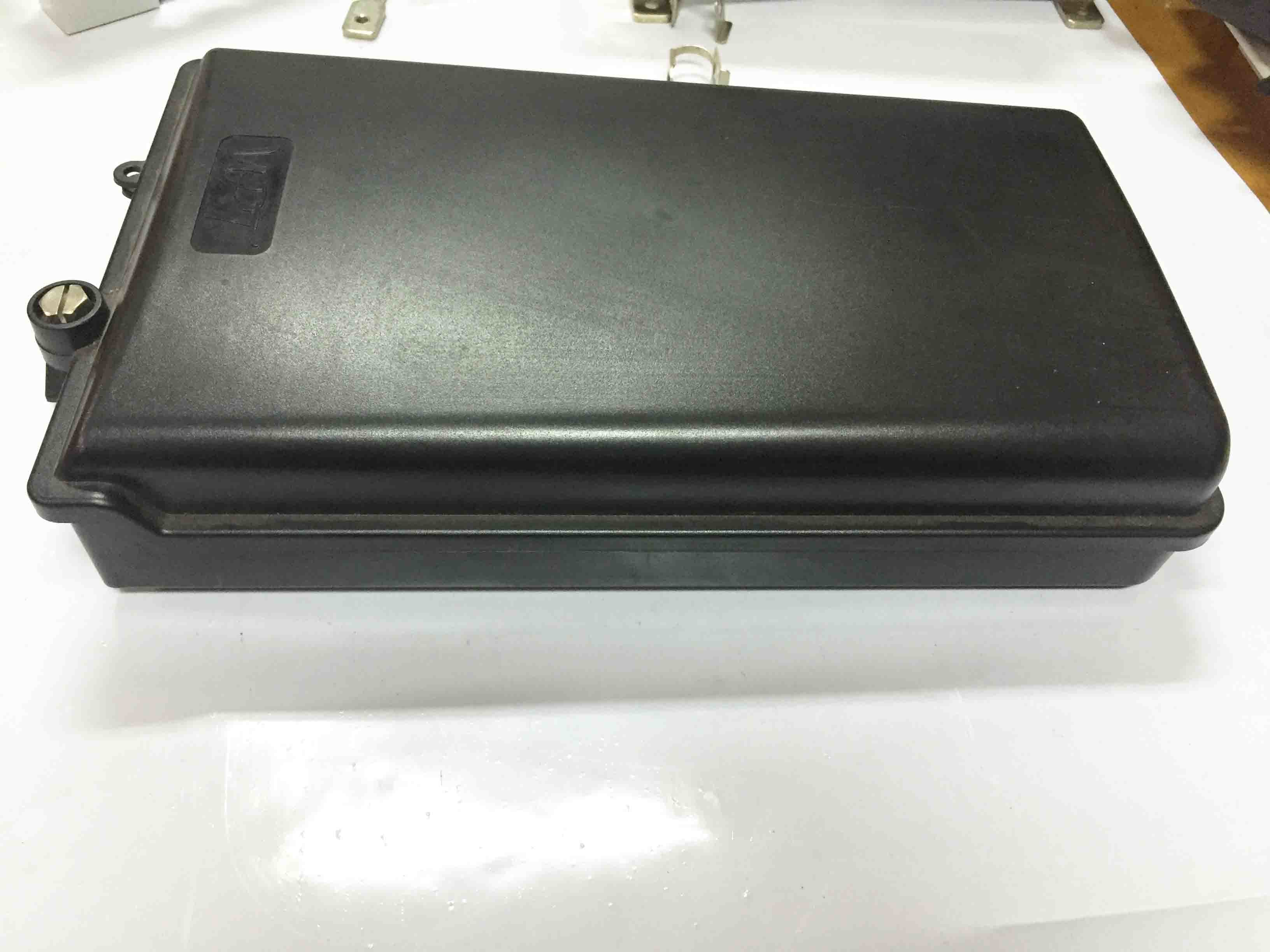

IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module

IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module

    • IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module
    • IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module
    • IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module
    • IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module
    • IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module
  • IP55 STB Module Without Protection , Indoor / Outdoor 20 Pairs VX Module

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: SGS, ISO9001
    Model Number: AS-STB-BOX-20-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Negotiable
    Supply Ability: 10000PCS/WEEK
    Contact Now
    Detailed Product Description
    Material: ABS Capacity: 10
    Protection Level: IP55 GDT: With Or Without
    Environment: Indoor Or Outdoor External Size: 248*210*70

    20 pairs Subscriber Terminal Block STB Drop Wire distribution box without protection



    Terminal Housings are a family of enclosures that may be used to environmentallyprotect 10, 15, 20, 25 or 30 terminal blocks. Each housing includes a standard DIN rail for mounting terminal blocksalong with all grounding hardware. A sufficient amount of room is provided for making drop wire terminations while thehousing features a small, compact and visually appealing design. Housings may be ordered with or withoutterminals, pre-stubbed or without stub wiring. Rubber grommets are included at all drop wire cable entry and exit ports.



    The STB module provide a connection point between an exchange-side cable pair and
    a distribution pair. It incorporates a 10-point plug in module to provide continuity
    and a range of other options.


    Multi-Serivce terminal housings are especially functional in that up to 20 pairs may be terminated inside the enclosure while up to 200 pairs may be “looped through”, a technique that eliminates the need for an additional joint or closure in close proximity to the terminal housing.


    Features
    Rugged, compact design.
    Molded from high impact and UV resistant plastic.
    Lightweight and cosmetically appealing.
    All metal parts of non-corrosive materials
    All bonding and grounding hardware included.

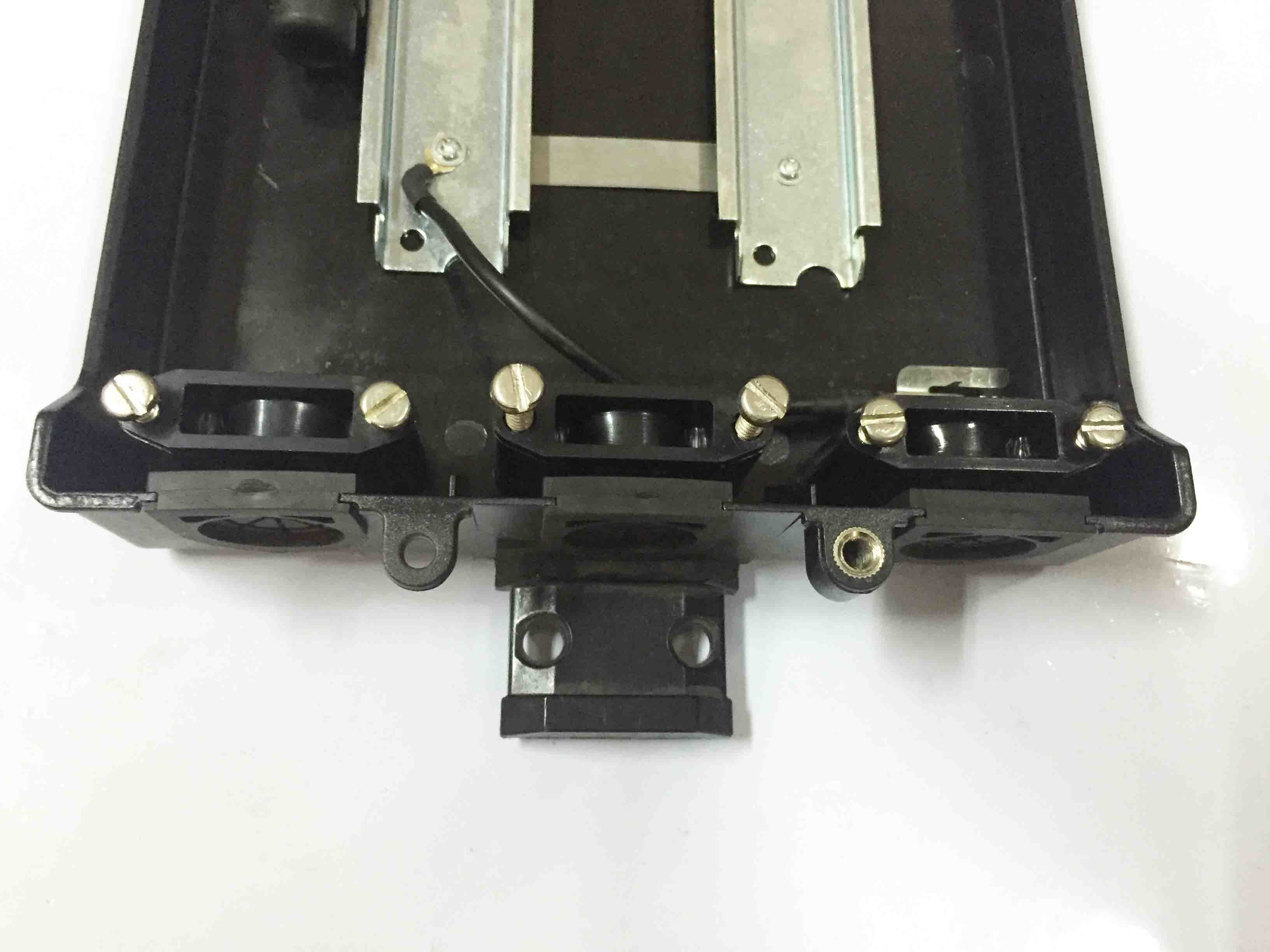

    Rubber grommets included for all cable entry/exit ports.

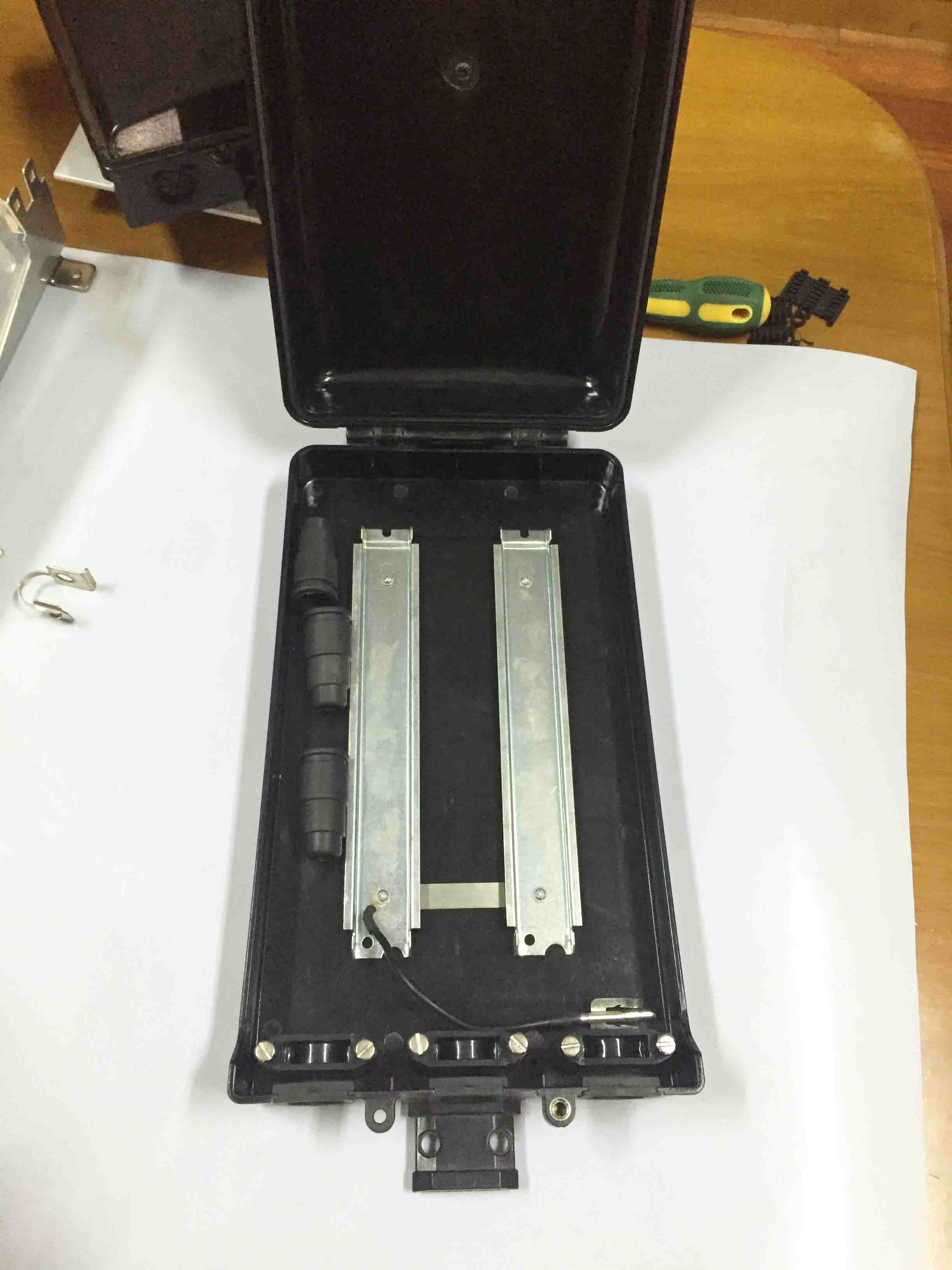

    Standard DIN rails included.
    DIN rail doubles as an earth point.
    Easy access to both sides of the terminal blocks.
    Minimum twenty year life cycle tested.
    Configurations
    Fully populated, protected or unprotected terminals are preinstalled and cable ready.





    It is especially recommended for:
    1. Outdoor connections where the enviromental conditions are extremely agressive.
    2. Terminations where user development characteristics require future flexibility in terms of the type of protection or filtering capabilities.
    Current conducting capacity
    20 A, 10 A per conductor for 10 minutes at least, without causing deformation to the module
    Insulation resistance
    Dry atmosphere: >1010 Damp atmosphere(ASTM D618, procedure F): >1010 Salt fog:(ASTM B117) >109
    Immersion in water: (15 days in 3% NaCl solution) TELCORDIA TR-NWT-000975 (Formerly Bellcore)>109
    Contact resistanceRmaterial + Rbridge contacts + Rwire contacts <10 m
    Increase in contact resistanceAfter climatic tests: <2.5 m After 50 reinsertions: <2.5 m
    Dielectric strength >3,000 Vdc for 1 minute
    Mechanical characteristics
    Protector ground contactTinned hard brass Continuity contactTinned hard brass
    Plug-in module bodyFlame retardant (UL94) fiber-glass reinforced polycarbonate
    Plug-in module sealantGel O ring EPDM
    Internal Configuration Continuity AS STB 260 V GDT230 V GDTAS-STB-P
