14 Pairs Stb Subscriber Terminal Block For Indoor / Outdoor Can Installation

Place of Origin China
Brand Name ANSHI
Certification SGS, ISO9001
Model Number AS-STB-BOX-20-1
Minimum Order Quantity 500
Price Negotiable
Supply Ability 10000PCS/WEEK

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS Or PC+ABS Capacity 20
Protection Level IP55 GDT With Or Without
Environment Indoor Or Outdoor External Size 380*185*113
Color Grey Application MDF/CCC/DP Box
Highlight

telecom distribution box

,

stb module

Leave a Message
Product Description

14 pairs STB Drop Wire distribution box for Subscriber Terminal Block PC+ABS



Product Description



Main Features

1) Made of highly impact resistant ABS+PC

2) Flammability according to UL 94-V0

3) Protection IP 55

4) Smallest distribution box designed for outdoors

6) Easy operation and wide range of wire



Technical Parameters

1)  Working temperature: -20℃ ~ 40℃

2)  Storage temperature: -25℃ ~55℃

3)  Relative humidity: ≤85%(+30℃)

4)  Atmospheric pressure: 70kPa ~106kPa

5) Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

6) The labels are clear and complete.



Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ



Contact resistance between contacts: under normal ambient conditions, the contact resistance between contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ



Contact resistance between conductor and contact: under normal ambient conditions, the contact resistance between contacts ≤3 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤2 mΩ. And after terminating for 200 times, the increasing resistance ≤2 mΩ.



Dielectric strength: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts is able to withstand an AC voltage of of 1000V (virtual value) at 45Hz~60Hz sinowave for 1 minute, without spark over and flying arc



Gas tight performance: contact touches the conductor at both sides, and thus forming the gas tight area, while the area of gas tight occupies ≥50% of the touched area on each side.



Conductor diameter range: 0.32mm-0.6mm, while insulation ≤ 1.4mm

Pulling strength:≥25N while pulling from the vertical side of the contacts

Flame retardant performance: all plastic parts are flame retardant, reaching grade of UL FV0

Life circle: ≥200 times



Outdoor DP Box Plastic for STB Modules 20pairs



Empty distribution box for 1pair dropwire module(STB module),offerring good connection environment for telecommunication.

Material:PC,with steel rails.

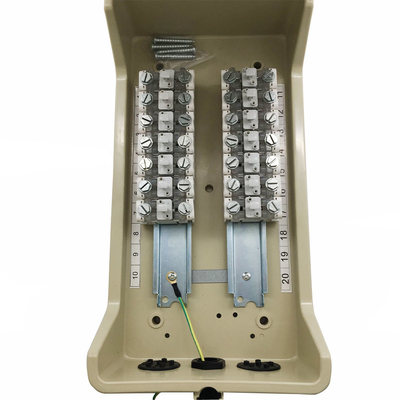

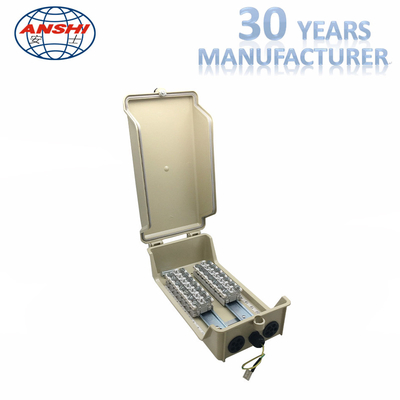

The subscriber connector unit consists of a rectangular box base with a cover and a connection module secured to the base.The top and base are hinged together, and the top is easily removable to facilitate working in cramped conditions.The cable grommets for wire entry and exit may be adjusted to conductor size and are also removable.A metal screw is provided for grounding purposes.



Application for replacing Tyco VX-SB subscribe connector unit terminal blocks,Connecting 1 pair module without protection,module with surge protection (gas-discharge instrument with surge protection to 230V) and module with overvoltage and overcurrent (overvoltage to 230V, and by two resistors PTC, which protect from the overcurrent).
