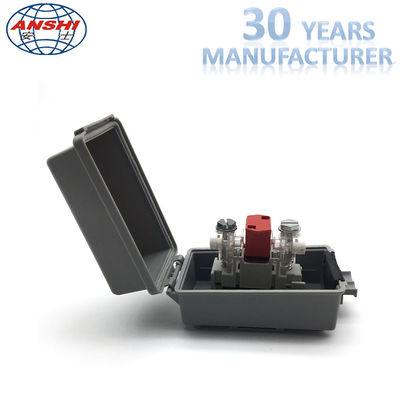

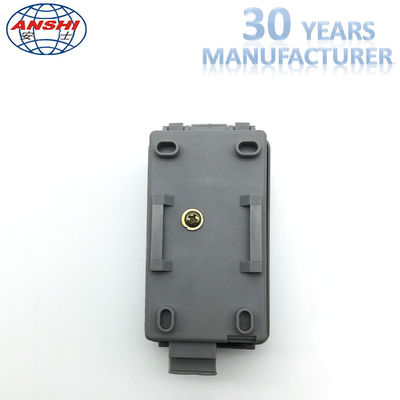

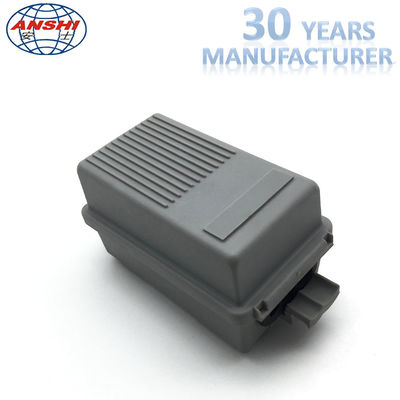

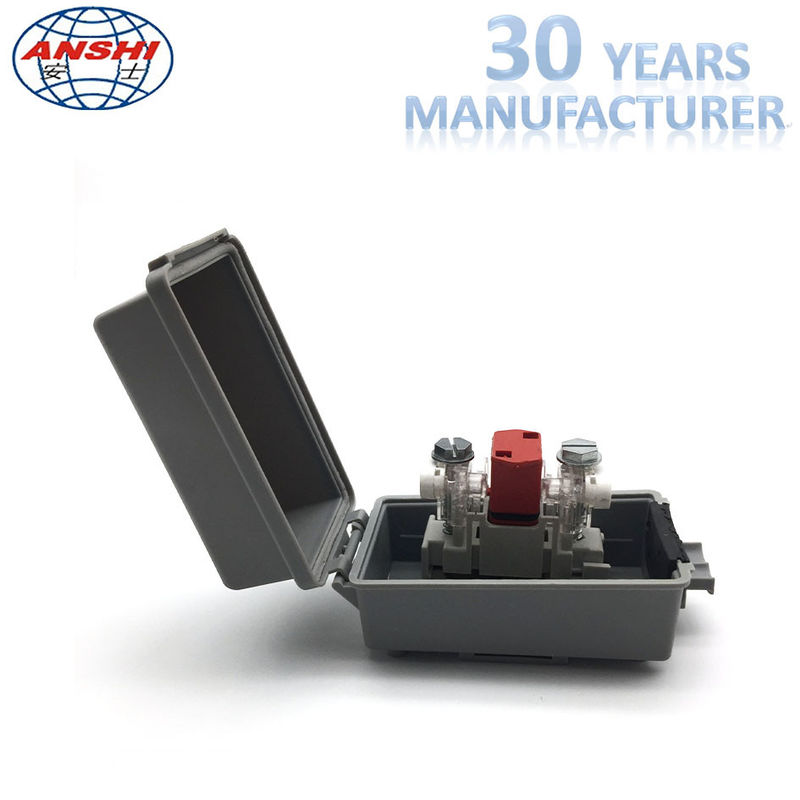

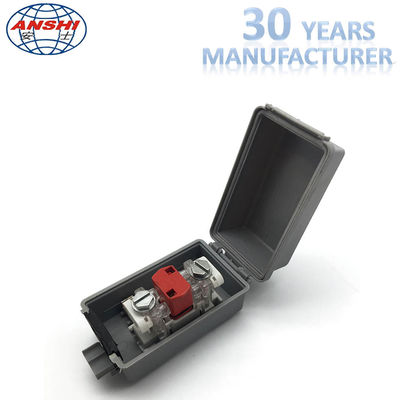

Grey Nylon Material 1 Pair Subscriber Terminal Block For STB Module With VX Module

  • Grey Nylon Material 1 Pair Subscriber Terminal Block For STB Module With VX Module
  • Grey Nylon Material 1 Pair Subscriber Terminal Block For STB Module With VX Module
  • Grey Nylon Material 1 Pair Subscriber Terminal Block For STB Module With VX Module
  • Grey Nylon Material 1 Pair Subscriber Terminal Block For STB Module With VX Module
Place of Origin China
Brand Name ANSHI
Certification SGS, ISO9001
Model Number AS-STB-BOX-1
Minimum Order Quantity 500 pcs
Price Negotiable
Supply Ability 10000PCS/WEEK

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1 Pair STB Module Box Capacity 1
GDT With Or Without Environment Indoor Or Outdoor
Dimension 98.50*50*52.50mm Installation Wall Mount
Highlight

telecom distribution box

,

stb module
Leave a Message
Product Description

Grey Nylon Material 1 Pair Distribution box for STB Module with VX Module



Quick Detail:



1. Outdoor DP Box Plastic for STB Modules 1pairs

2. Material:Nylon

3. Cable grommets for wire entry and exit is for waterproof.

4. For subscribe connector unit unprotection and protection over voltage and over currence.

5. With snap in lock

6. Application:Ourdoor or indoor



Description:



Outdoor DP Box Plastic for STB Modules 1pairs



Empty distribution box for 1pair dropwire module(STB module),offerring good connection environment for telecommunication.
Material:PC,with steel rails.



The subscriber connector unit consists of a rectangular box base with a cover and a connection module secured to the base.The top and base are hinged together, and the top is easily removable to facilitate working in cramped conditions.The cable grommets for wire entry and exit may be adjusted to conductor size and are also removable.A metal screw is provided for grounding purposes.



Application for replacing Tyco VX-SB subscribe connector unit terminal blocks,Connecting 1 pair module without protection,module with surge protection (gas-discharge instrument with surge protection to 230V) and module with overvoltage and overcurrent (overvoltage to 230V, and by two resistors PTC, which protect from the overcurrent).



Specifications :



Mechanical Performance Plastic material: Nylon
Contact material: Phosphor Bronze.
Surface Plating Silver(0.5um-5um)
Earth bar: Phosphor Bronze.Surface Plating nickel
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :5 mohms maximum
Dielectric intensity: 1200V DC 60s can't spark over and haven't fly arc
