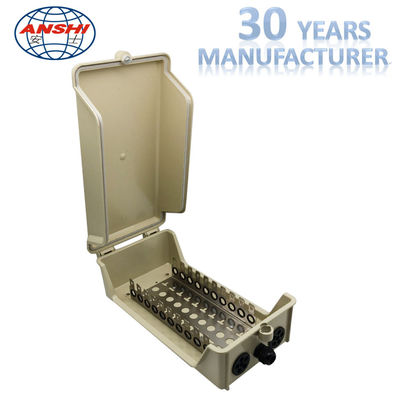

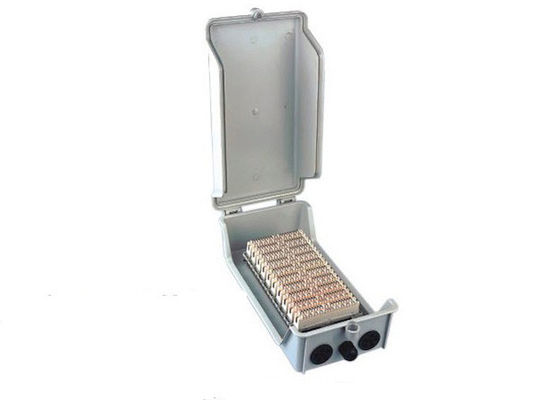

Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules

Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules

    • Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules
    • Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules
    • Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules
    • Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules
  • Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules

    Product Details:

    Place of Origin: ZHEJIANG, CHINA
    Brand Name: ANSHI
    Certification: ISO 90001, SGS, DAS
    Model Number: AS-DB100W

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Negotiable
    Supply Ability: 5000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product: Copper Outdoor Termination Box Material: ABS Or PC&ABS
    Color: White Type: 100pairs
    Lock: Key Size: 380*185*113mm

    Cable Distribution Box 100 Pair Outdoor Key Lock Distribution box for LSA modules

    Features:
    1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
    2) Waterproof box, suitable for outdoor wire distribution
    3) Material of house: ABS or ABS + PC fire-resistant
    4) Including stainless steel mounting frame, but modules to be ordered separately
    5) Including 1 back mount frame(10ways)
    6) Compatible with Krone modules





    Specifications:

    1.Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
    2.The modules are compatible with KRONE LSA-PLUS modules.
    3.The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
    4.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
    5.Internal diameter of connection wire: 0.4-0.6 mm
    6.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard

    7.Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections
    8.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition
    9.Intermediate resistance: no more than 3m ohm under standard examination condition
    10.Dielectric strength: according to industry standard
    11.Specification:10-30 pairs,Waterless,every specification has connection or disconnection types
    12.Life: durability 200 cycles
    Outdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA ModulesOutdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA ModulesOutdoor Key Lock Cable Distribution Box 100 Pair Waterproof For LSA Modules
