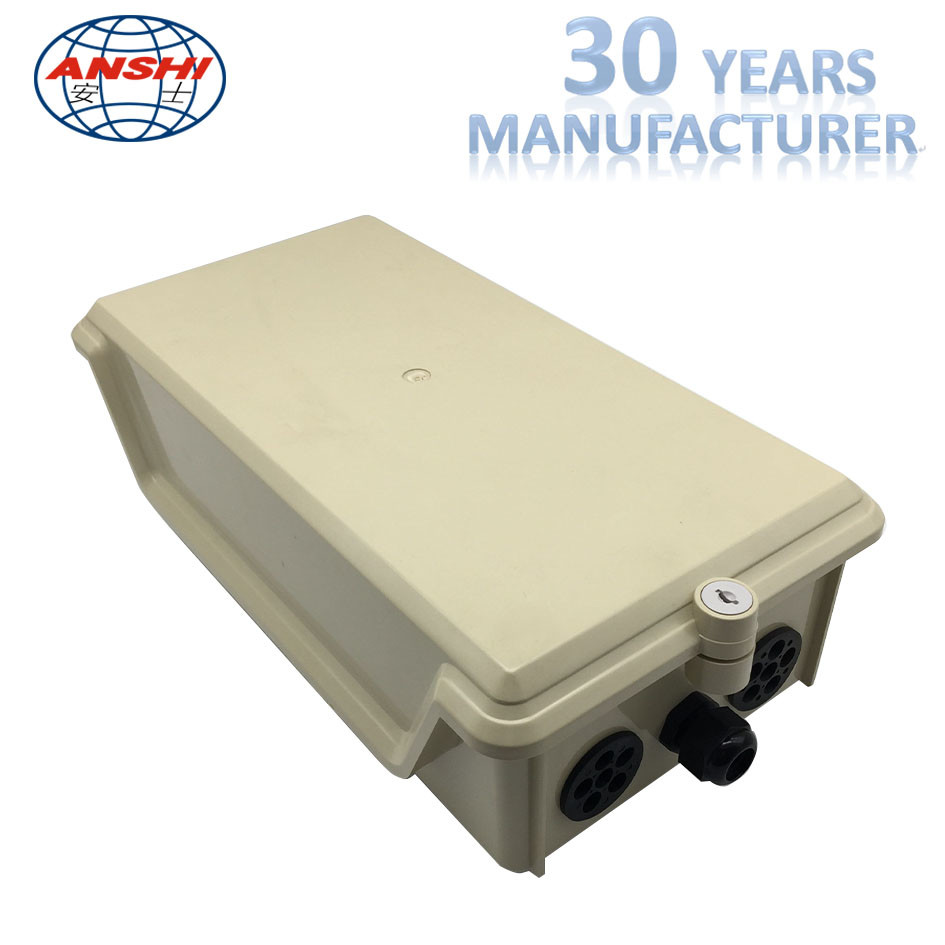

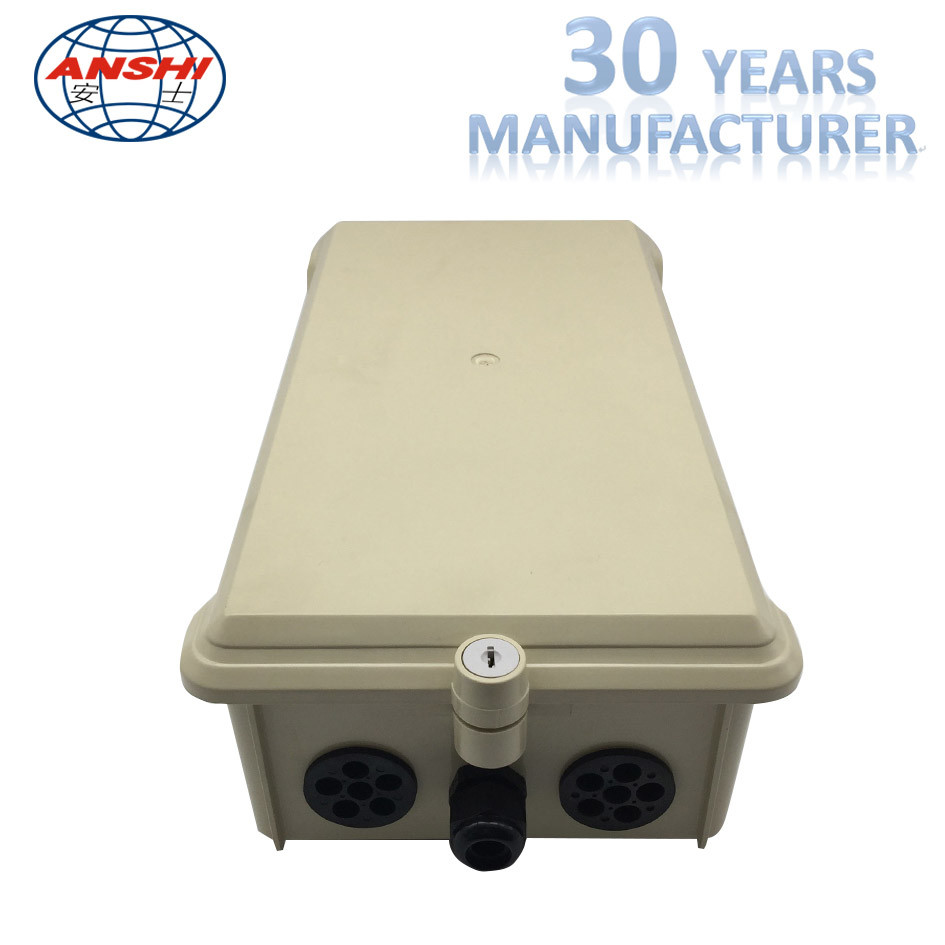

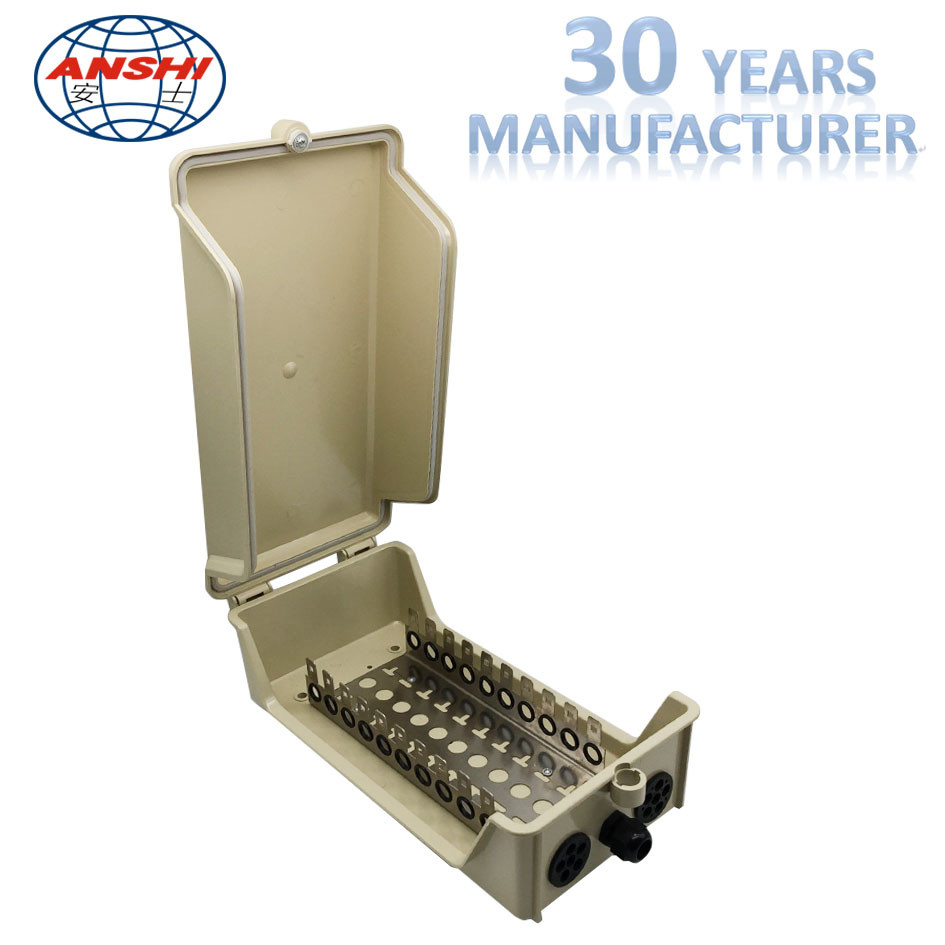

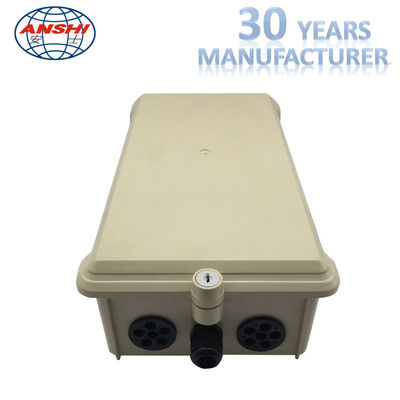

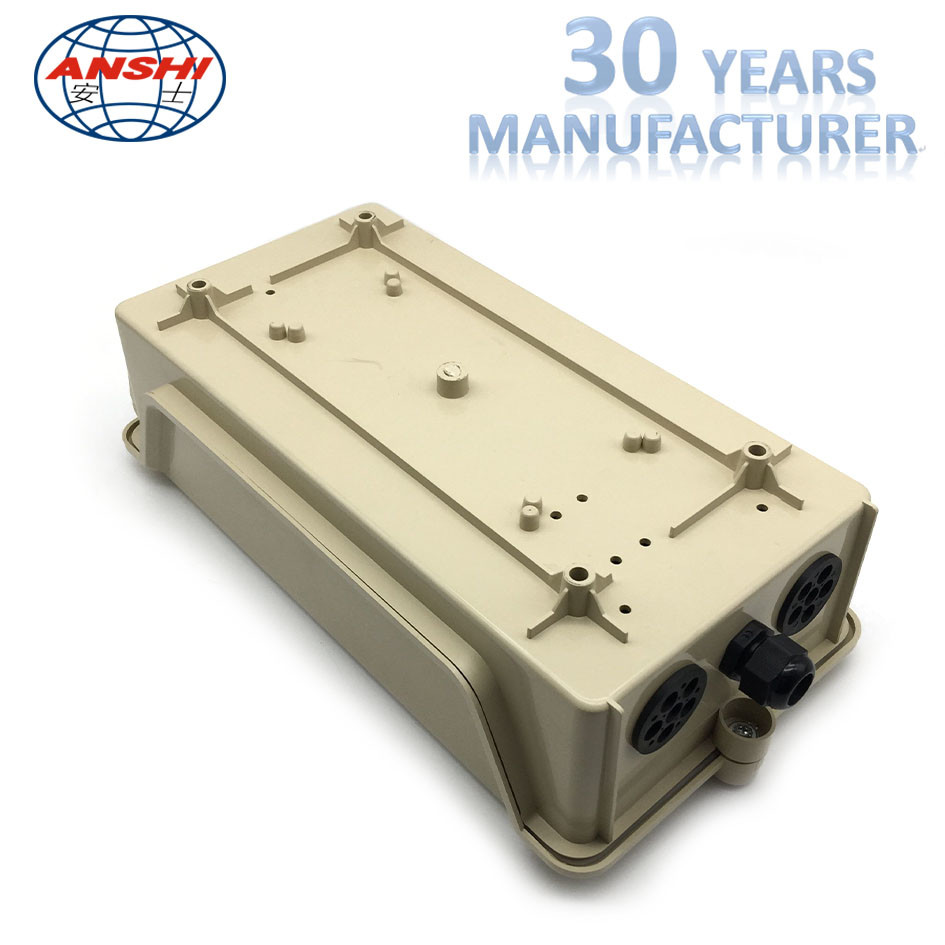

Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box

Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box

    • Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box
    • Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box
    • Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box
    • Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box
  • Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box

    Product Details:

    Place of Origin: ZHEJIANG, CHINA
    Brand Name: ANSHI
    Certification: ISO 90001, SGS, DAS
    Model Number: AS-DB100W

    Payment & Shipping Terms:

    Minimum Order Quantity: Can Discuss
    Price: Negotiable
    Supply Ability: 5000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product: Copper Outdoor Termination Box Material: ABS Or PC&ABS
    Color: White Type: 100pairs
    Lock: Key Size: 380*185*113mm

    Outdoor Cable Telephone Distribution Box 100 Pair Waterproof For LSA Modules

    Features:
    1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
    2) Waterproof box, suitable for outdoor wire distribution
    3) Material of house: ABS or ABS + PC fire-resistant
    4) Including stainless steel mounting frame, but modules to be ordered separately
    5) Including 1 back mount frame(10ways)
    6) Compatible with Krone modules




    Specifications:

    1.Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
    2.The modules are compatible with KRONE LSA-PLUS modules.
    3.The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
    4.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
    5.Internal diameter of connection wire: 0.4-0.6 mm
    6.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard

    7.Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections
    8.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition
    9.Intermediate resistance: no more than 3m ohm under standard examination condition
    10.Dielectric strength: according to industry standard
    11.Specification:60-100 pairs,Waterless,every specification has connection or disconnection types
    12.Life: durability 200 cycles


    Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box

    Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box

    Outdoor Cable Telephone Distribution Box / 100 Pair Weatherproof Db Box
