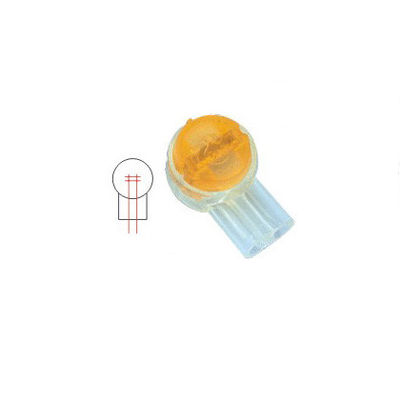

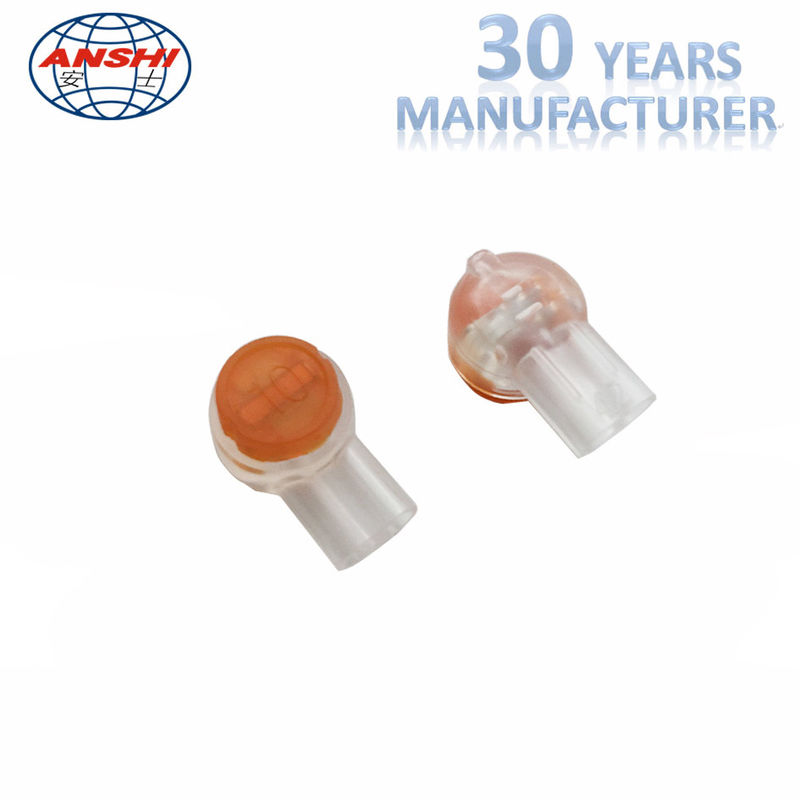

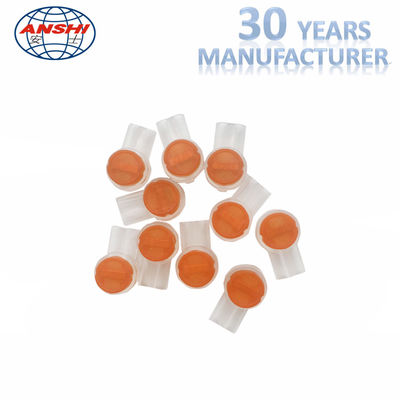

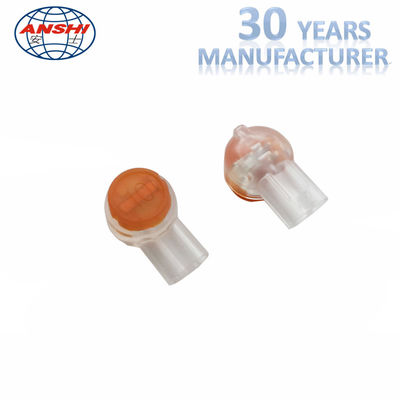

Double Pin Scotchlok Wire Connectors , Yellow Lid 3M Scotchlok UY2 Connector

Double Pin Scotchlok Wire Connectors , Yellow Lid 3M Scotchlok UY2 Connector

    • Double Pin Scotchlok Wire Connectors , Yellow Lid 3M Scotchlok UY2 Connector
    • Double Pin Scotchlok Wire Connectors , Yellow Lid 3M Scotchlok UY2 Connector
  • Double Pin Scotchlok Wire Connectors , Yellow Lid 3M Scotchlok UY2 Connector

    Product Details:

    Place of Origin: CHINA
    Brand Name: ANSHI
    Certification: ISO9001
    Model Number: XL-023UY2

    Payment & Shipping Terms:

    Minimum Order Quantity: 20000
    Price: Negotiable
    Packaging Details: 10000/ctn
    Delivery Time: 1000000pcs/week
    Contact Now
    Detailed Product Description
    Material: PC Inner Diameter: 0.4-0.9
    Maximum Insulation: 2.08 Gender: Female
    Type: Communication Parts Color: Yellow Lid
    Pin: Double Pin Application: Wire, All Electric Area

    UY2 Connector IDC Terminal Block 3M Standard Scotchlok 2 Wire



    Product Description:



    1. Used to connect two wires safely and rapidly with moistureproof.
    2. Applied to the conductors with inner diameter of 0.4—0.9mm
    3. Can connec the cable directly
    4. You need’t to shuck off the covering layer when connecting,it can be compression in one time,junction with organic silicon grease oil sealed ,waterproof and antisepticize
    5. There are UY,UY2,UR,UDW2 type etc



    Double end connector

    End connector for the simple connection of plastic-insulated telecommunications cables in splice closures of types DC and FE, suitable for wire diameters 0.40 – 0.90 mm.

    Supplied: double connector incl. sorting ring



    Item No Maximum insulation Wire Range Item Name
      1.52mm 0.4-0.7mm UY
      2.08mm 0.4-0.9mm UY2
      1.67mm 0.4-0.9mm UR
      2.08mm 0.4-0.9mm UR2
      3.18mm 0.9-1.3mm U1B
      3.18mm 0.5-0.9mm U1R
      4.45mm 0.9-1.3mm UDW2
