xProduct Details
| Application | Overhead Line Accessories | Material | Metal+Plastic |
|---|---|---|---|
| Model | AS-FTTH-ACC-YJS-1 | For Cable Diameter | 8-14mm |
| TYPE | Wedge | Usage | Fitting For ADSS Cable |
| Highlight | adss fiber guy grip tension clamp,Aluminum Pipe tension clamp,skein Dead End span grip |
||
Product Description
Tension Clamp preformed skein Dead End span grip Aluminum Pipe Clamp adss fiber guy grip tension clamp
Feature:
Basic product information

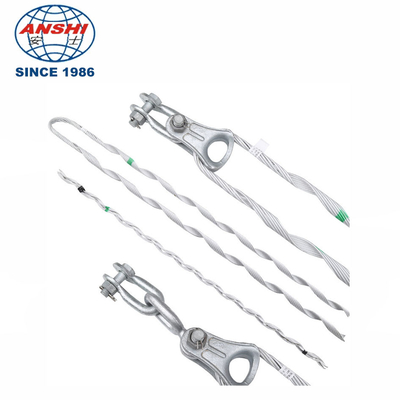

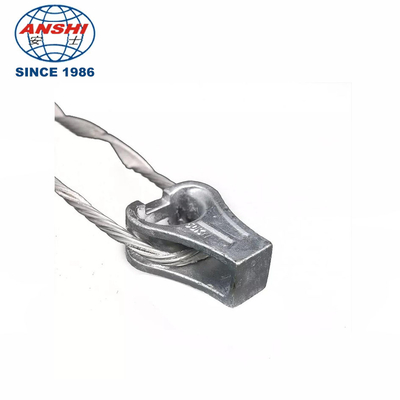

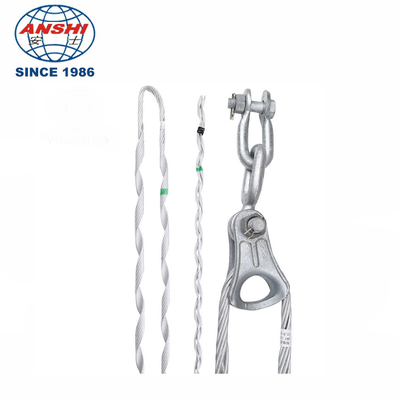

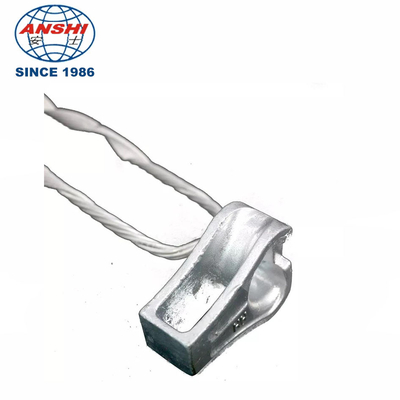

Product Name: ADSS Fiber Optic Cable Small Tension and High Tension Clamp
Product Material: Aluminum Clad Steel Wire
Product components: inner twisted wire, outer twisted wire, heart-shaped ring, U-shaped ring, right angle ring, bolt, nut, closed pin, etc.
Usage conditions: Terminal iron tower, tension iron tower, angle (elevation)>25? The connection between the tower and the connecting tower.
Product Usage:
a. The external twisted wire is directly connected to the tower through connecting fittings such as embedded rings, and bears the load of the line.
b. Internal twisted wires provide certain protection for optical cables.
c. On the premise of not exceeding the lateral pressure strength of the optical cable, it has a strong grip on the optical cable and can withstand a large tension.
d. The grip force on the optical cable shall not be less than 95% of the ultimate tensile strength (UTS) of the optical cable, which is fully suitable for the needs of optical cable installation.
